Coordinate Measuring Machines (CMM)

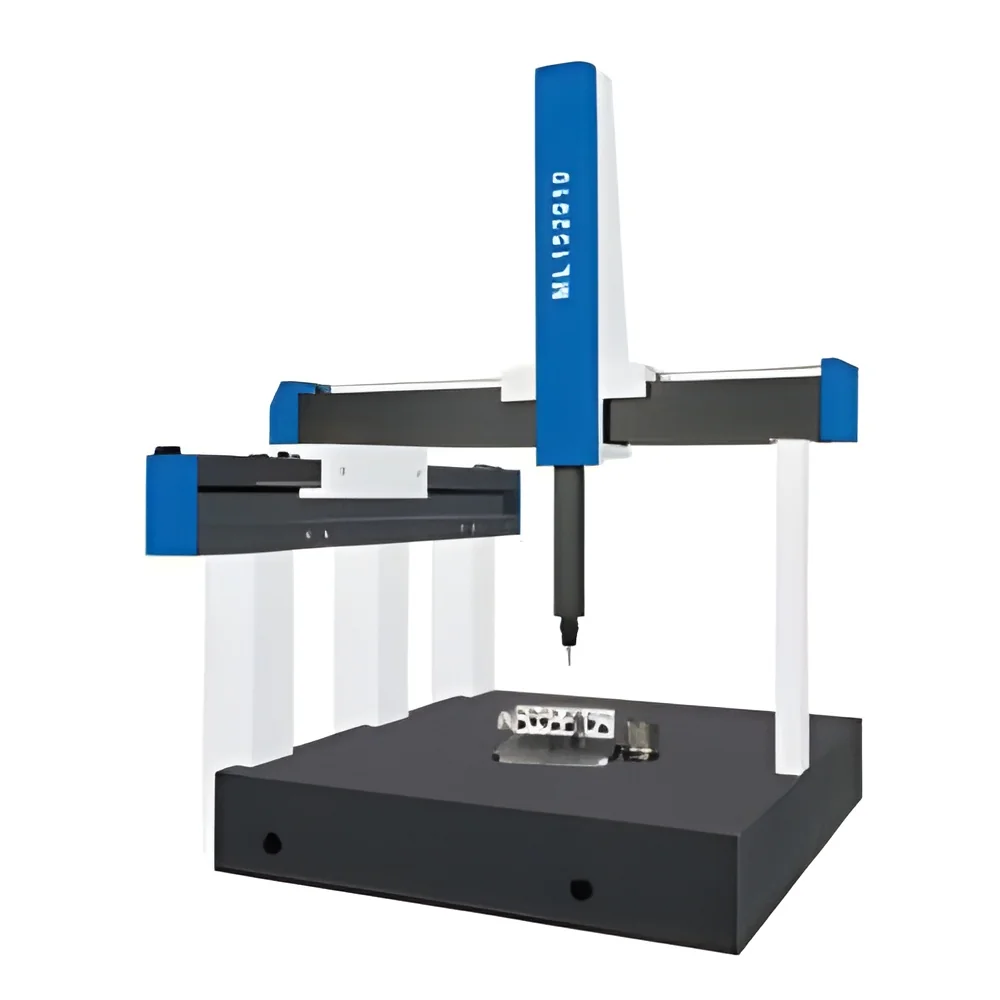

What are Coordinate Measuring Machines (CMM)? Coordinate Measuring Machines (CMM) are precision instruments designed for measuring the physical geometrical characteristics of an object. They can be operated manually or controlled by computer. CMMs are equipped with a probe that touches the object's surface to determine its dimensions and spatial relationships. The data collected can be used for quality control, reverse engineering, and product design. CMMs are widely used across various industries, including manufacturing, aerospace, automotive, and electronics. They are essential for ensuring that parts meet specified tolerances and quality standards. Businesses depend on CMMs to enhance production efficiency, accuracy, and consistency in their products. In the context of industry relevance, the demand for CMMs is driven by the growing emphasis on quality assurance and the need for advanced measurement solutions. 𝗞𝗲𝘆 𝗙𝗲𝗮𝘁𝘂𝗿𝗲𝘀 𝗮𝗻𝗱 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 Coordinate Measuring Machines come equipped with a range of features that enhance their functionality and performance. These machines are designed to cater to various measurement needs and can be tailored to specific applications. Key specifications include: 1. Measurement Range - The range refers to the maximum dimensions the CMM can measure. - Common ranges include 500mm to 3000mm in length. 2. Probe Types - CMMs utilize different probe types for measurement, such as mechanical, optical, laser, and white light. - Each probe type is suited for specific applications, ensuring accuracy. 3. Accuracy - This specification indicates the degree of correctness of the measurements. - Typical accuracy can range from ±1.5 µm to ±5 µm. 4. Repeatability - This is the ability of the CMM to produce the same measurement under unchanged conditions. - Repeatability values are generally within ±1.0 µm. 5. Measurement Speed - The speed at which the CMM can perform measurements affects productivity. - Modern CMMs can achieve speeds of up to 500 mm/s. 6. Software Compatibility - CMMs often come with advanced software for data analysis and reporting. - Compatibility with CAD software is essential for seamless integration. 7. Environmental Conditions - CMMs can function under specific temperature and humidity conditions. - Data not available for specific ranges. 8. Certification - CMMs may require certain certifications to ensure compliance with industry standards. - CE certification is commonly sought for safety and quality assurance. In summary, CMMs are equipped with essential features that cater to the diverse measurement needs of industries. Their specifications determine their performance and suitability for specific applications. 𝗖𝗼𝗺𝗺𝗼𝗻 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 𝗮𝗻𝗱 𝗨𝘀𝗲 𝗖𝗮𝘀𝗲𝘀 Coordinate Measuring Machines play a crucial role in various industries due to their precision and reliability. 1. Aerospace: CMMs are employed to measure complex geometries of aircraft components, ensuring they meet strict safety and performance standards. 2. Automotive: In the automotive industry, CMMs are used for quality control of parts and assemblies, helping manufacturers maintain high levels of accuracy. 3. Electronics: CMMs facilitate the measurement of small electronic components, ensuring they fit into larger systems correctly. 4. Medical Devices: In the production of medical devices, CMMs ensure precision in manufacturing to meet regulatory requirements. 5. Tool and Die: CMMs are essential in tool and die making for checking the accuracy of molds and dies used in production. 6. Industrial Machinery: Manufacturers of industrial machinery use CMMs to verify the dimensions of critical components. 7. Fabrication: In metal fabrication, CMMs help ensure parts are manufactured to the correct specifications. 𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗩𝗮𝗿𝗶𝗮𝗻𝘁𝘀 𝗮𝗻𝗱 𝗦𝘂𝗯𝗰𝗮𝘁𝗲𝗴𝗼𝗿𝗶𝗲𝘀 Coordinate Measuring Machines are available in various configurations to meet the needs of different applications. Bridge CMM Bridge CMMs feature a bridge-like structure that provides stability and accuracy for large measurements. They are ideal for shop floor environments and are commonly used in automotive and aerospace industries. Arm CMM Arm CMMs are portable and designed for large parts measurement. Their flexibility allows for easy access to complex geometries, making them suitable for field applications and quality control. Horizontal Arm CMM This variant is designed for measuring large, heavy components. The horizontal arm design allows for easy access and is commonly used in manufacturing environments. 𝗕𝗲𝗻𝗲𝗳𝗶𝘁𝘀 𝗮𝗻𝗱 𝗔𝗱𝘃𝗮𝗻𝘁𝗮𝗴𝗲𝘀 The use of Coordinate Measuring Machines offers several significant advantages for businesses. 1. Enhanced Accuracy: CMMs provide precise measurements, reducing the risk of errors in production processes. 2. Increased Efficiency: Automated CMMs can perform measurements faster than manual methods, leading to higher throughput. 3. Data-Driven Insights: CMMs can generate detailed reports, helping businesses analyze performance and improve processes. 4. Quality Assurance: Regular use of CMMs ensures that products meet stringent quality standards, boosting customer satisfaction. 5. Cost Savings: By identifying measurement errors early in production, CMMs help reduce waste and rework costs. 6. Versatility: CMMs can measure a wide variety of materials and components, making them adaptable to different industries and applications. 𝗕𝘂𝘆𝗶𝗻𝗴 𝗚𝘂𝗶𝗱𝗲 𝗳𝗼𝗿 𝗕𝟮𝗕 𝗕𝘂𝘆𝗲𝗿𝘀 When sourcing Coordinate Measuring Machines, several key factors should be considered to ensure a successful purchase. 1. Quality Assessment: Look for machines that meet established quality standards. Consider accuracy, repeatability, and features that align with your specific needs. 2. Supplier Verification: Vet potential suppliers thoroughly. Check for customer reviews, industry reputation, and certifications to ensure reliability. 3. Pricing and MOQ: Understand the pricing structure and minimum order quantities. This will help in budgeting and planning your procurement. 4. Delivery and Lead Times: Inquire about the expected delivery times and logistics involved in shipping the CMM to your location. 5. Compliance Requirements: Ensure the CMM meets relevant regulatory and industry standards, such as CE certification, to avoid compliance issues. 𝗖𝗼𝗺𝗽𝗹𝗶𝗮𝗻𝗰𝗲 𝗮𝗻𝗱 𝗖𝗲𝗿𝘁𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 Coordinate Measuring Machines are subject to various quality standards and certifications that ensure their reliability and safety in industrial applications. ISO 9001 is a widely recognized quality management standard that ensures manufacturers maintain effective processes to improve customer satisfaction. Compliance with this standard is crucial for businesses aiming for excellence. CE certification is essential in the European market, indicating that the product meets health, safety, and environmental protection standards. This certification is critical for manufacturers seeking to sell CMMs in Europe. Additionally, safety and testing requirements must be adhered to, ensuring that CMMs operate safely within specified parameters. Regional compliance considerations may vary, so it is important for buyers to be aware of local regulations and standards. Why Source Coordinate Measuring Machines (CMM) from Pepagora? Pepagora provides a trusted platform for sourcing Coordinate Measuring Machines, offering several key advantages to B2B buyers. Verified Supplier Network: Pepagora features a network of verified suppliers, ensuring that buyers connect with reputable manufacturers. This reduces the risk of sourcing low-quality products. Streamlined RFQ Process: The platform's request for quotation (RFQ) process simplifies procurement. Buyers can easily request quotes and compare offers from multiple suppliers. Trade Assurance and Support: Pepagora offers trade assurance, providing protection for buyers throughout the procurement process. Support services are available to assist with any inquiries or issues. Regional Coverage: With a strong presence in India, the GCC, and Southeast Asia, Pepagora facilitates access to CMMs across diverse markets, making it easier for businesses to find suitable products.
