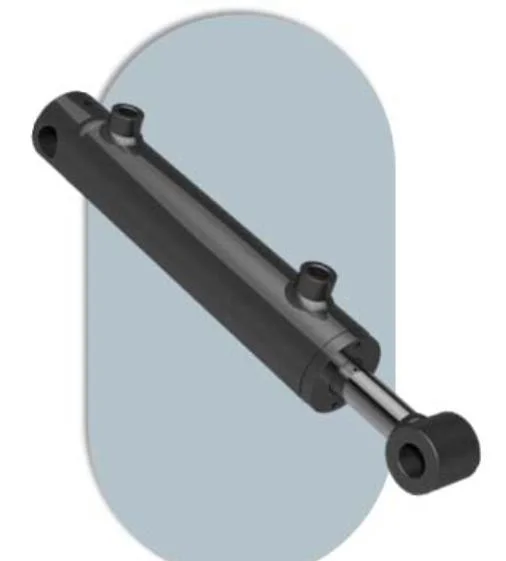

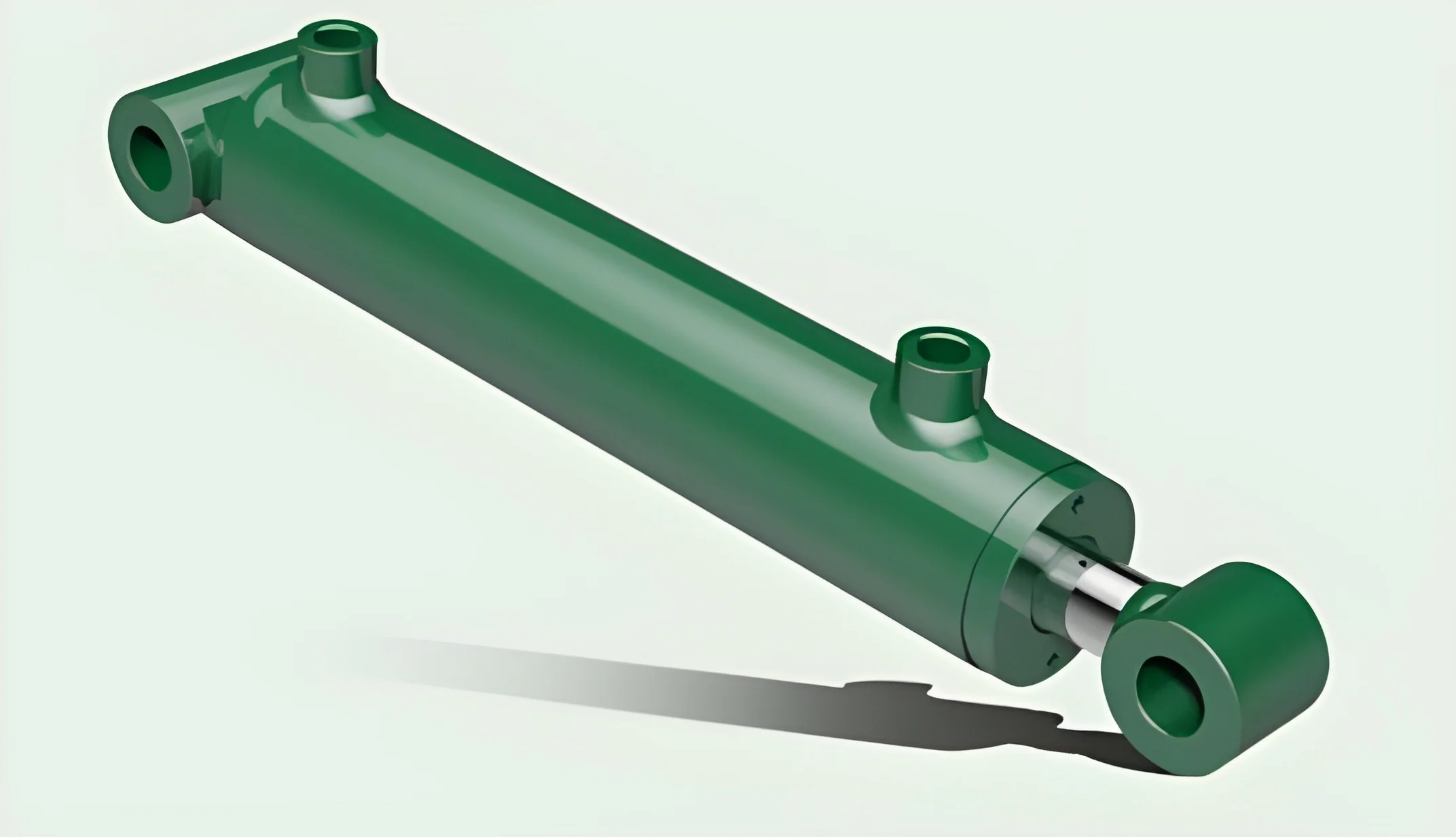

What are Double Acting Hydraulic Cylinders?
Double acting hydraulic cylinders are mechanical devices that convert hydraulic energy into linear motion. They operate using hydraulic fluid, which pushes the piston in both directions, enabling movement in two separate strokes. This design allows for greater efficiency and control compared to single acting cylinders, which only function in one direction. The hydraulic fluid enters the cylinder through ports at both ends, allowing the piston to extend and retract, making these cylinders versatile and reliable for various applications.
These hydraulic cylinders find extensive use in industries such as construction, manufacturing, and automotive. They are commonly utilized in machinery for lifting, pushing, or pulling heavy loads. Their ability to exert force in both directions makes them ideal for tasks that require precision and strength. In today’s market, double acting hydraulic cylinders are crucial components in automated systems and equipment, supporting the growing demand for efficient and powerful machinery in industrial operations.
Key Features and Specifications
Double acting hydraulic cylinders come with several key features and specifications that enhance their functionality. Understanding these specifications can help businesses select the right cylinder for their needs.
Key specifications include:
1. Bore Diameter
- The internal diameter of the cylinder, typically ranging from 25 mm to 200 mm, affecting the cylinder's force output.
2. Stroke Length
- The distance the piston travels, usually between 50 mm to 1000 mm, determining the range of motion.
3. Maximum Operating Pressure
- The pressure limit, generally between 100 bar to 350 bar, which defines the cylinder's operational capabilities.
4. Material Construction
- Common materials include steel and aluminum, impacting durability and weight.

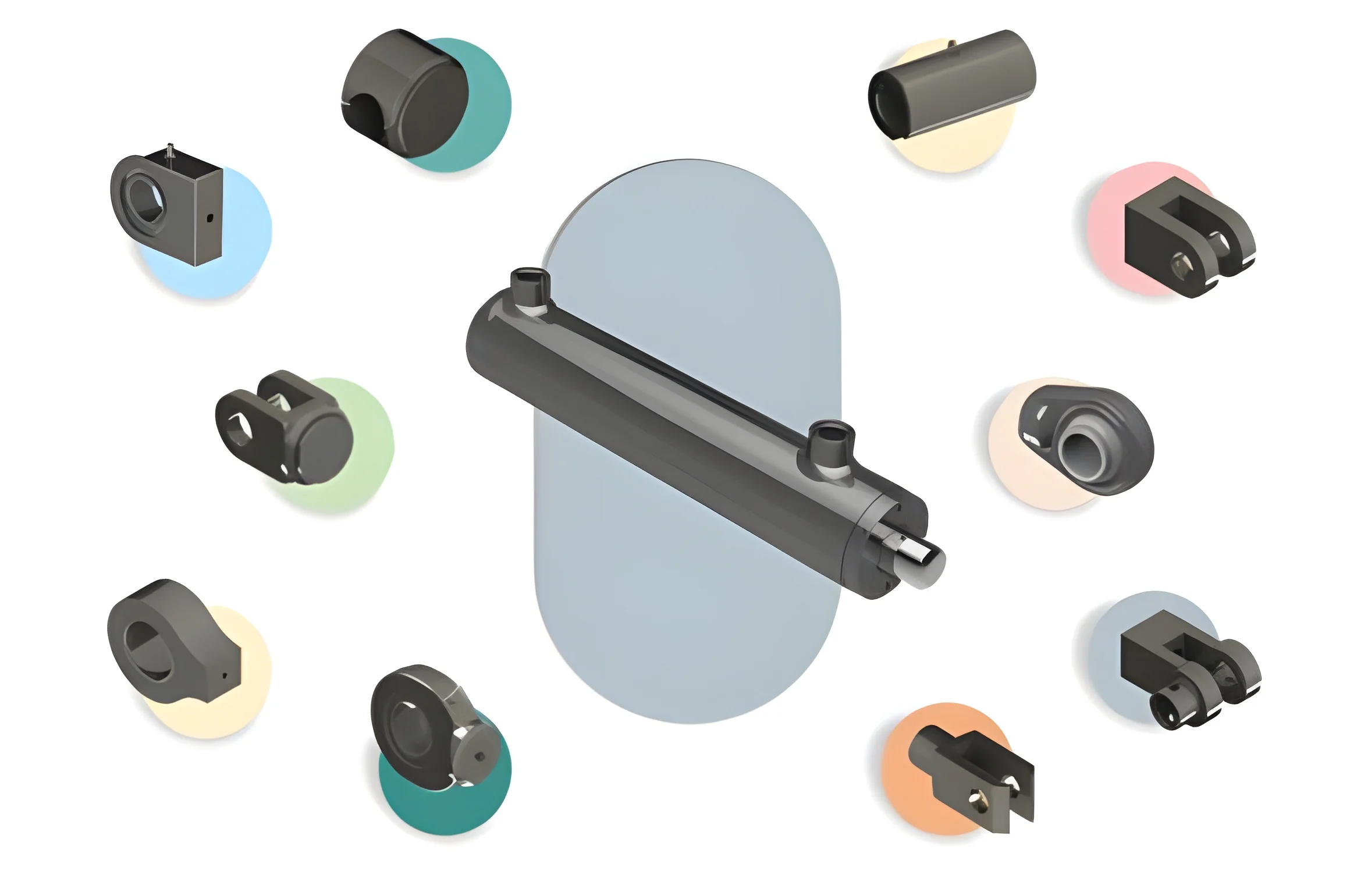

5. Mounting Style
- Options include pin, flange, and foot mounts, allowing for flexible installation.

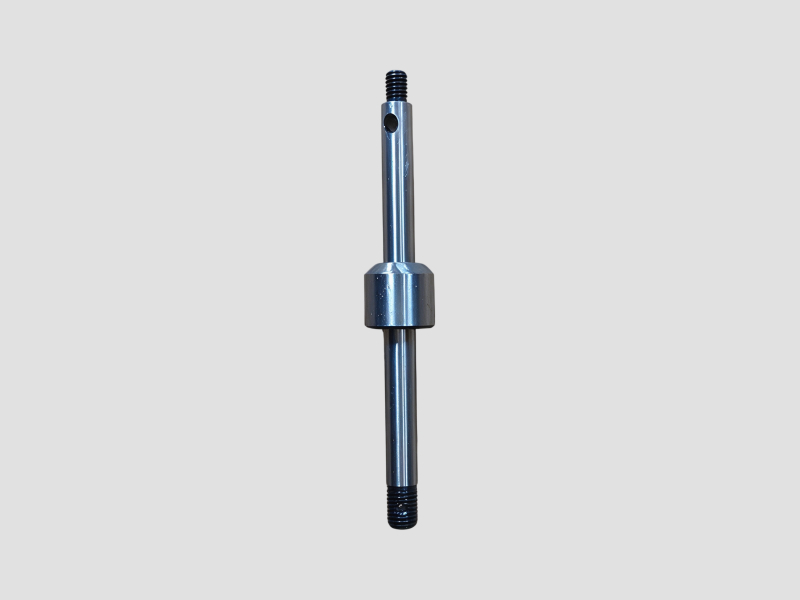

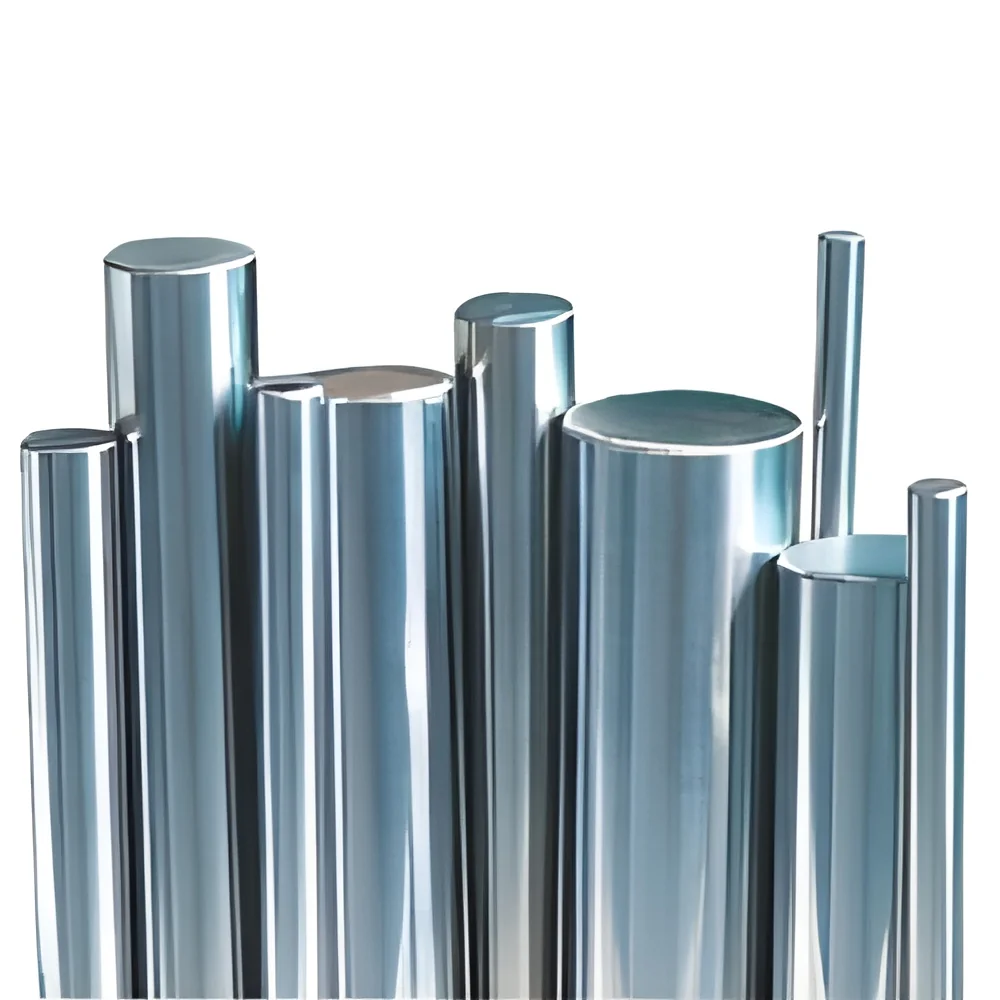

6. Piston Rod Diameter
- The diameter of the rod that extends from the cylinder, affecting strength and load capacity.
7. Seal Type
- Various seals are available, such as O-rings or U-cups, which ensure fluid containment and prevent leaks.
8. Temperature Range
- Not specified, but important for applications in extreme conditions.
These specifications play a vital role in determining the performance and suitability of double acting hydraulic cylinders for specific industrial applications.
Common Applications and Use Cases
Double acting hydraulic cylinders are integral to numerous industries, providing reliable performance in various applications.

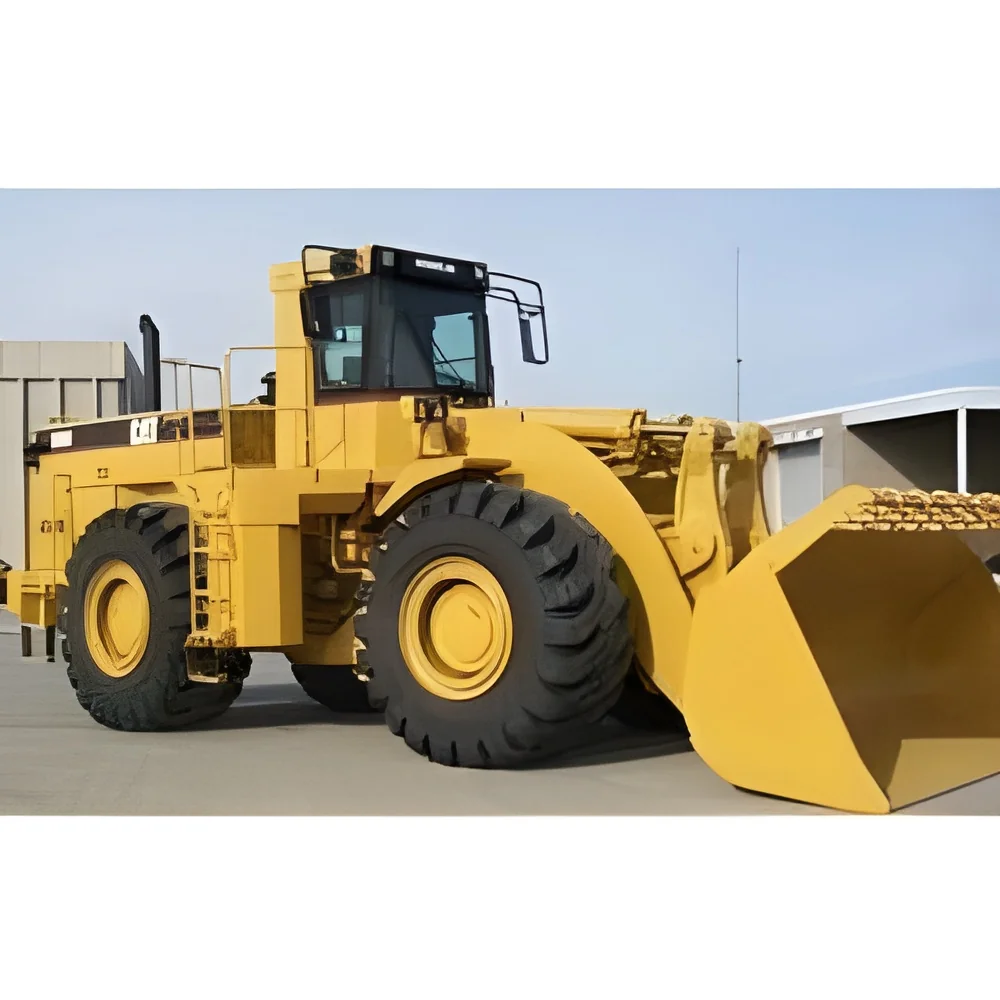

1. Construction: Used in excavators and cranes for lifting and moving heavy materials, these cylinders offer the necessary power and precision.
2. Manufacturing: Employed in assembly lines for pushing and pulling components, enhancing productivity and efficiency in production processes.
3. Automotive: Utilized in car lifts and repair equipment, allowing for safe and effective vehicle servicing.
4. Agriculture: Found in tractors and harvesters, aiding in the operation of attachments and improving agricultural efficiency.
5. Mining: Used in machinery for digging and material handling, providing the strength needed for heavy-duty tasks.
6. Aerospace: Applied in landing gear systems and actuation mechanisms, ensuring reliability in critical operations.
7. Marine: Employed in ship stabilizers and deck machinery, enhancing safety and functionality in marine environments.
Product Variants and Subcategories
Double acting hydraulic cylinders come in various configurations to meet specific operational needs.

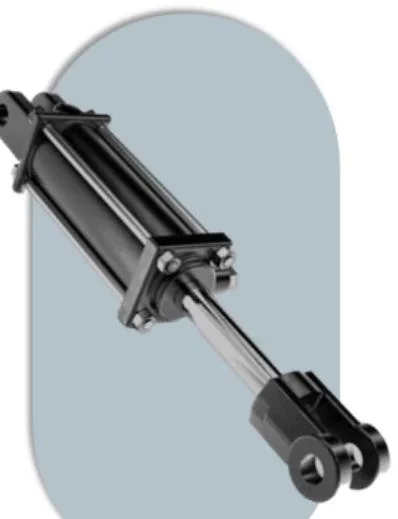

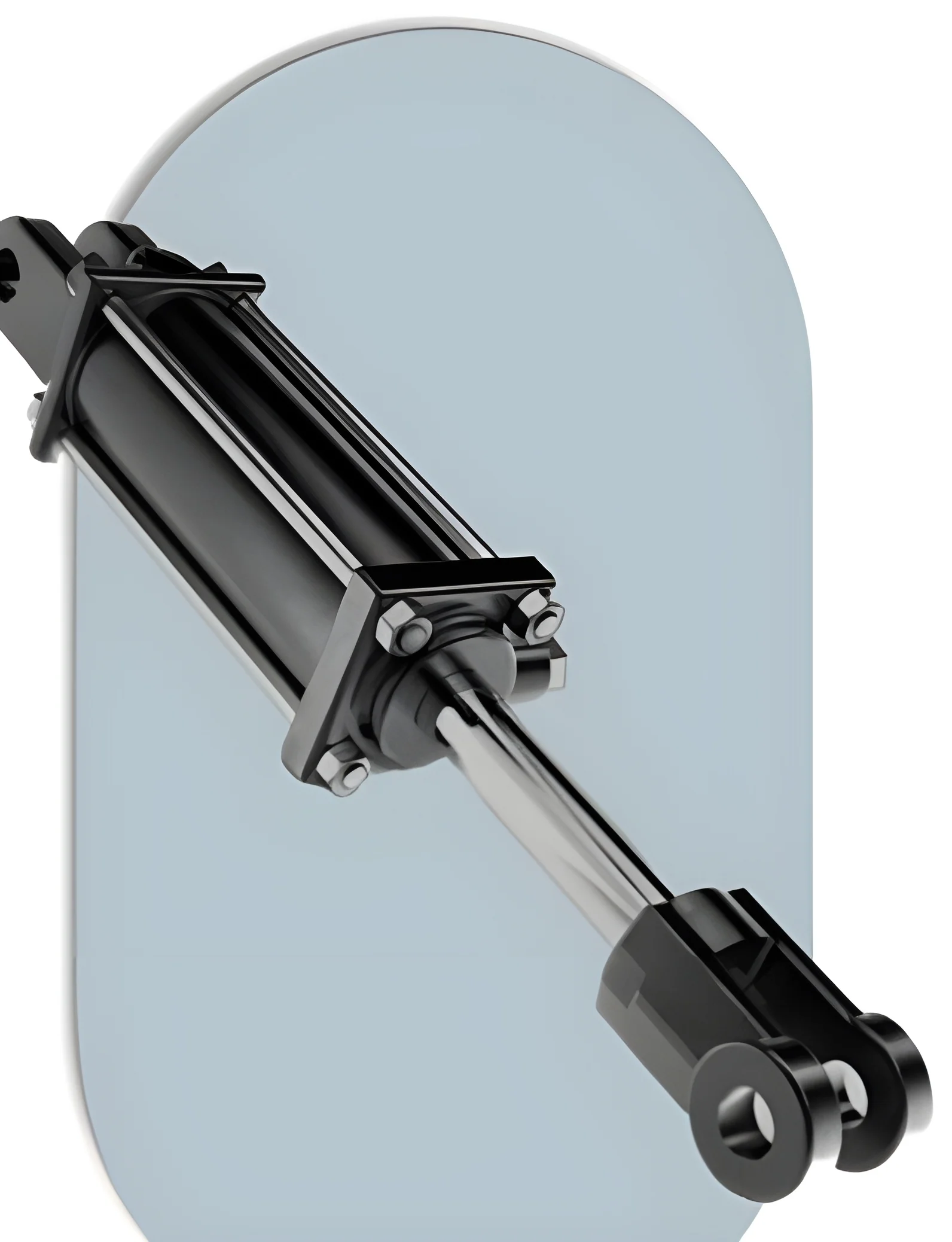

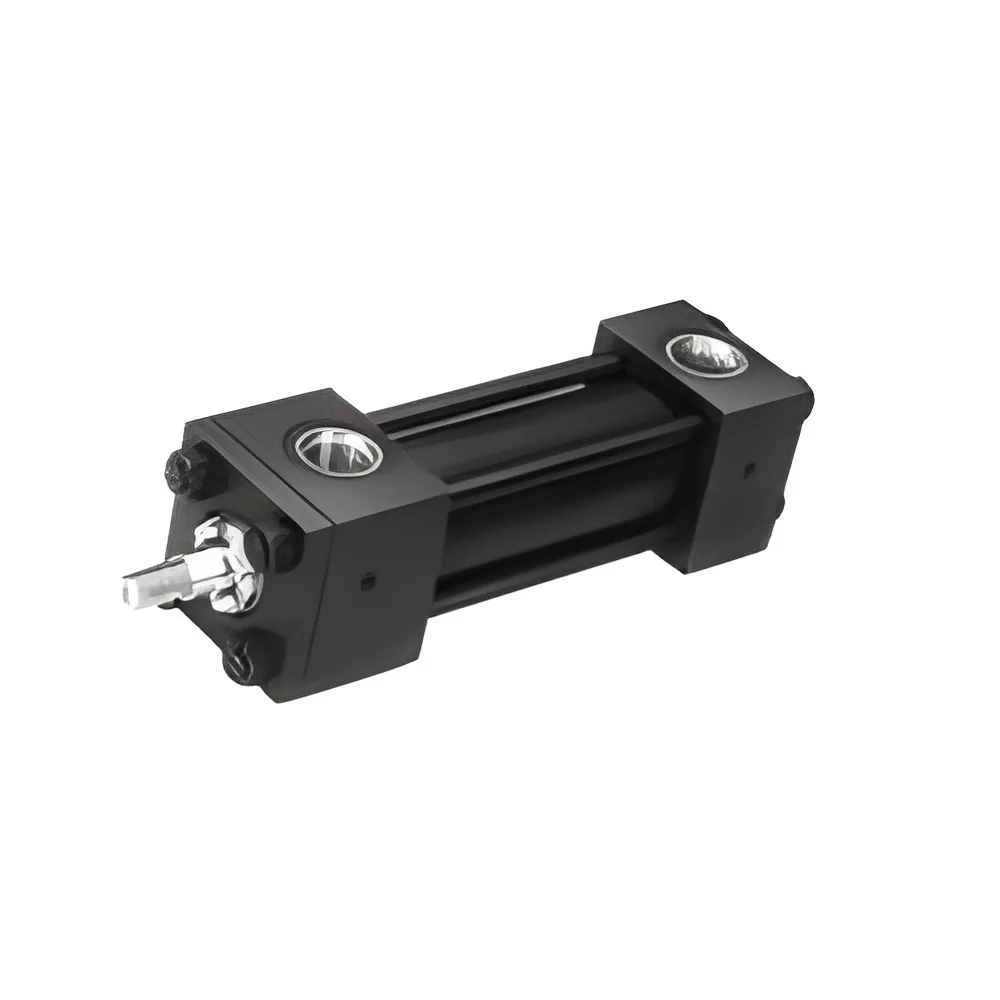

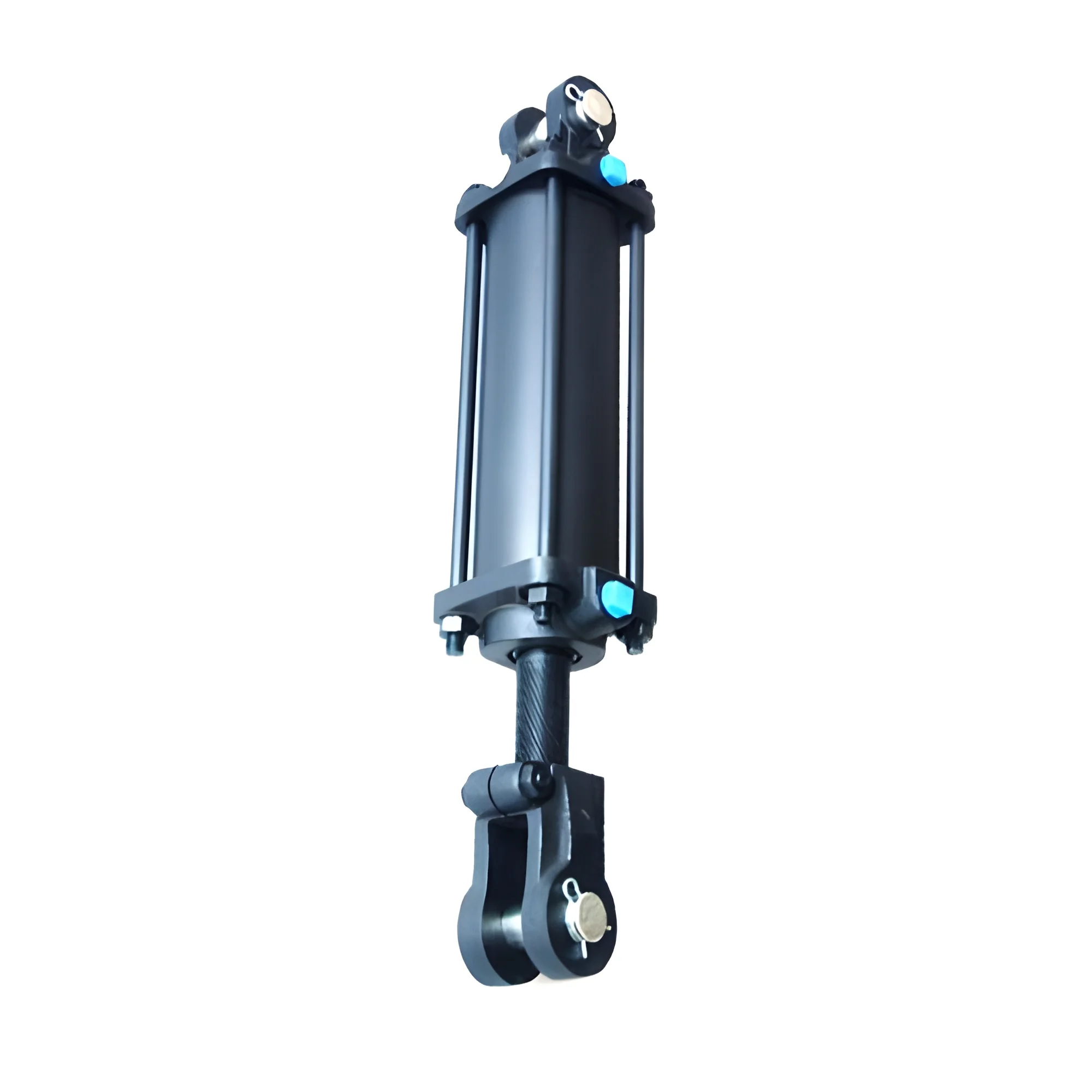

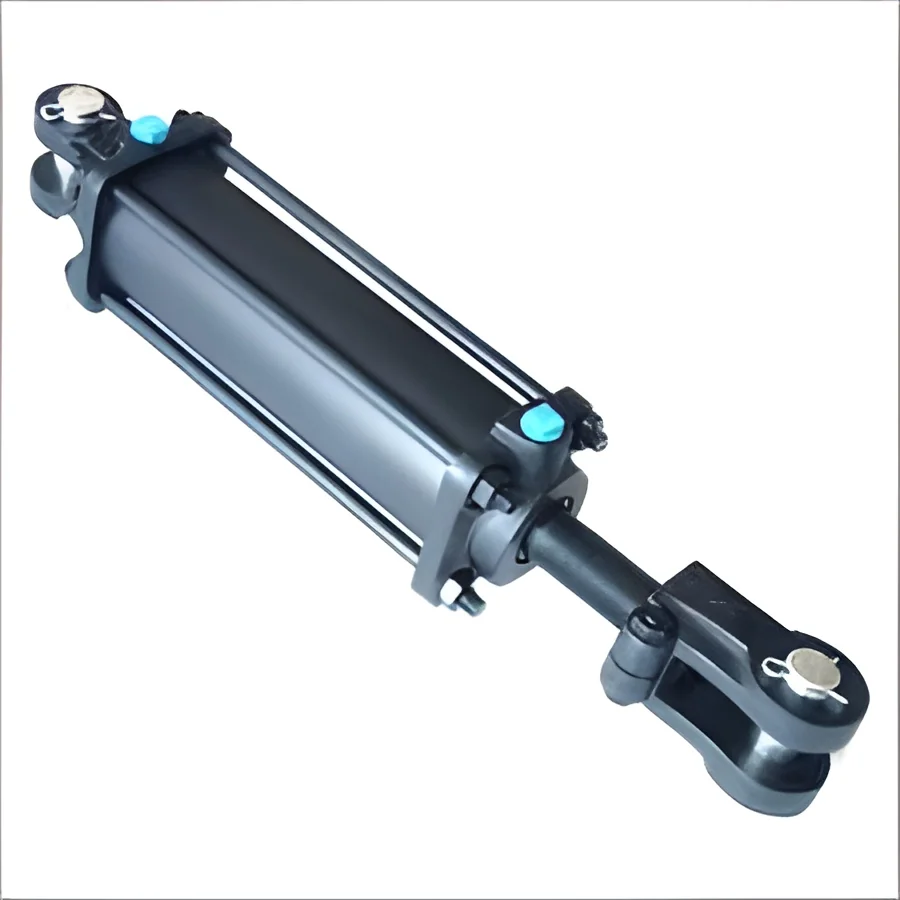

Tie Rod Cylinders
These cylinders feature a tie rod design that allows for higher pressure capabilities, making them suitable for heavy-duty applications. They are easy to maintain and replace due to their accessible construction.
Compact Cylinders
Designed for limited spaces, compact cylinders deliver high force in a smaller footprint. They are ideal for applications where space is a constraint without compromising performance.
High-Pressure Cylinders
These cylinders are built to withstand extreme pressures and are typically used in industries requiring high performance, such as aerospace and defense.
Benefits and Advantages
Double acting hydraulic cylinders offer several advantages that make them a preferred choice in various applications.
1. Increased Efficiency: The ability to exert force in both directions enhances overall efficiency in operations.
2. Greater Control: They provide precise control over movement, which is essential for tasks requiring accuracy.
3. Versatility: Suitable for a wide range of applications across different industries, making them highly adaptable.
4. Robust Performance: Designed to handle heavy loads and high pressures, ensuring reliability in demanding environments.
5. Reduced Downtime: Their durability and ease of maintenance lead to lower downtime and increased productivity.
6. Cost-Effectiveness: Over time, their efficiency and reliability can lead to reduced operational costs.
Buying Guide for B2B Buyers
When sourcing double acting hydraulic cylinders, there are several critical factors to consider to ensure the right choice for your business needs.
1. Quality Assessment: Evaluate the quality of materials and manufacturing processes. Look for certifications that validate the cylinder's performance and reliability.
2. Supplier Verification: Vet potential suppliers by checking their reputation, customer reviews, and industry experience. A reliable supplier ensures consistent product quality.
3. Pricing and MOQ: Understand the pricing structure and minimum order quantities. Compare prices while considering the features and specifications of the cylinders.
4. Delivery and Lead Times: Inquire about the supplier's delivery capabilities and lead times. Timely delivery is crucial for maintaining production schedules.
5. Compliance Requirements: Ensure that the cylinders meet industry standards and regulatory requirements applicable in your region.
Compliance and Certifications
Double acting hydraulic cylinders must adhere to various quality standards and certifications to ensure safety and performance.
Relevant quality standards such as ISO 9001 ensure that manufacturers maintain high-quality management systems. Adherence to these standards indicates reliability in production processes.
Industry certifications like UL and CE signify that products meet safety and performance benchmarks essential for market acceptance. These certifications provide assurance to buyers regarding the quality and safety of the cylinders.
Safety and testing requirements are critical, as they ensure that the cylinders can operate under specified conditions without malfunction or failure. Regular testing and inspections help maintain compliance with safety standards.
Additionally, regional compliance considerations must be taken into account. Different regions may have specific regulations that affect the design and operation of hydraulic cylinders.
Why Source Double Acting Hydraulic Cylinders from Pepagora?
Pepagora offers a trusted platform for sourcing double acting hydraulic cylinders, delivering several key advantages to B2B buyers.
Verified Supplier Network: Our platform connects buyers with a network of verified suppliers. This ensures that buyers can access high-quality products from reputable manufacturers.
Streamlined RFQ Process: The quotation process is designed to be straightforward, allowing buyers to quickly receive competitive quotes from multiple suppliers, saving time and effort.
Trade Assurance and Support: Pepagora provides trade assurance, offering protection for buyers throughout the purchasing process. Our support team is available to assist with any inquiries or issues.
Regional Coverage: With a strong presence in India, the GCC, and Southeast Asia, Pepagora facilitates smooth transactions and delivery across these regions, ensuring that buyers can find the products they need, regardless of location.
