- Data center server management
- Server racks and network cabinets
- Industrial control room systems
- IT infrastructure monitoring
- Multi-server administration
- Network and equipment management environments
IN₹
Description

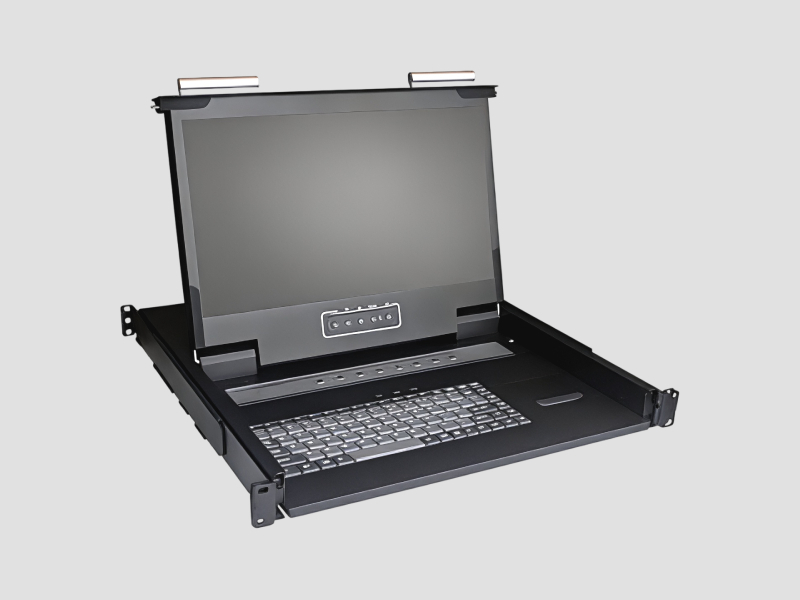

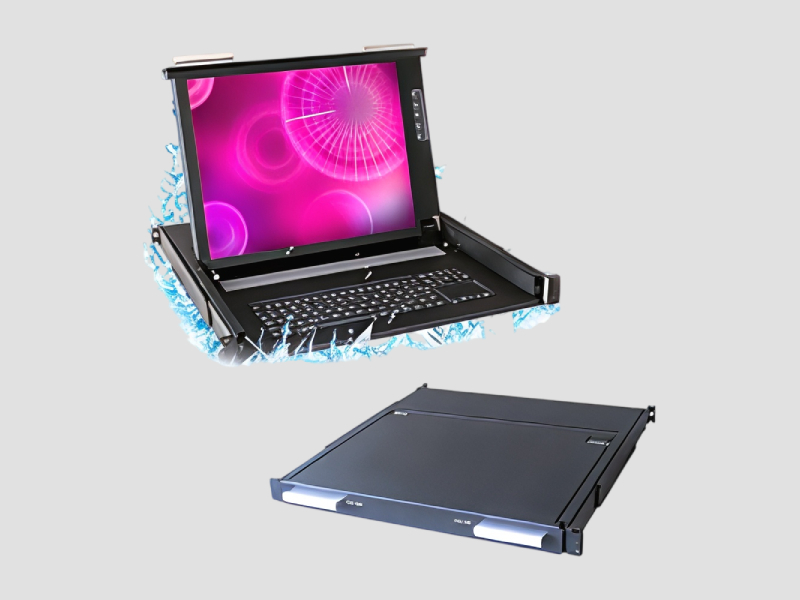

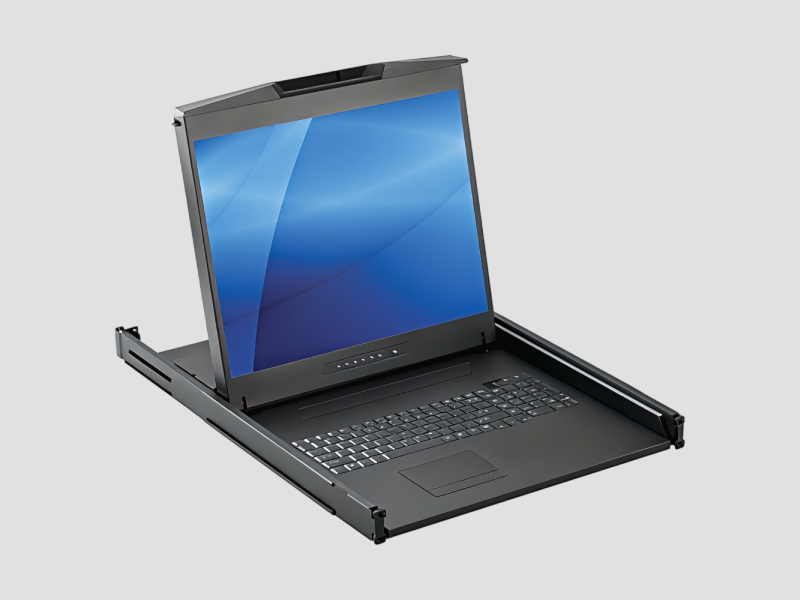

The Combo DB15 LCD Console Drawer from RB Technologies combines an LCD display, keyboard, touchpad and KVM switching capabilities into a compact rack-mounted system. It is available in 17-inch and 19-inch versions with LED backlighting, 1280 × 1024 resolution and support for 16.7 million colors. The console supports VGA-USB and VGA-PS/2 combo interfaces and provides an additional USB local console for connecting a keyboard, mouse and VGA display. Port selection can be performed using push buttons, On-Screen Display or hotkeys. A dedicated daisy-chain port enables system expansion, while self-locking and auto-release rails provide convenient operation and installation
Specifications
| Key Attributes | |
|---|---|
| Part Number | KVM-1701AST-M2/ULC, KVM-1708AST-M2/ULC, KVM-1716AST-M2/ULC, KVM-1901AST-M2/ULC, KVM-1908AST-M2/ULC, KVM-1916AST-M2/ULC |
| Computer Support | 1 / 8 / 16 Computers |
| Maximum Computers | 1 / 232 / 240 Computers via Daisy Chain |
| Screen Size | 17″ / 19″ |
| Resolution | 1280 × 1024 |
| Backlight | LED |
| Maximum Colors | 16.7M |
| Luminance | 250 cd/m² |
| Viewing Angle | 176°/170° or 170°/160° (H/V) |
| Port Selection | Push Button / OSD / Hotkey |
| Power Input | 100–240V AC, 50/60Hz |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What display sizes are available for the Combo DB15 LCD Console Drawer?
The product is available with 17-inch and 19-inch LED-backlit displays, both supporting 1280 × 1024 resolution
2
How many computers can the console manage?
Depending on the configuration, it can directly manage 1, 8 or 16 computers. Daisy-chain configurations can expand management up to 240 computers.
3
How can users select between connected computers?
Port selection can be performed through push buttons, On-Screen Display (OSD) or hotkeys
SKU: 1
Combo DB15 LCD Console Drawers
The rackmount KVM console provides convenient server management with combo VGA-USB and VGA-PS/2 interfaces, plus an additional USB local console for connecting a keyboard, mouse, and VGA display. It features a durable 104-key keyboard with touchpad, quick installation, self-locking and auto-release rails, push-button or OSD port selection, and a dedicated daisy-chain port supporting expansion of up to 240 servers.
