- Vehicle monitoring and control systems
- Mobile surveillance systems
- Fleet management solutions
- In-vehicle data processing
- Transportation and logistics systems
- Mobile industrial computing
- Vehicle-connected camera systems
IN₹
Apparel & Fashion
Description
The RBT IVS-300-ULT3 is a rugged Vehicle Embedded PC developed for applications requiring compact computing, extensive I/O and reliable fanless operation. It supports Intel Skylake ULT or Bay Trail processors and provides two DDR3L SO-DIMM slots, with one 4GB memory module pre-installed. The system includes four IEEE 802.3af PoE ports, dual hot-swappable 2.5-inch SATA HDD/SSD bays, USB 3.0, RS-232, isolated RS-422/485, CAN-Bus/OBD-II and isolated digital I/O. VGA and HDMI outputs support display connectivity, while PCIe Mini expansion slots enable optional Wi-Fi and 3G integration. Its fanless construction and -20°C to 60°C operating range support demanding mobile and industrial installations.
Specifications
| Key Attributes | |
|---|---|
| Dimensions | 255 × 80 × 185 mm |
| Color | Blue |
| SBC Form Factor | Intel® Skylake ULT / Baytrail Processor |
| System Memory | 2 × 204-Pin DDR3L SO-DIMM, 4 GB Pre-Installed |
| Indicators | 8 × LEDs (4 PoE, 1 HDD, 1 Wi-Fi, 2 SIM) |
| Cooling System | Fanless |
| Drive Bays | 2 × 2.5″ SATA 3Gb/s HDD/SSD Drive Bays |
| Operating Temperature | -20°C to 60°C with Air Flow |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
Which processors does the RBT IVS-300-ULT3 support?
The system supports Intel Skylake ULT or Bay Trail processors with a SoC platform and DDR3L SO-DIMM memory.
2
Does the RBT IVS-300-ULT3 support PoE devices?
Yes. It provides four IEEE 802.3af PoE ports, with each port supporting up to 15.4W.
3
What storage options are available?
The system provides two hot-swappable 2.5-inch SATA 3Gb/s drive bays supporting HDD or SSD storage devices
4
What other products are available in this range?

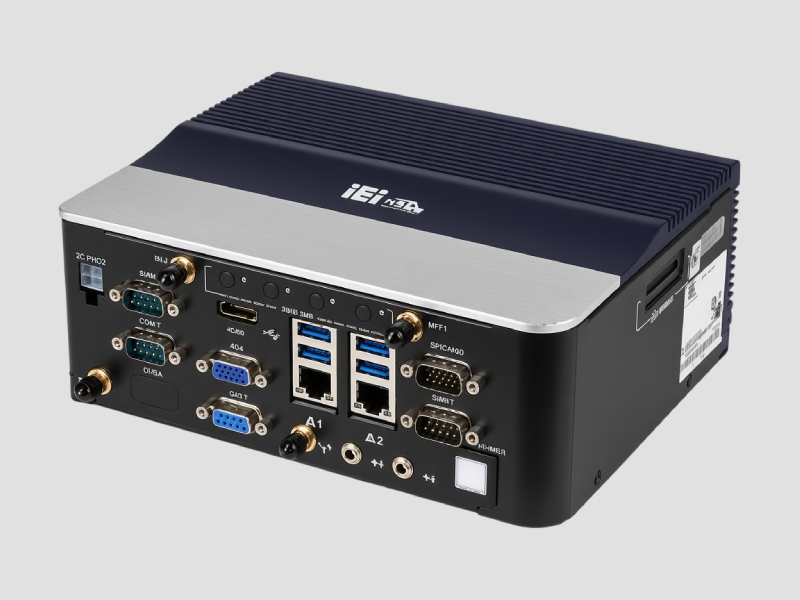

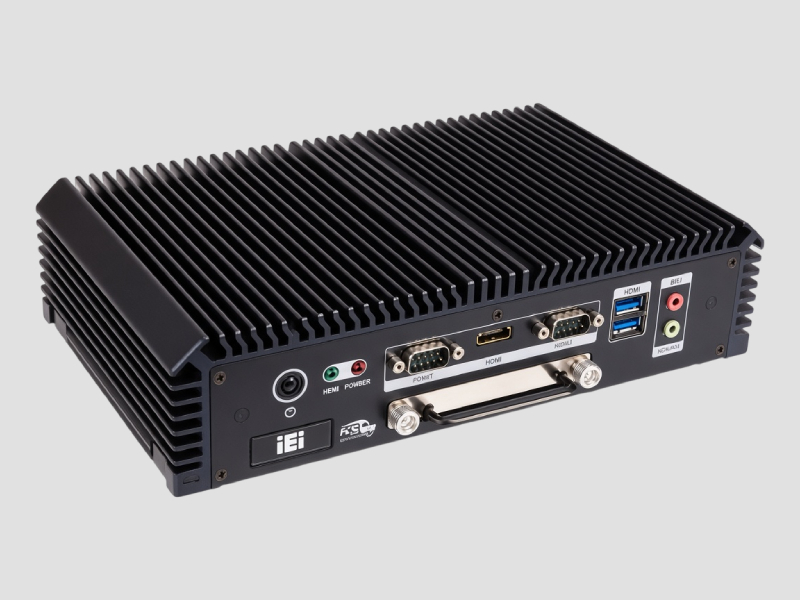

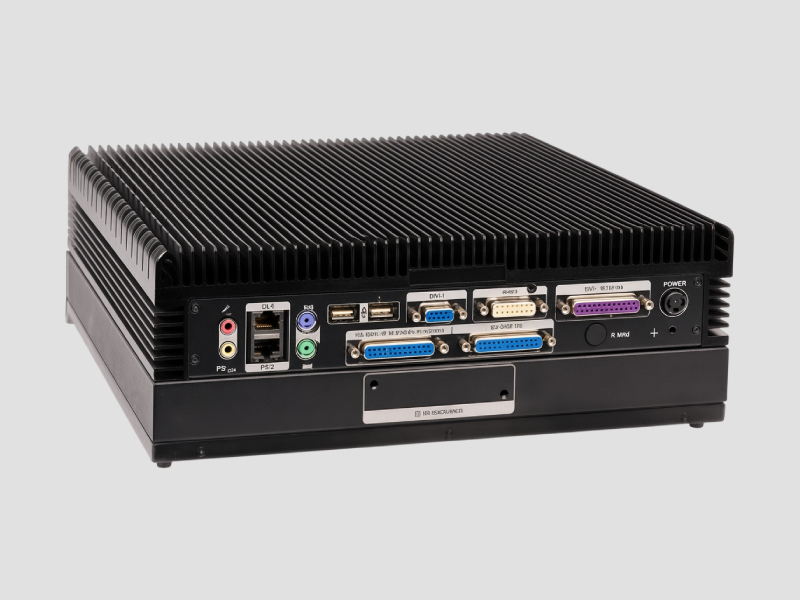

The additional available products are RBT ITCS-100-H81, RBT IVS-100-BT and RBT IVS-200-ULT2.
SKU: 1

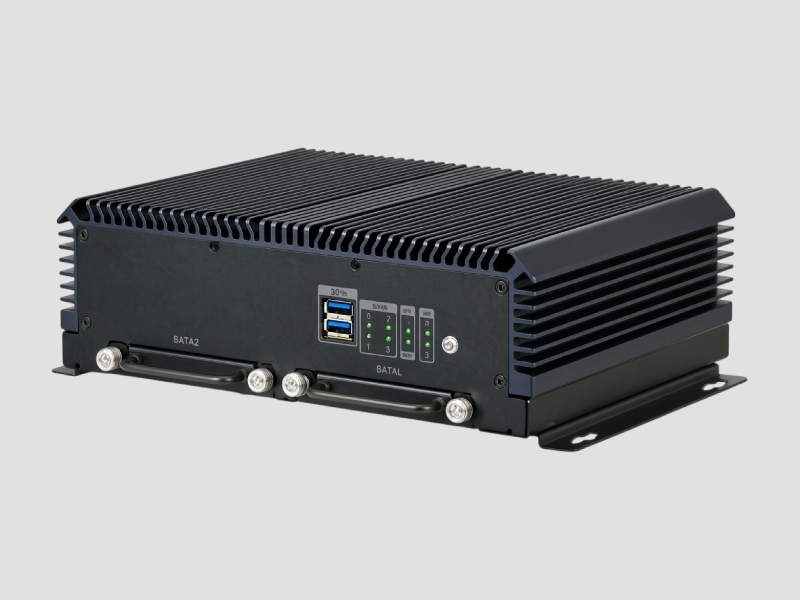

RBT IVS-300-ULT3 Vehicle Embedded PC
The RBT IVS-300-ULT3 is a fanless Vehicle Embedded PC designed for vehicle computing, surveillance, monitoring and mobile industrial applications. It supports Intel Skylake ULT or Bay Trail processors with DDR3L memory and features four IEEE 802.3af PoE ports for connected devices. Dual hot-swappable 2.5″ SATA HDD/SSD bays provide flexible storage, while RS-232, isolated RS-422/485, CAN-Bus/OBD-II, digital I/O, USB 3.0, VGA and HDMI offer extensive connectivity. Optional 3G and Wi-Fi support further enhance its suitability for connected vehicle systems
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
RB Technologies
Tamil Nadu, India
Tamil Nadu, IndiaManufacturer
