- Industrial machine control and monitoring
- Factory automation systems
- Operator interface stations
- Production line visualization
- Process control applications
- Machine status and parameter monitoring
- Industrial equipment operation
IN₹
Apparel & Fashion
Description

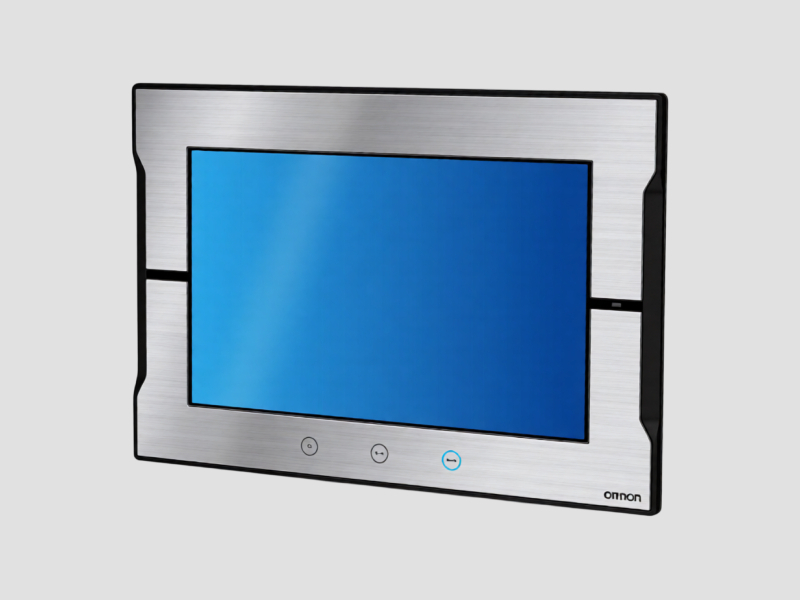

The NA5-12W is an Omron Sysmac HMI developed to provide an effective interface between operators and industrial machinery. Its 12.1-inch TFT LCD delivers 1280 × 800 resolution with 24-bit full color and 16.77 million colors, supporting detailed machine and process visualization. The touch panel provides 16,384 × 16,384 resolution and is rated for 1 million operations. It operates from a 24 VDC supply with an allowable range of 19.2 to 28.8 VDC and consumes up to 45W. The unit measures 340 × 224 × 69 mm and weighs up to 2.3 kg. RB Technologies highlights the platform's focus on faster control, monitoring, scalability and improved operator-machine interaction
Specifications
| Key Attributes | |
|---|---|
| Display Type | TFT LCD |
| Screen Size | 12.1 inches |
| Resolution | 1,280 × 800 dots |
| Display Colors | 16,770,000 colors, 24-bit |
| Viewing Angle | 60° left / 60° right / 60° top / 60° bottom |
| Touch Panel Resolution | 16,384 × 16,384 |
| Function Keys | 3 Capacitance Inputs |
| Rated Supply Voltage | 24 VDC |
| Power Consumption | 45 W Max |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90%, Non-Condensing |
| Dimensions | 340 × 224 × 69 mm |
| Weight | 2.3 kg Max |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What is the display size and resolution of the NA5-12W?
The NA5-12W features a 12.1-inch TFT LCD with 1280 × 800 resolution and supports 16.77 million colors.
2
What type of touch panel does the NA5-12W provide?
The touch panel offers 16,384 × 16,384 resolution and is rated for approximately 1,000,000 operations.
3
What are the operating conditions of the NA5-12W?
It supports an operating temperature of 0°C to 50°C and operating humidity of 10% to 90% without condensation.
4
What other products are available in this range?

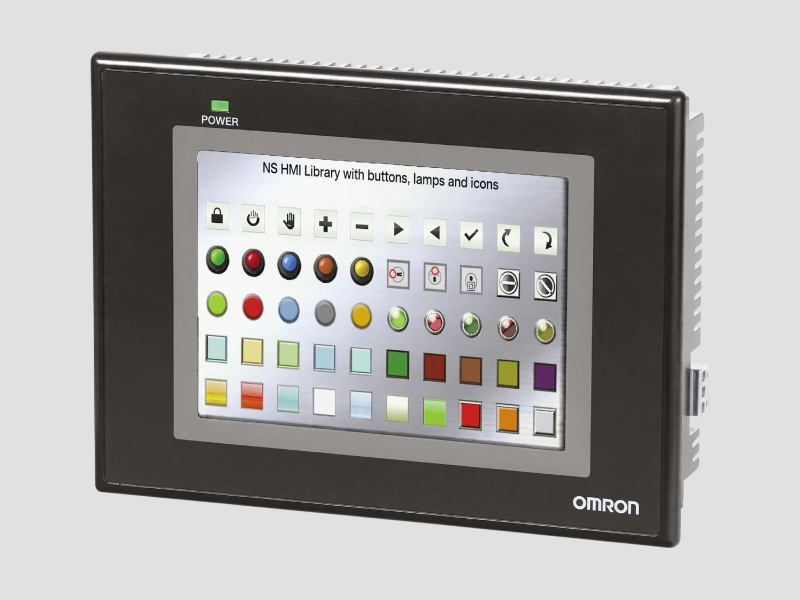

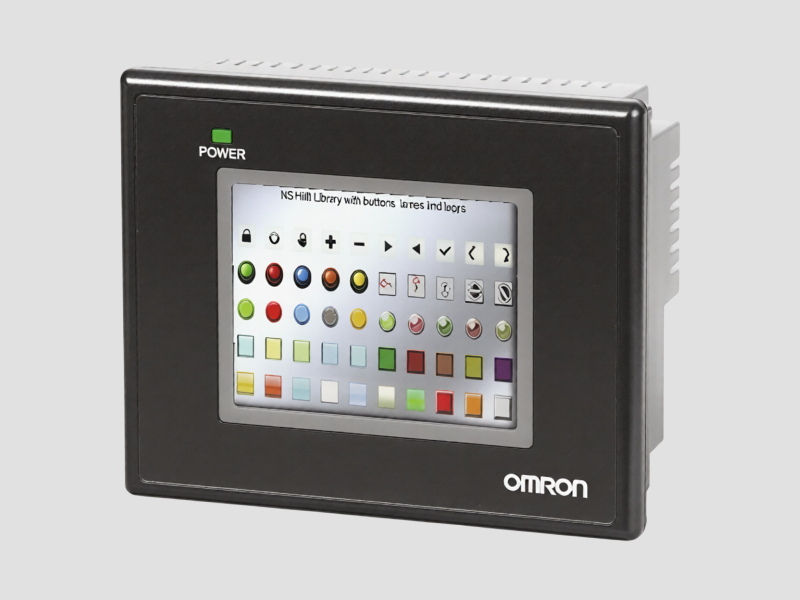

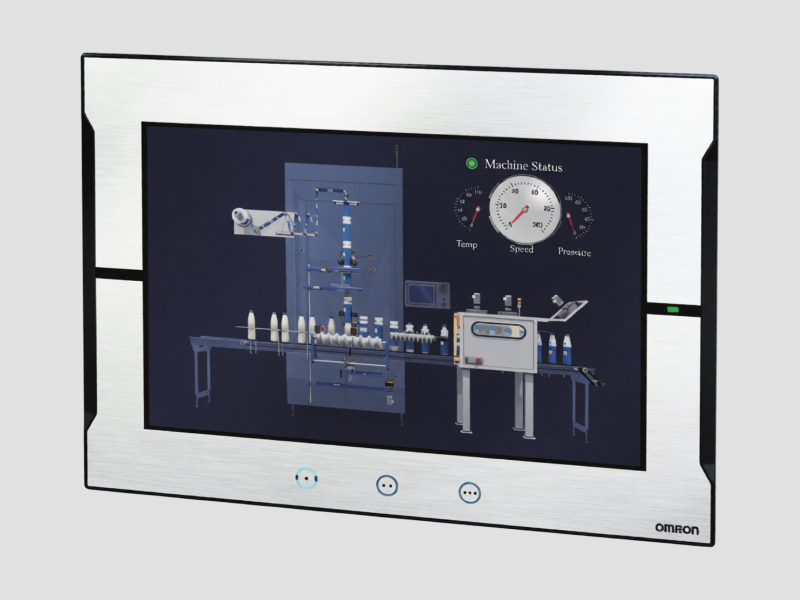

The additional available products are NA5-15W, NA5-7W, NA5-9W, NB10W, NB3Q and NB5Q.
SKU: 1
NA5-12W 12.1″ Omron Sysmac HMI
The Omron Sysmac HMI enables faster and more efficient machine control and monitoring through a proactive operator-machine interface. Designed around real-world applications and customer requirements, it provides a future-proof and scalable platform that supports flexible system expansion and quick responses to changing operational needs.
