- Industrial rack-mounted control systems
- Factory automation and machine monitoring
- Industrial HMI and operator interfaces
- Process control and visualization
- Equipment monitoring stations
- Industrial control room installations
IN₹
Apparel & Fashion
Description

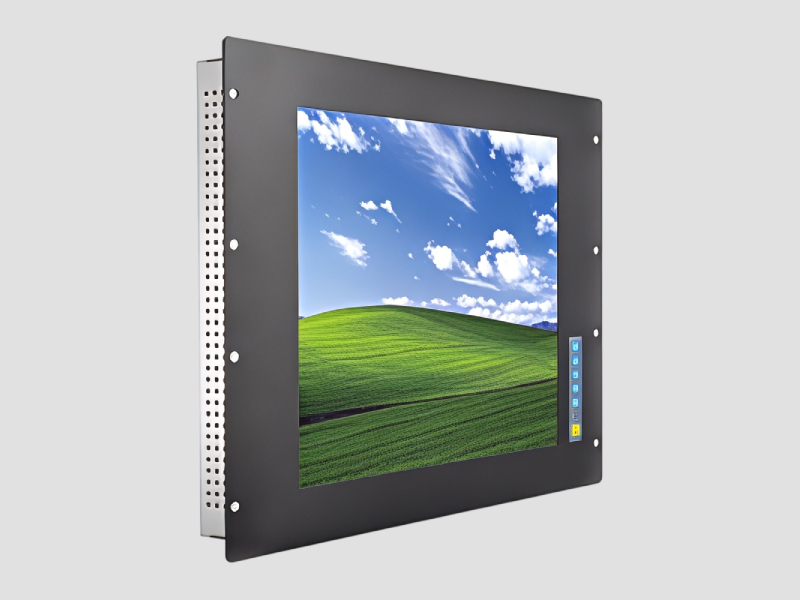

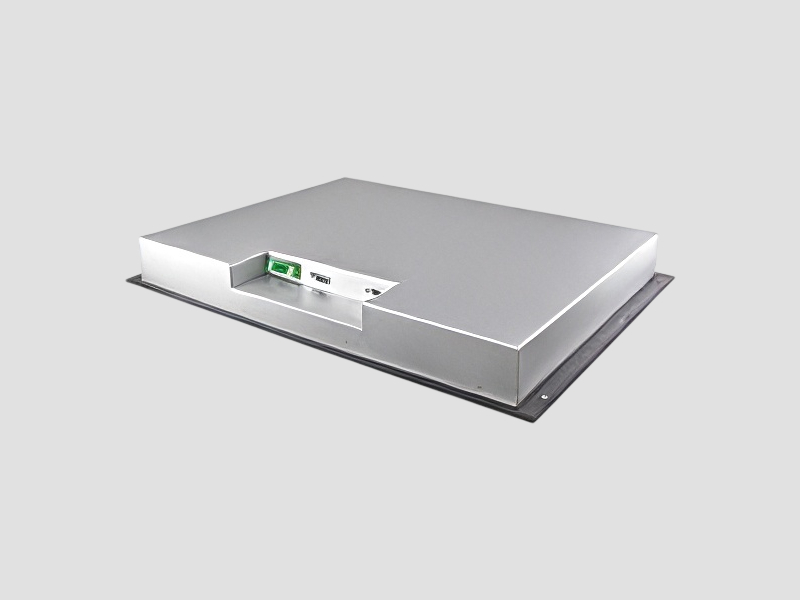

The PANEL5000-RM170TC is a rugged 17-inch industrial monitor developed for 19-inch standard rack-mounted installations. Its SXGA TFT LCD delivers 1280 × 1024 resolution, 250 cd/m² brightness and a 1000:1 contrast ratio, while LED backlighting provides a specified MTBF of 30,000 hours. The monitor incorporates a five-wire analog resistive touchscreen with 4096 × 4096 touch resolution and a response time below 5 ms. It supports VGA and DVI signal inputs with optional RS232/USB communication. A high-strength steel front panel with IP65 protection, 12V DC input and support for demanding environmental conditions make it suitable for industrial rack systems
Specifications
| Key Attributes | |
|---|---|
| Screen Size | 17″ SXGA TFT LCD |
| Resolution | 1280 × 1024 |
| Display Area | 338 × 270 mm |
| Brightness | 250 cd/m² |
| Maximum Color | 16.7M |
| Viewing Angle | 140° (H) / 130° (V) |
| Touch Screen | 17″ Five-Wire Analog Resistive |
| Touch Resolution | 4096 × 4096 |
| IP Protection | IP65 |
| Power Input | 12V DC |
| Dimension | 482.6 × 354.8 × 51 mm |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What display does the PANEL5000-RM170TC use?
It features a 17-inch SXGA TFT LCD with 1280 × 1024 resolution, 250 cd/m² brightness and 16.7 million colors.
2
Does the PANEL5000-RM170TC have a touchscreen?
Yes. It features a 17-inch five-wire analog resistive touchscreen with 4096 × 4096 resolution and a response time of less than 5 ms
3
What mounting and connectivity options are available?
The monitor is designed for a standard 19-inch rack mount and supports DVI and VGA signal inputs. RS232/USB communication is available as an option.
4
What other products are available in this range?

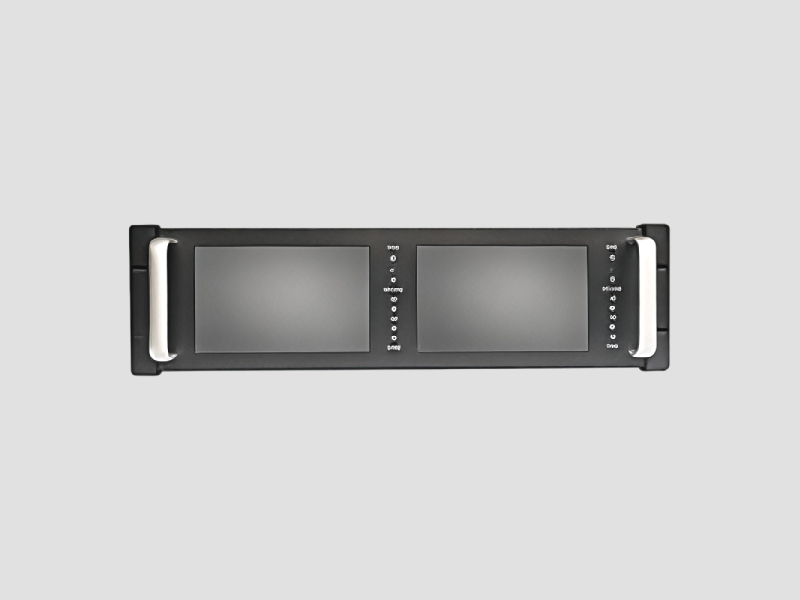

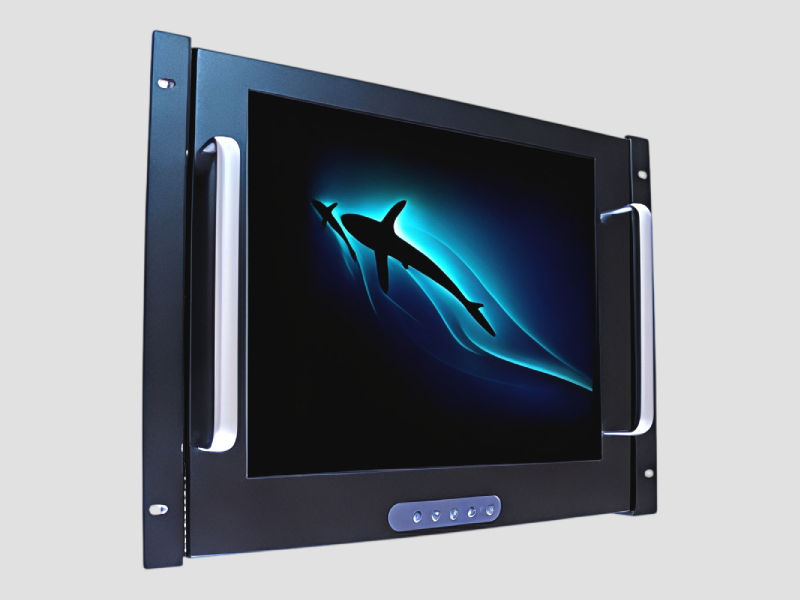

The additional available products are RM-2×7 and RMB-17.
SKU: 1
PANEL5000-RM170TC 17″ Rack Mount Industrial Monitor
The 17-inch rackmount industrial monitor features a TFT LCD with a maximum 1280×1024 resolution and supports VGA/DVI signal inputs. It is equipped with a precision resistive touchscreen with COM/USB connectivity, durable aluminum panels, and rackmount/VESA mounting options. The monitor operates on DC 12V power and includes a power adapter.
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
RB Technologies
Tamil Nadu, India
Manufacturer
