- Industrial machine display systems
- HMI and operator interface integration
- Factory automation equipment
- Embedded display applications
- Industrial control panels
- Kiosks and custom equipment
- Process monitoring systems
IN₹
Apparel & Fashion
Description
The RBT LCD-KIT-F12A is an open frame monitor developed for embedded industrial display integration. Its 12.1-inch LCD provides 1024 × 768 resolution, 600 cd/m² brightness, a 700:1 contrast ratio and 16.2 million display colors. The open-frame architecture allows the monitor to be incorporated into machines, equipment and custom industrial enclosures. Touch options include a 5-wire resistive single-touch screen or projected capacitive 2-point touch. The series supports analog VGA and digital DVI interfaces, an optional 9–36V DC module and software OSD for remote-control applications. Its extended -20°C to 60°C operating temperature range supports use in demanding industrial environments.
Specifications
| Key Attributes | |
|---|---|
| Screen Size | 12.1″ |
| Resolution | 1024 × 768 |
| Brightness | 600 cd/m² |
| Contrast Ratio | 16.2M |
| Viewing Angle | 160° (H) / 140° (V) |
| Touch Screen | 5-Wire Resistive Single Touch / Projected Capacitive 2-Point Touch |
| Touch Controller | PenMount 6000 / EETI EXC7200 |
| Dimensions | 323.8 × 263.8 × 40.3 mm |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Weight | 1.9 kg / 2.3 kg |
| Additional Information | |
|---|---|
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What is the screen size and resolution of the RBT LCD-KIT-F12A?
It features a 12.1-inch LCD with a resolution of 1024 × 768 pixels and brightness of 600 cd/m²
2
What touchscreen options are available?
The monitor supports a 5-wire resistive single-touch solution or a projected capacitive 2-point touchscreen.
3
Is the RBT LCD-KIT-F12A suitable for extended-temperature environments?
Yes. It has a specified operating temperature range of -20°C to 60°C and storage temperature range of -20°C to 70°C.
4
What other products are available in this range?
The additional available products are RBT LCD-KIT-F15A, RBT LCD-KIT-F17A and RBT LCD-KIT-F19A. The RBT LCD-KIT-F15A is also directly linked from this product page

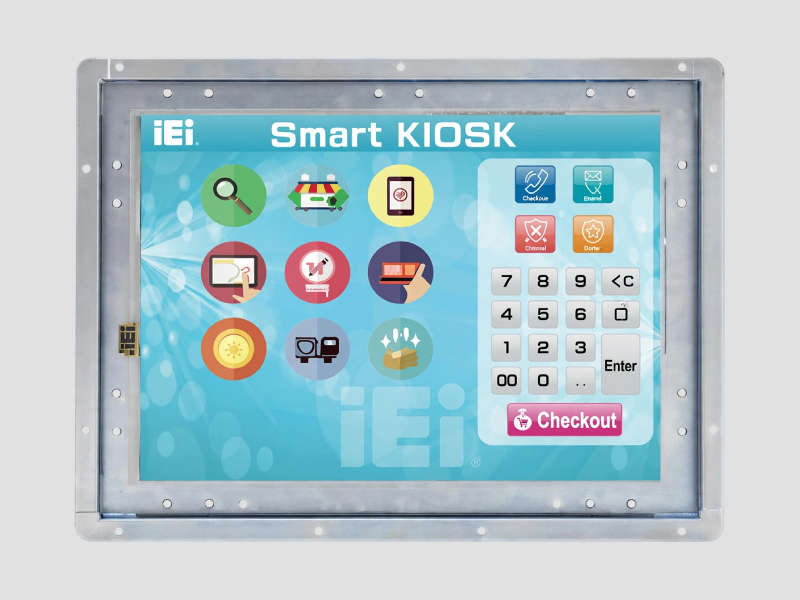

RBT LCD-KIT-F12A 12.1″ Open Frame Monitor
The 12.1–19-inch open-frame industrial display is designed for embedded integration, featuring a high-brightness panel exceeding 350 cd/m² with a long 50,000-hour operating life. It supports VGA and DVI interfaces for broad system compatibility and offers resistive, resistive touch window, and PCAP multi-touch options. With optional 9–36V DC input, -20°C to 60°C operating temperature, and software OSD for remote control, it provides reliable and flexible performance for industrial applications.
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
