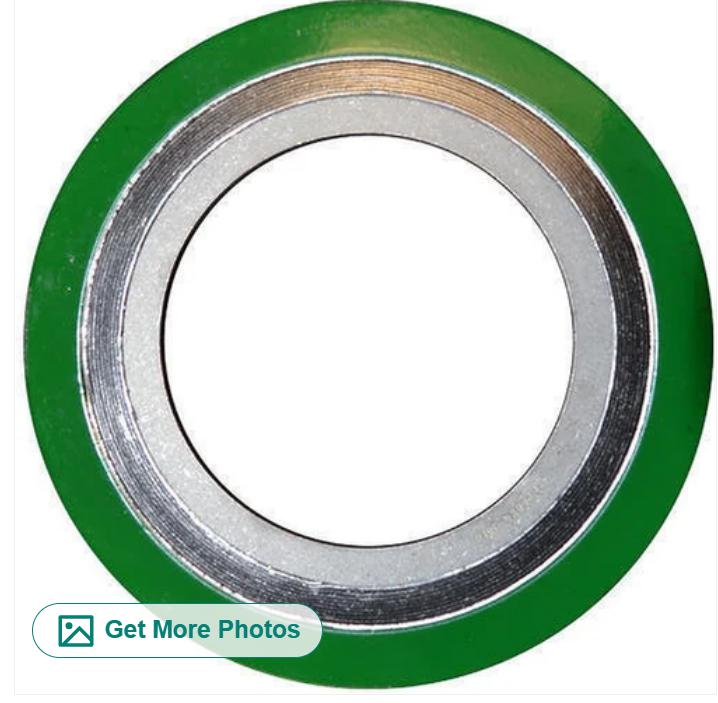

AIG Spiral Wound Gaskets are designed to withstand extreme temperatures and pressures while maintaining effective sealing. They are made by spirally winding alternating strips of metal and soft filler materials (such as graphite), providing resilience and strength. These gaskets are highly versatile and can be manufactured with or without inner and outer rings made from Carbon Steel or Stainless Steel, depending on the pressure-temperature rating.

Available Options:

• Sealing Element Thickness: 3.2 mm, 4.5 mm, 6 mm, 9 mm

• Sizes: From 1/4" to 48" NB and above (custom sizes on request)

• Inner/Outer Ring: Optional, available in CS/SS304/SS316

Performance Range:

• Temperature: Cryogenic to 1000°C

• Pressure: Vacuum to 6000 lbs

Product Application

• Petrochemical Plants

• Heat Exchangers & Pressure Vessels

• Oil & Gas Pipelines

• Power Plants & Boilers

• Marine & Offshore Platforms

• Chemical Processing Units

• High-pressure, high-temperature flange joints

Technical Specifications

• Metal Windings: SS304, SS316, or Carbon Steel

• Filler Material: Graphite (Mica or PTFE on request)

• Gasket Types:

  • Basic Type

  • With Inner Ring

  • With Outer Ring

  • With Inner & Outer Rings

• Conformance: ASME B16.20 / API 601
