Attal Gaskets

Other Details

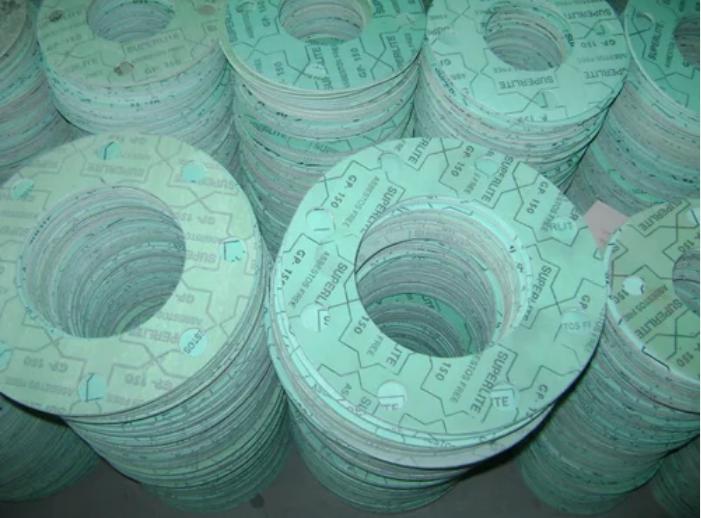

AIG’s Non Asbestos Flange Gaskets are specially developed using a combination of neoprene, aramid fibers, mineral fibers, and nitrile butadiene rubber (NBR) to ensure reliable sealing in demanding industrial applications.

These gaskets are a safe and effective alternative to traditional asbestos-based materials. They are designed to deliver exceptional oil and water resistance, making them ideal for use in low-pressure equipment, transformers, compressors, and general sealing applications across industries.

Key Features:

• 100% asbestos-free

• Excellent resistance to oil, water, and chemicals

• Environment-friendly material

• Suitable for both static and dynamic sealing

• Uniform compression and sealing performance

• Custom sizes and thicknesses available on request

Product Application

• Flange and pipe joint sealing

• Oil and gas pipelines

• Electrical transformers

• Air compressors and HVAC systems

• Industrial boilers and low-pressure vessels

• General-purpose industrial machinery

Technical Specifications

• Thickness Range: 0.1 mm and above

• Temperature Resistance: Up to 300°C

• Pressure Resistance: Up to 50 bar

• Material Composition: Neoprene + Aramid + Mineral Fibers + NBR

• Hardness: 65–75 Shore A

• Surface Finish: Smooth/As per requirement

• Standards Complied: IS/ASTM (on request)
