Attal Gaskets

Other Details

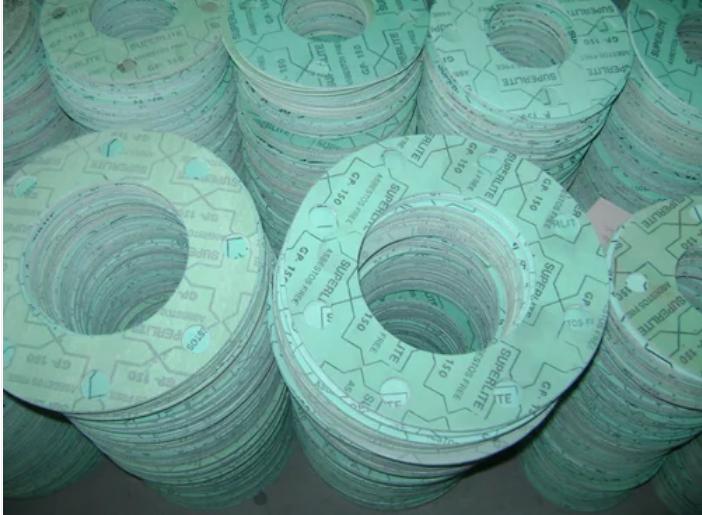

AIG’s Non Asbestos Gaskets are manufactured using high-quality compressed non-asbestos fibers (CNAF), making them ideal for high-performance industrial sealing needs. These gaskets offer superior resistance to oil, water, steam, and mild chemicals, ensuring long-lasting, reliable sealing at flange joints.

Customizable in various shapes and sizes, our gaskets meet industry demands for safety, durability, and environmental responsibility by replacing traditional asbestos materials.

Highlights:

• Asbestos-free and eco-friendly

• High compressibility and recovery

• Compatible with flanges of different sizes and standards

• Resistant to heat, oil, and general chemicals

• Suitable for both static and dynamic applications

Product Application

• Flange gasket sealing in pipelines

• Pumps, compressors, and heat exchangers

• Chemical processing units

• Oil and gas refineries

• General machinery and equipment

Technical Specifications

• Thickness: 3 mm (available in other sizes on request)

• Temperature Resistance: Up to 300°C

• Pressure Resistance: Up to 50 bar

• Material Composition: Aramid fiber + rubber binder

• Color: Green

• Hardness: 70–80 Shore A

• Tensile Strength: ≥ 12 MPa

• Complies With: IS, DIN, ASTM standards (as per request)
