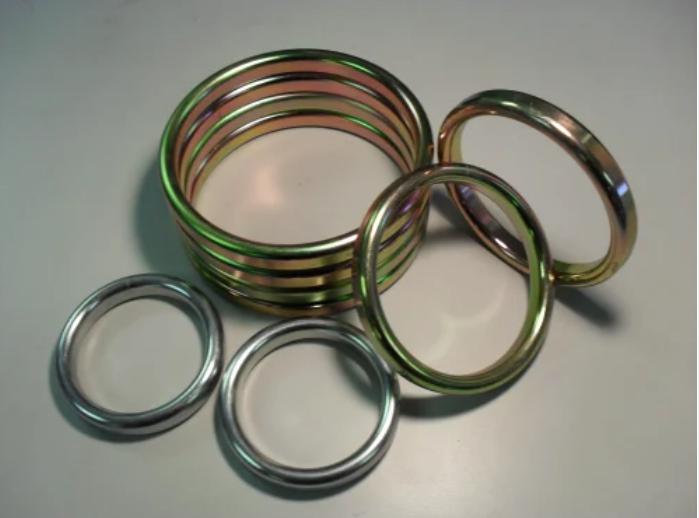

Ring Joint Gaskets (RTJ Gaskets) are precision metallic sealing rings designed for high-pressure and high-temperature applications. They are widely used in offshore and onshore petrochemical, refinery, and oil & gas industries.

These gaskets are manufactured in accordance with API 6A and ASME B16.20 standards and are available in the following types:

• R Type (Oval & Octagonal) – Suitable for flat bottom and grooved flanges.

• RX Type – Pressure-energized and compatible with R style rings of the same number.

• BX Type – High-pressure gaskets; not interchangeable with RX.

Available Materials:
Soft Iron, Low Carbon Steel, SS 304, SS 316, SS 321, SS 410, SS 347, F5, 4/6% Cr 1/2% Mo, and other alloys.

Product Application

• Oil & Gas Industries

• Refineries & Petrochemical Plants

• High-Pressure Flange Connections

• Offshore Drilling Platforms

• Heat Exchangers & Pressure Vessels

• Steam, Chemical, and Power Plants

Technical Specifications

• Size Range: 1/2" to 36"

• Pressure Ratings: 150 LBS to 15,000 LBS

• Type Options: Oval, Octagonal, RX, BX

• Design Standards: API 6A, ASME B16.20

• Surface Finish: Smooth finish for sealing efficiency

• Interchangeability:

  • R Oval: Only for bottom grooved flanges

  • R Octagonal: Flat bottom grooves

  • RX: Interchangeable with same-numbered R

  • BX: Not interchangeable with RX
