CNAF Jointing sheets S.AF-350c
High-temperature non-asbestos fiber gasket (carbon + aramid + NBR) designed for premium sealing against superheated steam, oils, and chemicals. Rated for 350 °C and 80 bar in industrial flange applications.
- FOB PriceNA
- Min Order QuantityNA
- Payment TermsL/C,Credit Card,Cash,Cheque,Demand Draft,Online
 designed for premium sealing against superheated steam, oils, and chemicals. Rated for 350 °C and 80 bar in industrial flange applications.
)
Other Details
CNAF S.AF‑350C is a high-performance, non-asbestos fiber gasket sheet combining carbon and aramid fibers with an NBR binder. Designed for extreme industrial environments, it offers excellent resistance to superheated steam and chemicals. Rated for premium flange sealing applications up to 350 °C and 80 bar, with ASME/BS grade approval.
Product Application
-
Superheated steam systems
-
High-temperature piping
-
Oil and chemical service
-
Industrial processing equipment
Technical Specifications
-
Max Peak Temperature: 480 °C
-
Max Operating Temperature: 350 °C
-
Max Operating Pressure: 80 bar
-
Density (ASTM F1315): 1.60–1.90 g/cm³
-
Compressibility (ASTM F36J): 7–17%
-
Recovery (ASTM F36J): ≥ 40%
-
Tensile Strength (ASTM F152): ≥ 8 N/mm²
-
Oil/Fuel Thickness Increase (ASTM F146): ≤ 10%

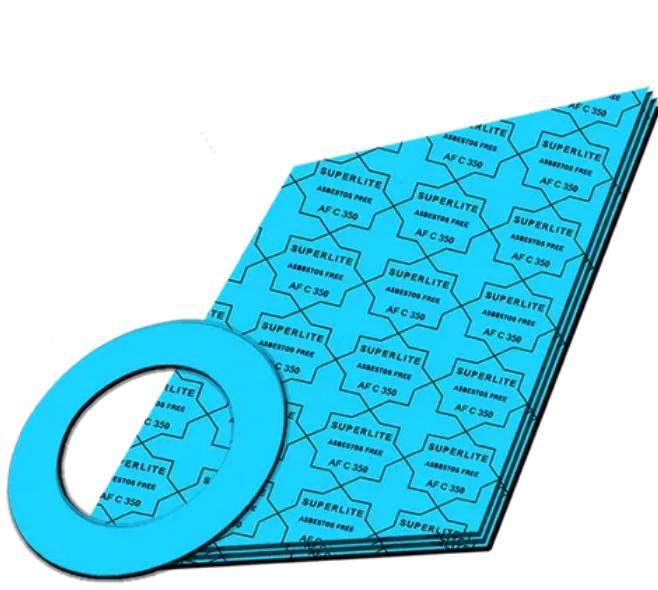

Images
