- Industrial automation and control systems
- Machine monitoring and operator interfaces
- HMI-based equipment control
- Factory production line monitoring
- Industrial data acquisition systems
- Process control and visualization
- Machinery and equipment integration
IN₹
Apparel & Fashion
Description

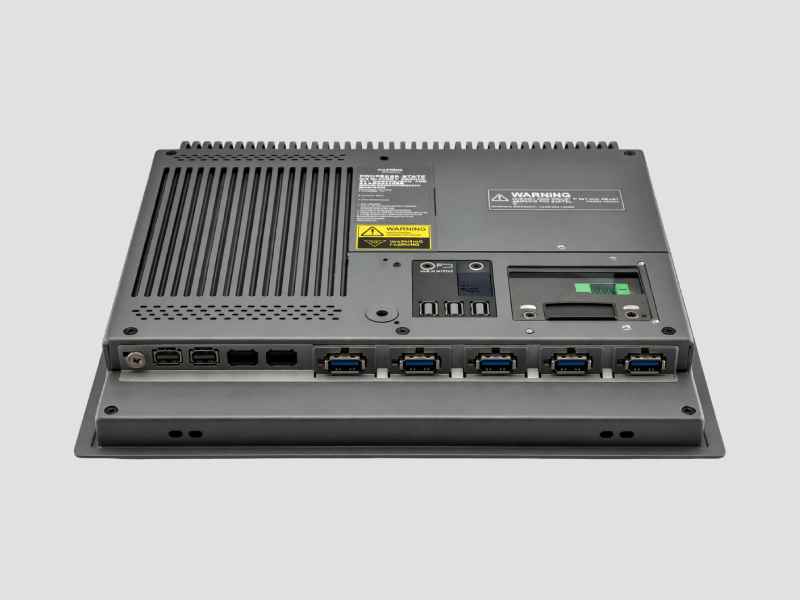

The RBT6000-6101T Light Industrial Panel PC combines industrial computing, touchscreen operation and flexible connectivity in a compact panel-mount system. It features a 10.4-inch XGA TFT LCD with LED backlighting and a five-wire analog resistive touchscreen offering 4096 × 4096 touch resolution. Powered by an Intel Atom N2800 dual-core 1.86 GHz processor with 2GB onboard DDR3 memory, the system supports SATA 2.5″ SSD, HDD and CFAST storage. Connectivity includes dual Gigabit Ethernet, USB and multiple RS232 serial ports with optional RS485 support. Its aluminum-magnesium alloy front panel provides IP65 protection, while the wide DC 9–30V input includes overcurrent, overvoltage and reverse-polarity protection.
Specifications
| Key Attributes | |
|---|---|
| Chipset | Intel NM10（TDP2.1W） |
| Memory | DDR3 2GB Onboard Memory |
| Display | Intel GMA3600, 512MB Shared Video Memory |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +80°C |
| Relative Humidity | 10–95% (Non-Condensing) |
| Cutout Dimensions | 387 × 286mm |
| Dimensions | 410 × 309 × 110.5mm |
| Resolution | 4096 × 4096 |
| Box Size | 300.5 × 234.5 × 51mm |
| Cut-Out Size | 282 × 222mm |
| Weight | 2.05kg |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What display does the RBT6000-6101T use?
It features a 10.4-inch XGA TFT LCD with 800 × 600 resolution, 400 cd/m² brightness and LED backlighting.
2
What processor and memory are provided?
The RBT6000-6101T uses an Intel Atom N2800 dual-core 1.86 GHz processor with 2GB onboard DDR3 memory.
3
What type of touchscreen is available?
It comes with a 10.4-inch five-wire analog resistive touchscreen with 4096 × 4096 touch resolution.
4
What other products are available in this range?
The related available products are RBT6000-6121T and RBT6000-A082, which are also linked directly from the RBT6000-6101T product page.
SKU: 1
RBT6000-6101T 10.4″ Light Industrial Panel PC
The 10.4-inch Industrial Panel PC features a durable magnesium alloy die-cast enclosure with a PET film surface and NEMA IP65 front-frame protection. It includes an Intel Atom N2800 1.86GHz dual-core processor, onboard 2GB DDR3 memory, 800×600 TFT LCD, Gigabit Ethernet, optional RS232/RS485 ports, and a wide 9–30V DC power input with overcurrent, overvoltage, and reverse-polarity protection.
