- Industrial automation systems
- Machine control and monitoring
- Embedded computing applications
- Factory equipment integration
- HMI and control systems
- Data acquisition systems
- Space-constrained industrial installations
IN₹
Apparel & Fashion
Description
The RBT uIBX-210-CV-N2600 is a compact embedded computer featuring an Intel Atom N2600 dual-core 1.6 GHz processor with Intel NM10 chipset. Its slim fanless construction is designed for applications where reliable computing performance and efficient use of installation space are required. The system supports up to 2GB DDR3 memory and provides a 2.5-inch SATA HDD bay. Connectivity includes four USB 2.0 ports, Gigabit Ethernet, two RS-232 ports and one RS-422/485 interface. VGA and HDMI outputs support dual-display configurations, while a full-size PCIe Mini slot is reserved for expansion such as an optional Wi-Fi module. The system operates from a 12V single-voltage design with AT/ATX power mode selection.
Specifications
| Key Attributes | |
|---|---|
| Processor | Intel® Atom™ N2600, 1.6 GHz |
| Chipset | Intel® NM10 |
| System Memory | 2 GB DDR3 SO-DIMM, 1 × 204-pin, Max. 2 GB |
| Expansion Slot | 1 × Full-size PCIe Mini, reserved for Wi-Fi |
| USB Ports | 4 × USB 2.0 |
| Ethernet | 1 × RJ-45, Realtek 8111E PCIe GbE |
| Serial Ports | 2 × DB-9 RS-232, 1 × RJ-45 RS-422/485 |
| Display Output | 1 × VGA, 1 × HDMI; up to 1920 × 1200 / 1920 × 1080 |
| Storage | 1 × 2.5″ SATA HDD bay |
| Cooling | Fanless |
| Operating Temperature | 0°C to 50°C with Airflow |
| Dimensions | 146.6 × 132 × 45.2 mm |
| Weight | 980 g / 1.8 kg |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
Which processor is used in the RBT uIBX-210-CV-N2600?
The system features an Intel Atom N2600 dual-core processor operating at 1.6 GHz with an Intel NM10 chipset.
2
What display connectivity does this Embedded PC provide?
It provides one VGA and one HDMI output with dual-display support. VGA supports resolutions up to 1920 × 1200, while HDMI supports up to 1920 × 1080.
3
Is the RBT uIBX-210-CV-N2600 fanless?
Yes. It uses a fanless cooling design and has a specified operating temperature range of 0°C to 50°C with airflow when using mSATA
4
What other products are available in this range?

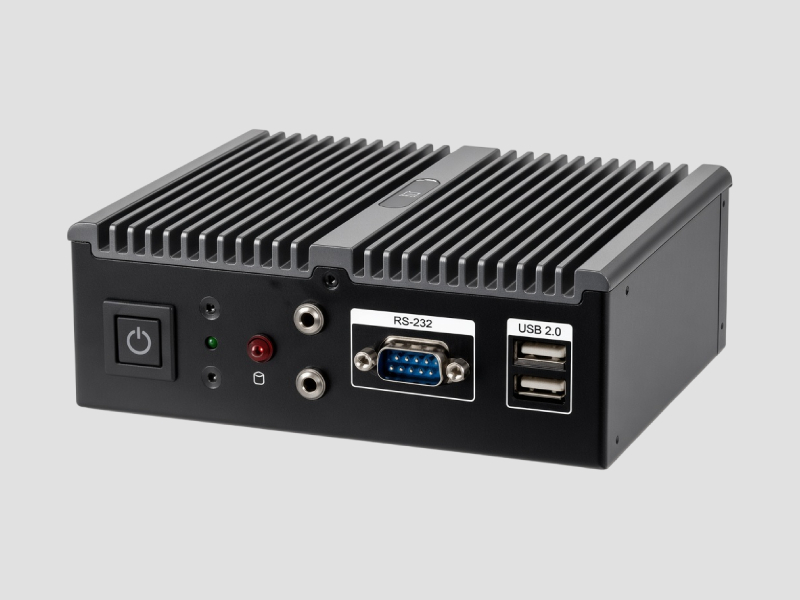

Available related products include RBT uIBX-230-BT, RBT uIBX-250-BW, RBT365F3A(W)-2930-B, RBT376C55(W)-2930-B, RBT377F631(W) Series and RBT400P591(W)-3160D-B.
SKU: 1
RBT uIBX-210-CV-N2600 Slim Compact Embedded PC
This slim and compact embedded system features a 3rd Gen Intel® Atom™ N2600 dual-core processor with DDR3 memory support up to 2GB. Its 12V single-voltage design supports flexible AT/ATX power modes and dual-display output through VGA and HDMI interfaces. It includes a PCIe Mini card slot and comprehensive I/O with four USB ports, VGA, HDMI, three COM ports, and audio connectivity, making it suitable for space-constrained embedded applications.
