Description
The RBT R12IB3S-MSM2(HB) is a rugged Military Grade Panel PC featuring a 12.1-inch TFT display with 1024 × 768 resolution and projected capacitive multi-touch functionality. Its edge-to-edge design, full IP65 protection and special M12 waterproof connectors make it suitable for environments requiring protected and reliable computing. The system is powered by an Intel Celeron Bay Trail-M N2930 1.83GHz processor with 2GB DDR3L memory, expandable up to 8GB, and 64GB mSATA SSD storage. It incorporates a fanless cooling system, TPM 1.2 security support, dual Gigabit LAN and industrial I/O connectivity. The unit also supports VESA and panel mounting for flexible system integration.
Specifications
| Key Attributes | |
|---|---|
| Size | 12.1″ TFT |
| Active Display Area | 220.416 × 129.15 mm (H × V) |
| Contrast Ratio | 700:01:00 |
| Resolution | 1024 × 768 |
| Maximum Colors | 16.2M |
| Waterproof Connectors | IP65 Grade |
| USB Port | 1 × USB 2.0 (M12 Type) |
| COM Port | 1 × RS232 (M12 Type); Optional RS422/RS485 |
| Ethernet | 1 × LAN (M12 Type) |
| Speaker | 1 × 1 Watt |
| Operating Temperature | -10°C to 55°C |
| Dimensions (W × H × D) | 296.2 × 226.7 × 45.5 mm |
| IP Protection | Full IP65 |
| Power Consumption | 24 W |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What type of display does the RBT R12IB3S-MSM2(HB) have?
It features a 12.1-inch TFT display with 1024 × 768 resolution and projected capacitive multi-touch functionality
2
Is the RBT R12IB3S-MSM2(HB) protected against harsh environments?
Yes. The unit offers full IP65 protection and uses waterproof M12-type connectors for industrial connectivity.
3
What processor and memory does this Panel PC support?
It uses an Intel Celeron Bay Trail-M N2930 1.83GHz processor with 2GB DDR3L memory, expandable up to 8GB.
4
What other products are available in this range?
Available related products include RBT R17IH3S-MLA1-89, RBT R19IH3S-MLA3-89, RBT W10IB3S-MSH1(HB), and RBT W24IH3S-MLS1-89.
SKU: 1

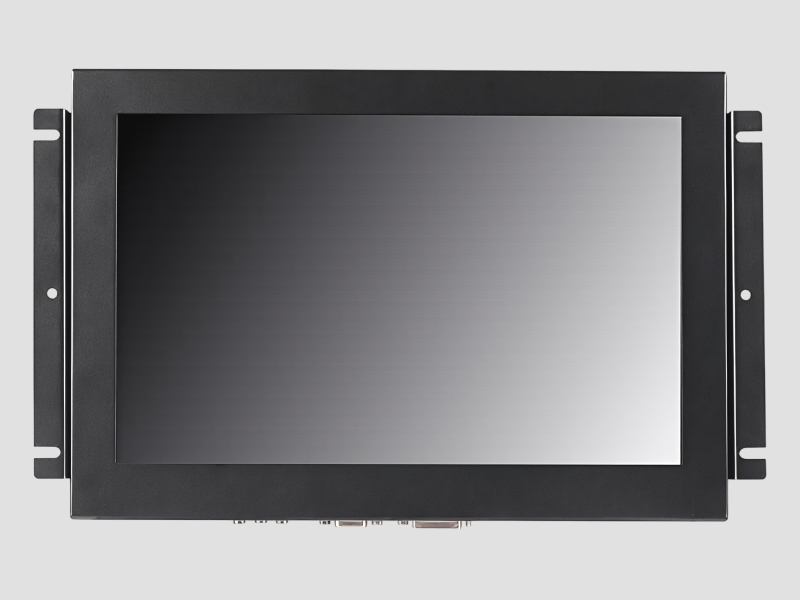

RBT R12IB3S-MSM2(HB) 12.1″ Military Grade Panel PC
The 12.1-inch Industrial Panel PC features a 1024×768 projected capacitive multi-touch screen with an edge-to-edge design. Its fanless cooling system ensures reliable, low-power operation, while M12 waterproof connectors and full IP65 protection provide durability in demanding industrial environments. It includes LAN, RS232, and USB connectivity.
