Description
The RBT-N402 is a compact 4U server chassis developed for rack-mounted industrial and server computing systems. It supports a standard 12″ × 9.6″ ATX motherboard and provides seven rear-side ATX expansion slots for flexible system configuration. Heavy-duty 1.0 mm SGCC steel construction provides a robust enclosure for demanding installations. Storage capacity includes two 5.25-inch and six internal 3.5-inch drive bays. Cooling is handled by one 12 cm fan and two 8 cm dual ball-bearing fans. The chassis also supports a standard PS-2 ATX or PS-2 size mini-redundant 300W–500W power supply, along with an optional 26-inch ball-bearing sliding rail.
Specifications
| Key Attributes | |
|---|---|
| Dimensions | 482 × 177 × 382 mm (19″ × 7″ × 15″) |
| Material Construction | Heavy-Duty High-End SGCC Steel, 1.0 mm Thickness |
| Motherboard Size | ATX, 12″ × 9.6″ |
| Expansion | 7 × ATX Rear Slots |
| USB Ports | 2 × USB 2.0 |
| Drive Bays | 2 × 5.25″ + 6 × 3.5″ Internal |
| Sliding Rail | 26″ Ball-Bearing Sliding Rail |
| Operating Temperature | Up to 50°C (122°F) |
| Operating Humidity | Up to 90% |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What motherboard does the RBT-N402 support?
The RBT-N402 supports a standard ATX motherboard measuring 12″ × 9.6″
2
How many drive bays are available in the RBT-N402?
It provides eight drive bays in total, consisting of two 5.25-inch bays and six internal 3.5-inch bays.
3
What cooling system does the RBT-N402 use?
The chassis features one 12 cm fan and two 8 cm dual ball-bearing fans to support effective system cooling.
SKU: 1

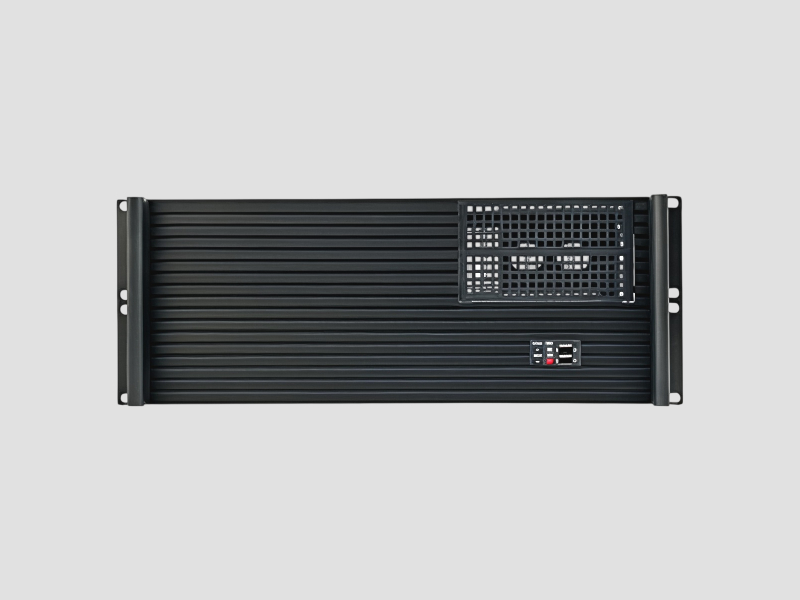

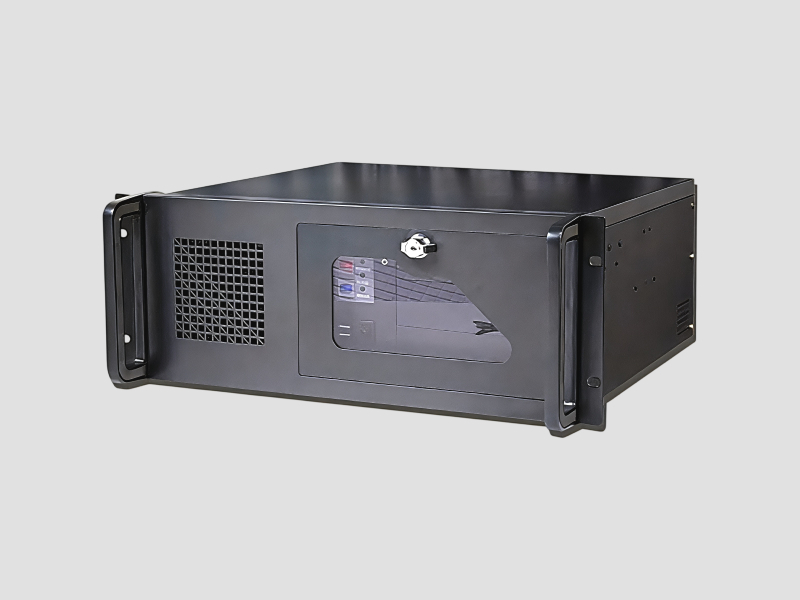

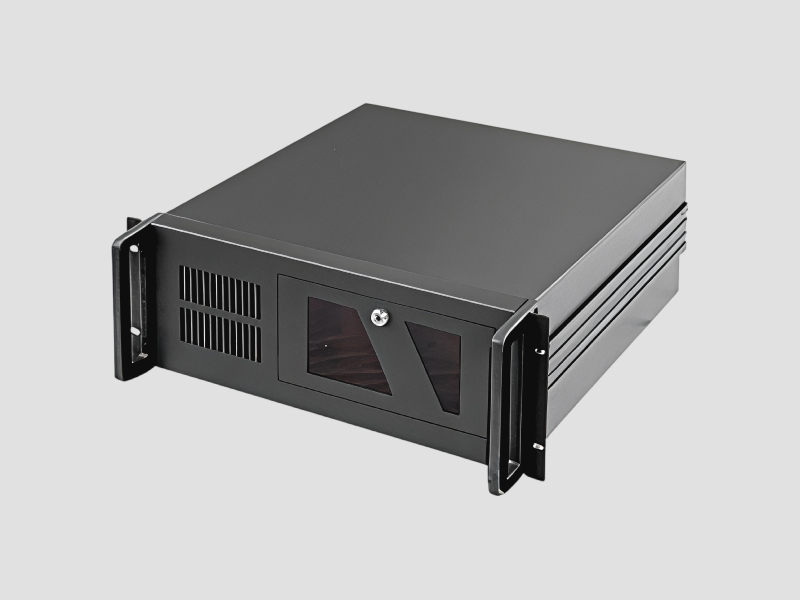

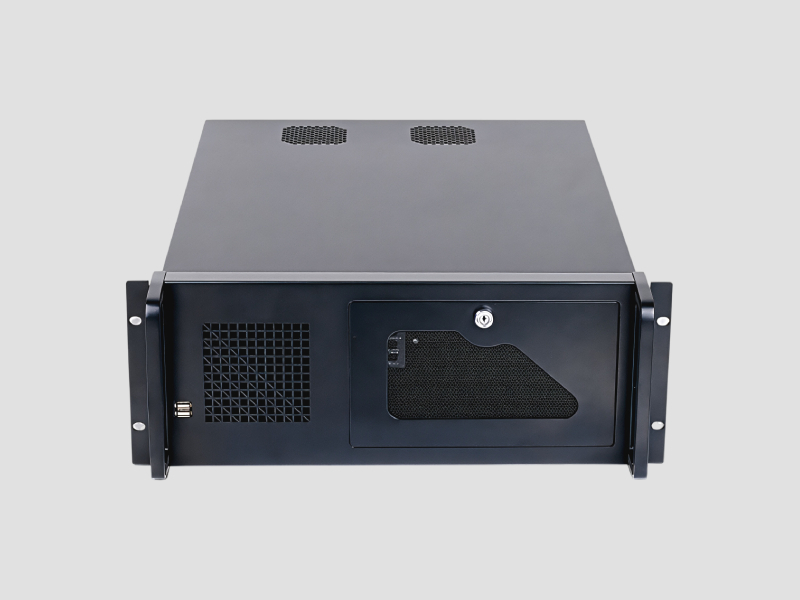

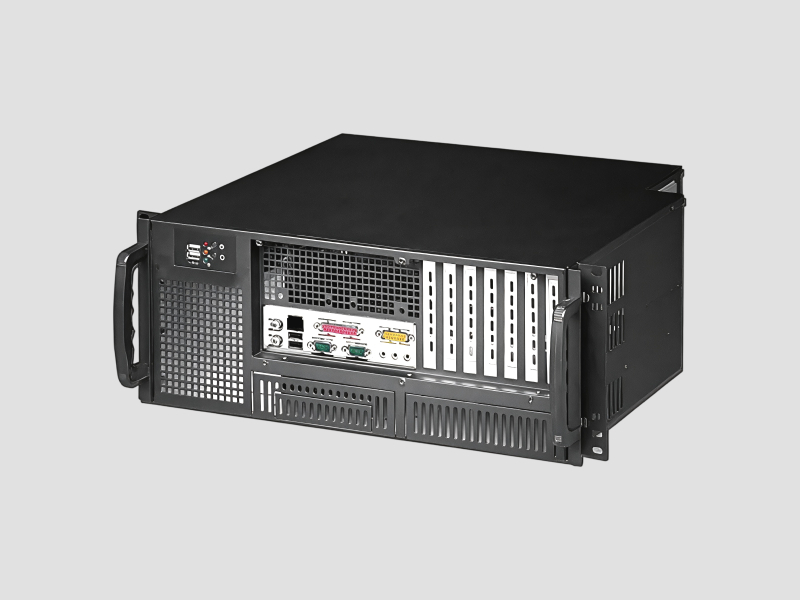

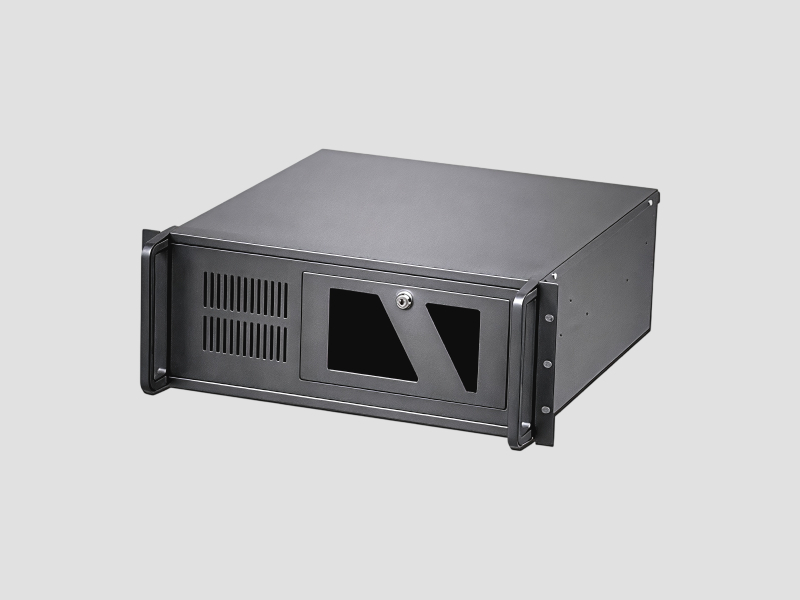

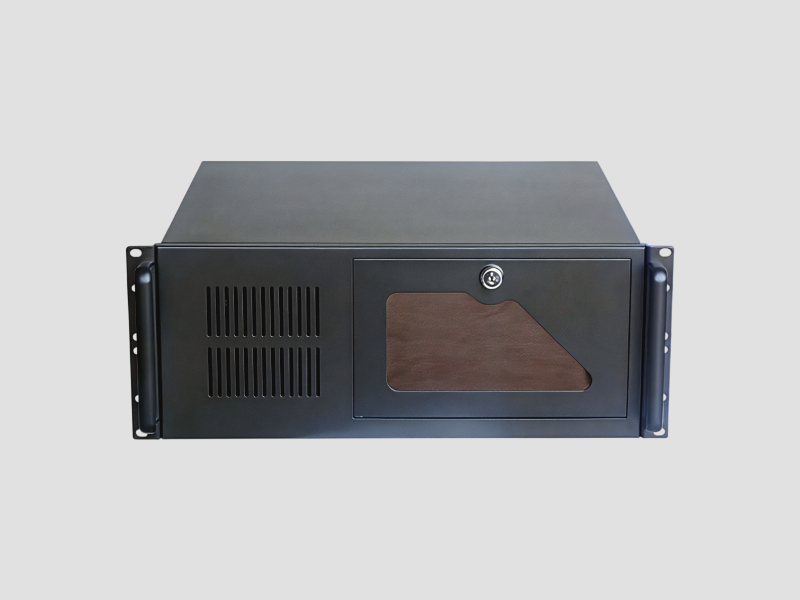

RBT-N402 4U Compact Server Chassis
The RBT-N402 is a 4U Compact Server Chassis designed for industrial computing and rack-mounted server applications where efficient use of space, storage and cooling is required. Built from heavy-duty 1.0 mm SGCC steel, it supports standard ATX motherboards and provides seven rear expansion slots. The chassis offers eight drive bays, including two 5.25″ and six internal 3.5″ bays. A 12 cm fan and two 8 cm dual ball-bearing fans provide effective cooling, while front-access design, USB connectivity and optional sliding rails simplify installation and maintenance.
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
