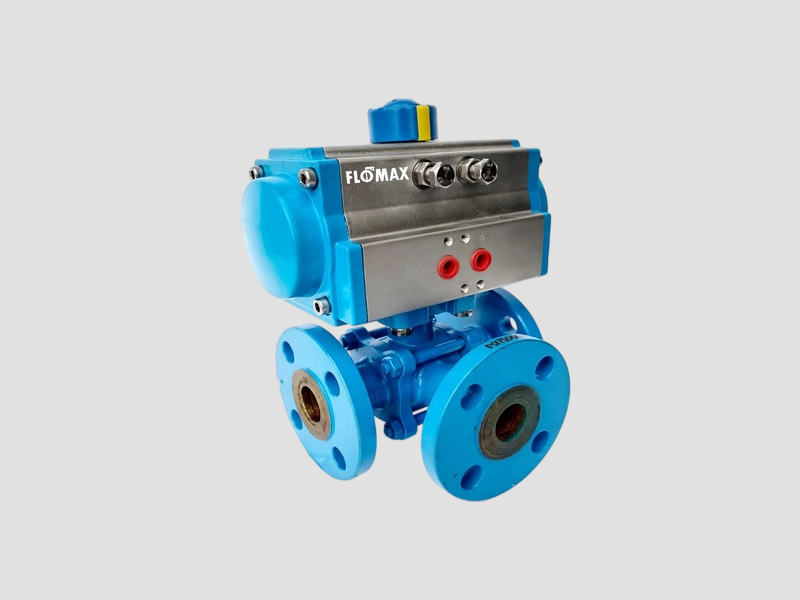

FLOMAX Pneumatic Operated Ball Valve is a three-piece floating ball valve designed for automated isolation and flow control in industrial pipelines. It is operated by a double-acting pneumatic actuator that provides quick quarter-turn opening and closing. The valve is available with CI, carbon steel, SS304, and SS316 body options to meet different application requirements. Screwed sizes are available from ½ inch to 4 inches, while flanged variants are available from ½ inch to 14 inches. The valve supports operating pressure up to 60 kg/cm² and is offered with PTFE, GFT, CFT, or PEEK seals. Its maximum operating temperature is up to 180°C with PTFE seals and up to 250°C with PEEK seals. Available screwed, socket-weld, and flanged connections make it suitable for various industrial piping systems.
| Key Attributes | |
|---|---|
| Actuator Type | Double acting |
| Brand | FLOMAX |
| Product Type | Pneumatic Operated Ball Valve |
| Valve Design | Three-piece floating ball valve |
| Operation | Pneumatic quarter-turn |
| Displayed Valve Size | 2 inches |
| Nominal Pressure | PN25 |
| Minimum Order Quantity | 1 piece |
| Additional Information | |
|---|---|
| Country of Origin | India |
Industrial process-automation systems
Air and compressed-air pipelines
Water-treatment and distribution plants
Oil and gas handling systems
Chemical-processing facilities
Pharmaceutical and food-processing systems
Utility and fluid-transfer pipelines
Automated isolation and shut-off systems
A double-acting pneumatic actuator uses compressed air to rotate the valve ball by 90 degrees, allowing the valve to open or close the flow.
The valve is available in cast iron, carbon steel, SS304, and SS316 body materials, depending on the media and operating conditions.
The valve can handle pressure up to 60 kg/cm². The suitable pressure rating depends on the selected size, material, and end connection.
It can operate at temperatures up to 180°C with PTFE seals and up to 250°C with PEEK seals under suitable operating conditions.
The valve is available with BSP or NPT screwed ends, socket-weld ends, and Class 150 or Class 300 flanged connections.
