Description

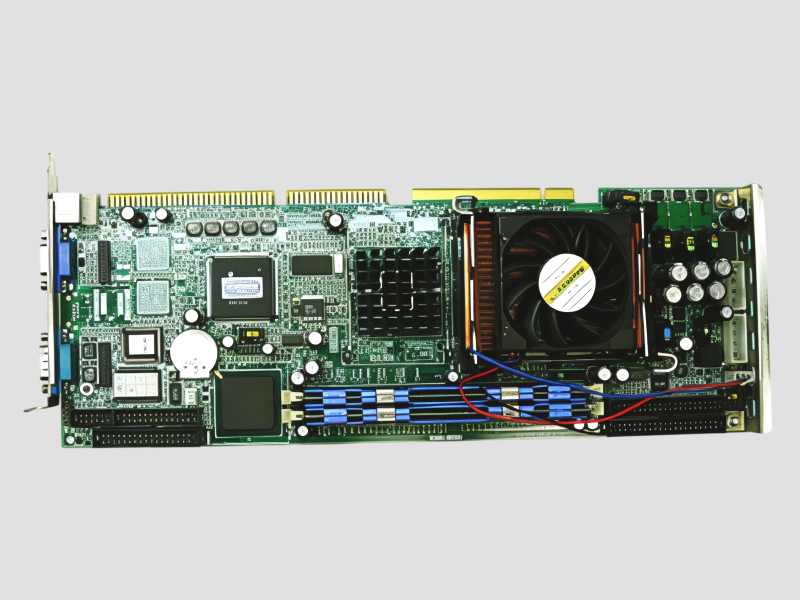

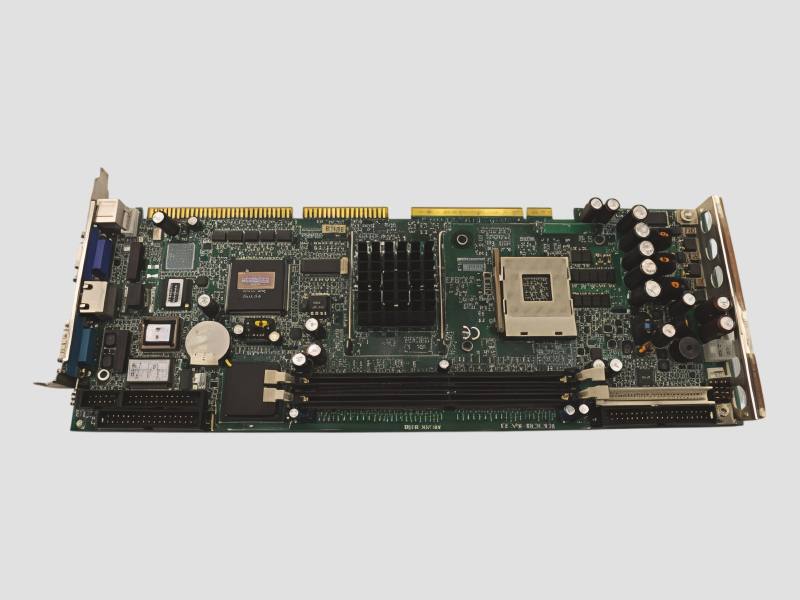

The PCA-6005E2 is a full-size industrial Single Board Computer designed around a Socket 478 platform supporting Pentium 4 and Celeron processors with a 400 MHz front-side bus. Integrated AGP 4X VGA uses shared system memory up to 64 MB, while two 184-pin DIMM sockets provide system memory expansion.

For industrial system integration, the board provides dual 10/100 Mbps Ethernet, two RS-232 serial ports, up to six USB 1.1 ports, EIDE and FDD interfaces, and a parallel port. It also incorporates Adaptec AIC-7899 Ultra 160 SCSI, onboard hardware monitoring, Award Flash BIOS and a 255-level watchdog timer

Specifications

Key Attributes
Operating Temperature0°C To 60°C
Ethernet ConnectionOnboard RJ-45 Connector × 2
FDD InterfaceSupports Up To Two FDDs
Keyboard/Mouse ConnectorSupports One Standard Connector
Serial Ports2 × RS-232 Serial Ports
Dimensions338 × 122 mm
USB InterfaceUp To 6 × USB 1.1 Ports
ChipsetRealtek RTL8139C
Power Supply Voltage+5 V ± 12 V
System Memory2 × 184-Pin DIMM Sockets
Watchdog Timer255-Level Timer Intervals
Additional Information
SKU1
Country of OriginIndia

Application

  1. Industrial automation systems
  2. Industrial computer systems
  3. Machine control applications
  4. Factory monitoring equipment
  5. Embedded computing systems
  6. Data acquisition and processing
  7. Industrial control systems

Payment Terms

Payment Methods
  • cash
  • cheque

Shipping & Logistics

Shipping InternationallyNo
Methods
  • Road
IncoTerms
  • FOB
Dispatch Lead timeShips in 7 Days

Company Profile

RB Technologies
RB Technologies, Tamil Nadu
TruVerified
IndiaTamil Nadu, India
9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
Which processors does the PCA-6005E2 support?

The PCA-6005E2 supports Socket 478 Pentium 4 and Celeron processors with a 400 MHz FSB.

2
What network connectivity is available on the PCA-6005E2?

It provides dual PCI 10/100 Mbps Ethernet with two onboard RJ-45 connectors.

3
What I/O interfaces does the PCA-6005E2 provide?

The board provides two RS-232 serial ports, up to six USB 1.1 ports, EIDE and FDD support, a parallel port and dual Ethernet connectivity.

4
What other products are available in this range?

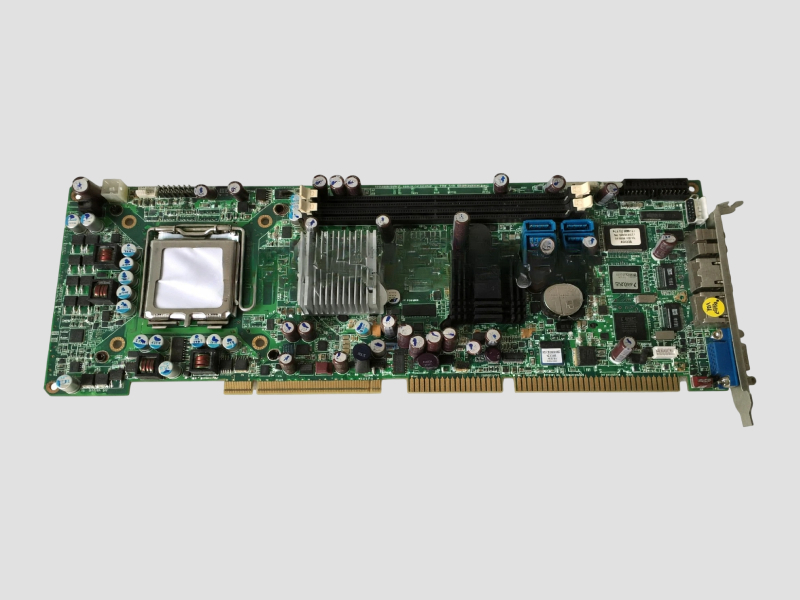

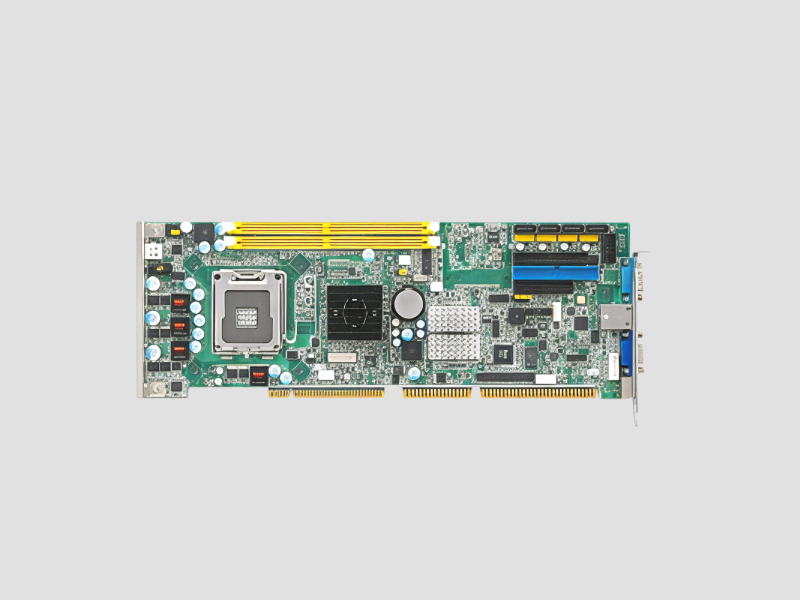

The additional available products are PCA-6010, PCA-6186, PCA-6187VG, PEAK 736VL2, PEAK 760VL2 and PEAK 765.

SKU: 1

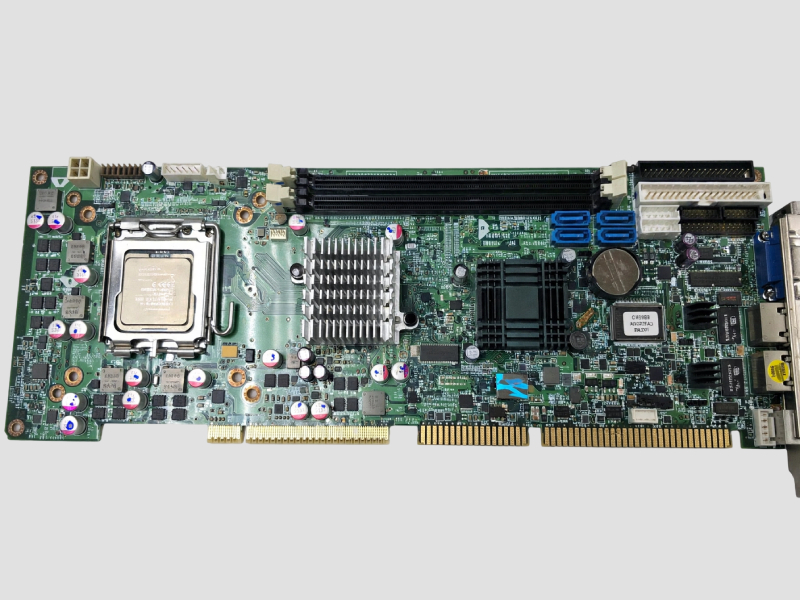

PCA-6005E2 Full Size Single Board Computer

This industrial motherboard features a SiS 650 chipset with 400MHz FSB and supports Socket 478 processors up to 2.2GHz. It includes an integrated high-performance AGP 4X VGA controller with up to 64MB shared system DRAM and an onboard Adaptec AIC-7899 Ultra160 SCSI interface supporting transfer rates up to 160MB/s. The board provides CMOS automatic backup and restore for BIOS setup data protection, onboard hardware monitoring, and dual 10/100Base-T Ethernet through Realtek 8139C controllers. With a pure PCI architecture and no ISA support, it is suitable for reliable industrial computing applications.

Min. Order Quantity: 1 piece
