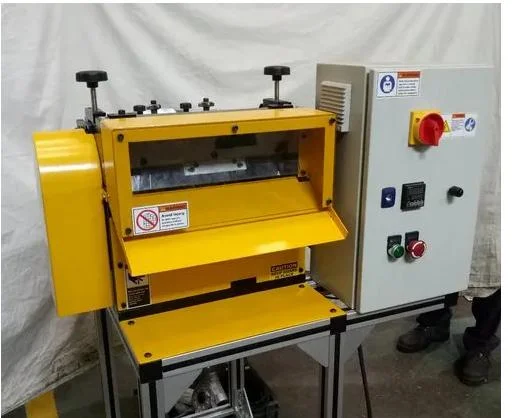

The Insulation Paper Forming and Cutting Machine is an automated solution designed to transform rolls of insulation material into precisely formed and cut components. It integrates advanced PLC control with a user-friendly HMI interface, allowing operators to pre-set cut lengths and production quantities effortlessly. The machine accepts input material with a width matching the developed width of the final folded shape. It can be configured for different profiles, including square-cornered U shapes and rounded U shapes, by changing the forming rollers. An optional heating arrangement is available to ensure shape retention for rounded profiles. Operating on a 230V single-phase power supply and utilizing compressed air for the cutting action, the machine is fully guarded to prioritize operator safety and is built for durability in industrial environments.

This machine is indispensable for industries involved in electrical equipment manufacturing, such as producers of motors, alternators, transformers, and generators. It is also widely used by automotive component suppliers for creating insulation parts in starters and other electrical systems. The ability to produce both custom-formed closers and plain cut sheets makes it a versatile asset for any business requiring high-volume, consistent insulation components. Its precision directly impacts the performance and reliability of the final electrical products, making it a critical piece of equipment for quality-conscious manufacturers.

The business value of this machine lies in its reliability, automation, and contribution to operational efficiency. It eliminates manual cutting errors, ensures consistent product dimensions, and significantly boosts production output. The automatic stop function after a preset quantity prevents overproduction and material waste. Its robust construction and safety features minimize downtime and operational risks. By delivering uniform quality and enabling faster turnaround, this machine provides a strong return on investment, helping businesses meet demanding production schedules and maintain a competitive edge in the market.

Key Features:
- Fully automated operation with PLC control for precise, repeatable shaping and cutting.
- User-friendly HMI interface for easy setting of cut length and production quantity.
- Versatile forming capability for square-cornered U, rounded U, and custom shapes via interchangeable rollers.
- Optional integrated heating system to ensure permanent shape retention for rounded paper profiles.
- Robust safety design with full guarding and operates on standard 230V single-phase power with pneumatic cutting.

Benefits:
- Increases production efficiency and output by automating the forming and cutting process.
- Ensures high precision and consistency in every insulation component, enhancing final product quality.
- Reduces material waste and labor costs through automated operation and preset quantity control.
- Offers operational flexibility to produce a wide range of insulation shapes for different applications.
- Provides a reliable and safe industrial solution built for durability and long-term performance.
