Description

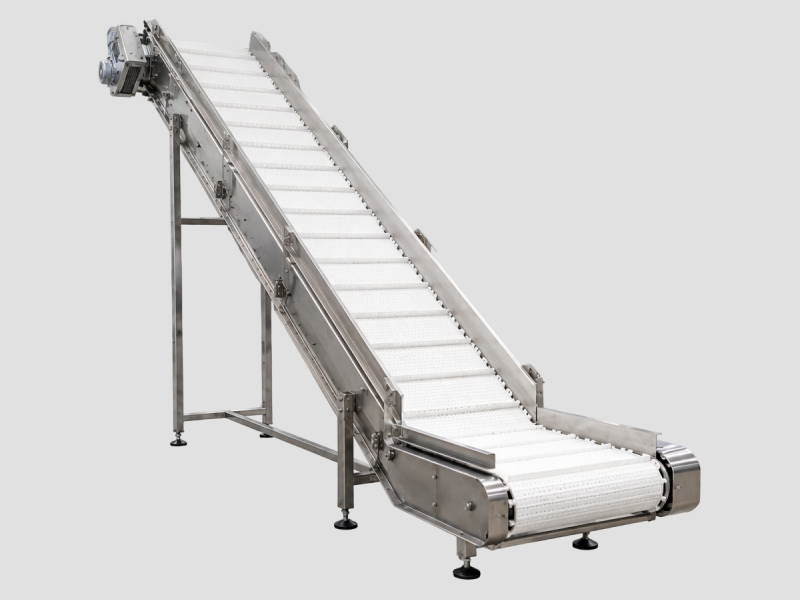

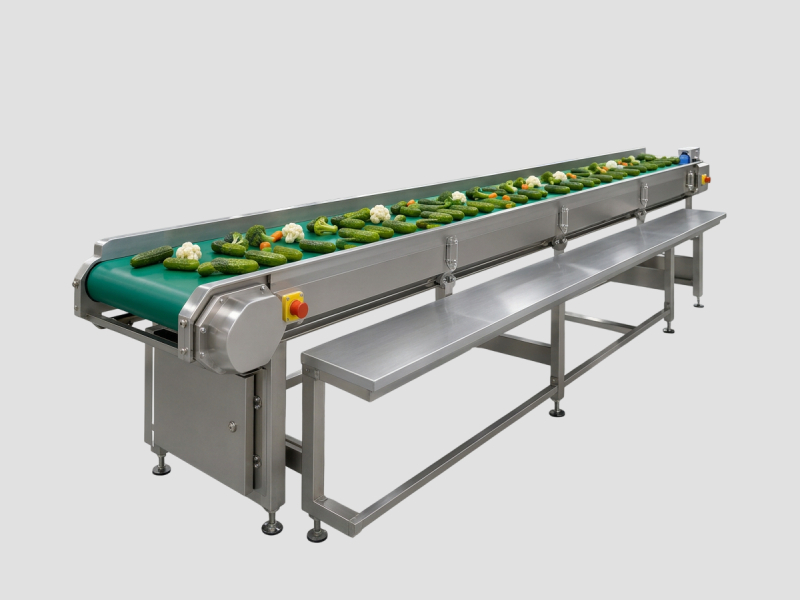

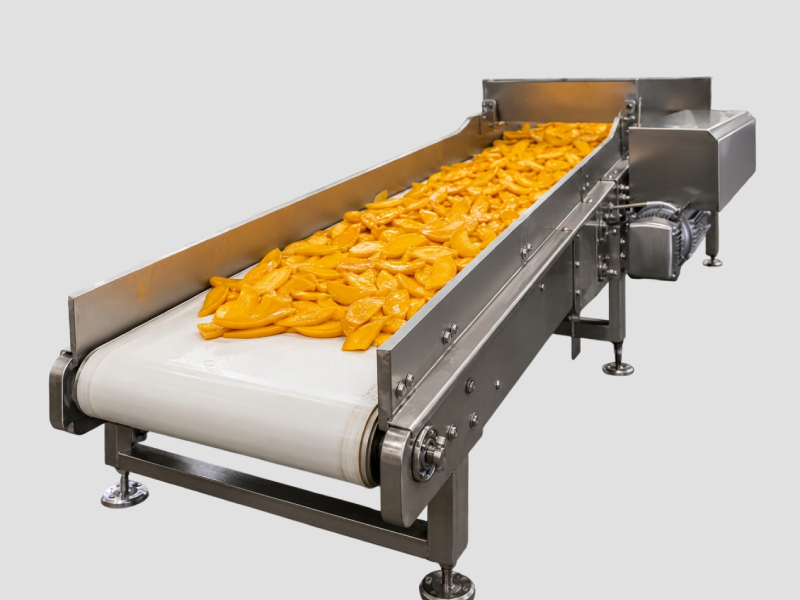

Commercial Food Product Belt Conveyor provides reliable continuous conveying for fruits, vegetables, gherkins, and other products used in food processing operations. Its design supports smooth transportation between different processing stages and can help reduce manual movement of materials. Food-grade SS304/SS316 stainless steel construction provides corrosion resistance and supports hygienic handling. The system features a 600 mm belt width and 5000 mm belt length, with a designed conveying capacity of approximately 1000 kg/hr. A belt speed of 10 m/min provides consistent product movement, while the 0–20° inclination range allows installation across different elevations. The 5 mm belt, 60 mm roller diameter, and 200 mm drive pulley provide dependable conveyor operation. The system can be customized and integrated with other processing and packaging equipment.
Specifications
| Key Attributes | |
|---|---|
| Product Type | Belt Conveyor |
| Conveyor Capacity | 1000 kg/hr |
| Belt Width | 600 mm |
| Belt Length | 5000 mm |
| Belt Speed | 10 m/min |
| Belt Thickness | 5 mm |
| Roller Diameter | 60 mm |
| Drive Pulley Diameter | 200 mm |
| Conveyor Type | Food Processing Belt Conveyor |
| Application | Food Product Transportation |
| Operation | Continuous |
| Integration | Washing, Sorting, Grading & Packing Lines |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Terms |
|
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
|
Company Profile
Sujay Industries, Karnataka
Karnataka, India
Karnataka, India9 yrs
Manufacturer
Turn Over
₹25 Lakhs – ₹1 Crore
Factory Details
Factory Size1000-5000 sqm
No. of Production Lines100
Main Markets
Southeast Asia
Frequently Asked Questions
1
What is a Belt Conveyor used for?
The Belt Conveyor is designed for continuous transportation of fruits, vegetables, gherkins, and other food products between different stages of commercial processing.
2
What is the conveying capacity of this Belt Conveyor?
The specified conveying capacity is approximately 1000 kg/hr, depending on product characteristics and operating conditions.
3
What are the belt dimensions?
The specified belt dimensions include a 600 mm width and 5000 mm length, with a belt thickness of approximately 5 mm.
4
Can the conveyor be installed at an angle?
Yes. The conveyor can be configured with an inclination ranging from 0° to 20°, depending on the required product elevation and plant layout.
5
Can this conveyor be integrated with other food processing equipment?
Yes. It can be designed for integration with washing, sorting, grading, blanching, filling, and packing equipment, with customization available for belt width, length, speed, elevation, capacity, and plant layout.
SKU: 1
Belt Conveyor
Commercial Belt Conveyor for fruits and vegetables is designed to maintain a smooth and consistent flow of food products during processing. It features a 600 mm wide, 5000 mm long belt with 10 m/min conveying speed and approximately 1000 kg/hr capacity. Its durable construction is suitable for continuous industrial food handling applications.
