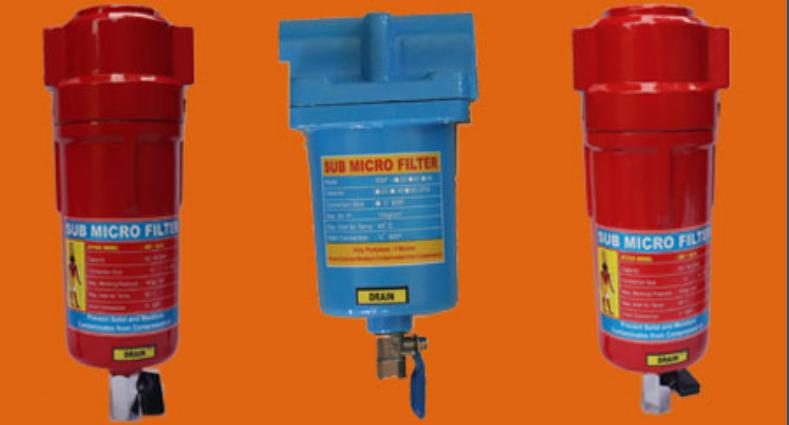

SUB MICRO FILTER - SF

Additional Details

The SAI SUB MICRO FILTER - SF is engineered to deliver exceptional air purity in compressed air systems by removing oil mist, aerosols, and microscopic particles as small as 0.01 microns, ensuring clean, dry air downstream.

This filter features:

• High-efficiency filtration up to 99.999%

• Durable aluminum body with corrosion-resistant coating

• Replaceable filter element for cost-effective maintenance

• Drain port for automatic/manual discharge of collected oil and condensate

Ideal for applications requiring ultra-clean air, such as instrumentation, food processing, paint booths, and precision machinery.

Technical Specifications

• Model: SF

• Filtration Efficiency: 0.01 micron, 99.999%

• Pressure Range: 0 to 16 bar

• Material: Aluminum housing, high-efficiency synthetic filter media

• Port Sizes Available: ¼”, ⅜”, ½”, ¾”, 1”, 1.5”, 2” BSP

• Flow Rate: Up to 2000 L/min (varies by model)

• Drain Type: Manual / Auto drain optional

• Operating Temperature: 5°C to 60°C

• Mounting: Vertical inline

Applications

• Pneumatic systems for CNC and automation

• Packaging and food processing lines

• Spray painting and finishing operations

• Electronics manufacturing

• Instrumentation requiring ultra-dry air

• Preventing oil contamination in downstream equipment
