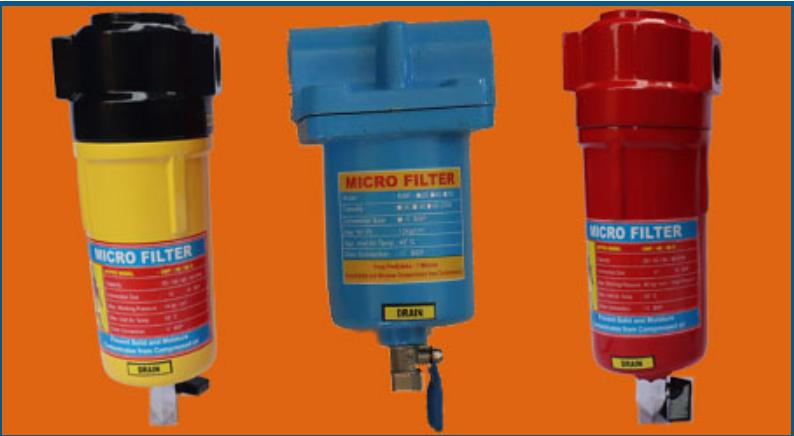

MICRO FILTERS

Additional Details

The MICRO FILTER is engineered to provide effective filtration of compressed air by removing fine particulates such as dust, moisture, and oil aerosols. Constructed with high-grade polypropylene filter media and activated carbon granules, this filter ensures enhanced air quality, protecting sensitive equipment and improving system performance.

Key Features:

• Filtration precision: 1 to 5 microns

• 85% filtration efficiency

• Compact and durable design

• Compatible with a variety of pneumatic systems

• Easy maintenance and long filter life

Technical Specifications

• Filter Media: Polypropylene with activated carbon granules

• Filtration Efficiency: 85%

• Particle Filtration Size: 1 to 5 microns

• Operating Pressure Range: Up to 16 bar

• Temperature Range: 5°C to 60°C

• Port Sizes Available: ¼”, ⅜”, ½”, ¾”, 1”, 1.5”, 2” BSP

• Drain Option: Manual or Auto drain

• Body Material: Aluminum or engineering-grade plastic

Applications

• Removal of fine dust, oil mist, and water vapor in compressed air systems

• Suitable for use in pneumatic machinery, automation lines, spray painting, food & pharma processing

• Ideal for pre-filtration in critical air treatment setups
