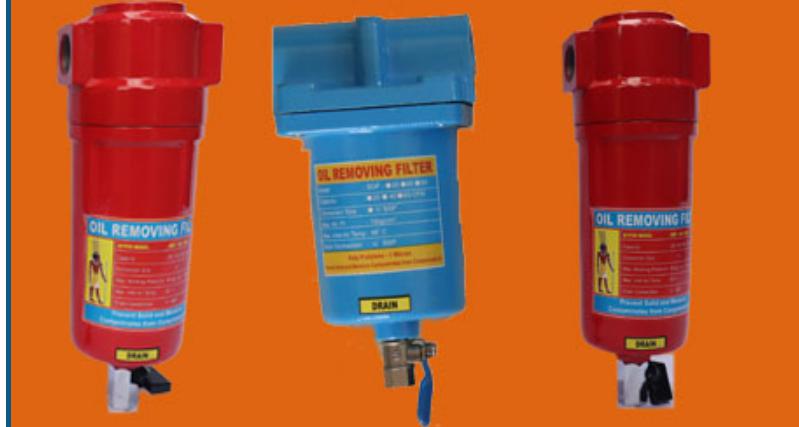

OIL REMOVING FILTER

Additional Details

The OIL REMOVING FILTER is specifically designed to eliminate oil particles, dust, and moisture from compressed air systems. Featuring polypropylene filter media combined with activated carbon granules, it effectively traps contaminants in the 1 to 5 micron range, ensuring cleaner air for downstream processes.

Key Benefits:

• Removes oil vapors, mists, and odor

• Protects pneumatic tools and systems from contamination

• Improves air quality and enhances equipment life

• Lightweight and compact construction for easy installation

Ideal for critical industrial applications where air purity is essential, such as painting, packaging, food processing, and pneumatic tool operation.

Technical Specifications

• Filtration Efficiency: 85%

• Particle Removal Size: 1 to 5 microns

• Filter Media: Polypropylene with activated carbon granules

• Material of Housing: Aluminum/Engineering plastic (varies by model)

• Operating Pressure: Up to 16 bar

• Port Sizes: ¼”, ⅜”, ½”, ¾”, 1”, 1.5”, 2” BSP

• Drain Type: Manual / Auto

• Operating Temperature: 5°C to 60°C

• Mounting: Inline vertical

Applications

• Removal of oil mist and odor from compressed air

• Protection of pneumatic tools and actuators

• Pre-treatment for sensitive downstream processes

• Automotive and painting units

• Industrial automation and manufacturing lines
