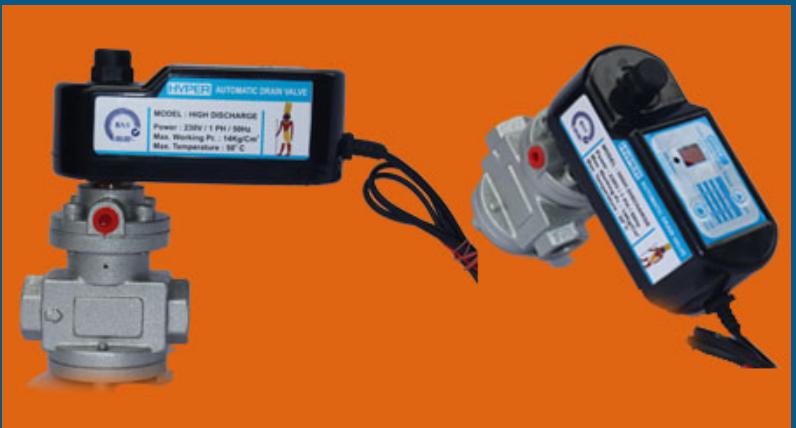

HIGH DISCHARGE AUTO DRAIN VALVE

Additional Details

SAI Pneumatic’s High Discharge Auto Drain Valve is designed for demanding industrial applications where large volumes of condensate accumulate in compressed air systems. This rugged, heavy-duty valve offers fast and efficient discharge of water, oil, and other contaminants, helping to maintain air quality and protect downstream equipment.

These valves are especially beneficial in compressor tanks, receiver tanks, moisture separators, filters, and air dryers where condensate generation is high. Built with high-performance materials, the valve ensures long operational life with minimal maintenance.

The system works on a timer or float mechanism, enabling fully automatic drainage without the need for manual intervention. It ensures operational reliability, reduces downtime, and contributes to better overall system efficiency.

Technical Specifications

• Drain Type: Timed/automatic high-volume discharge

• Material: Corrosion-resistant metal body

• Operating Pressure: Up to 16 bar

• Voltage: 230V AC / 110V AC / 24V DC (based on model)

• Discharge Capacity: Up to 300 liters/hour

• Port Size: ½” BSP (can vary by model)

• Mounting: Inline or remote

• Power Consumption: Low energy usage

• Installation: Easy plug-and-play setup

Applications

• Compressor receiver tanks

• Moisture separators

• Refrigerated and desiccant dryers

• Inline filters

• Pneumatic machinery in high humidity environments

• Petrochemical, food processing, and automotive industries
