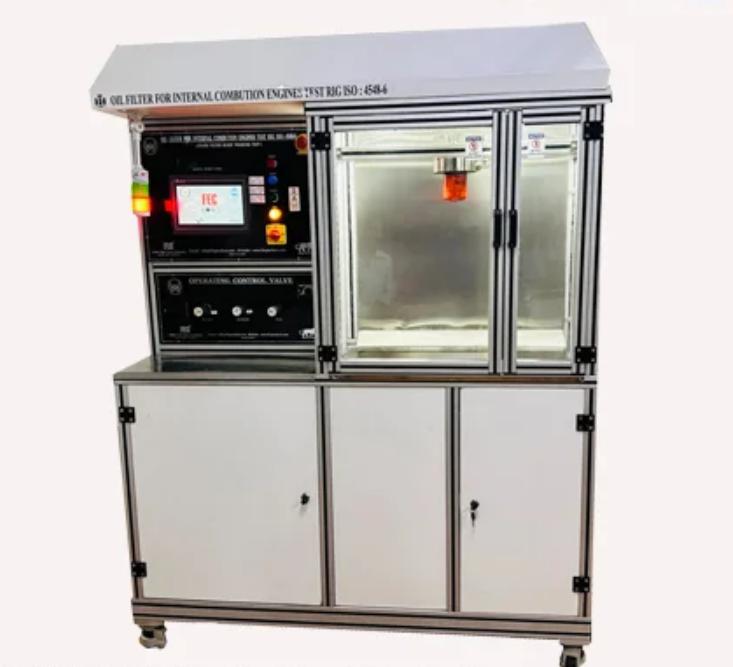

Oil Filter For Internal Combustion Engines Test Rig ISO 4548 6

Additional Details

The Oil Filter for Internal Combustion Engines Test Rig is designed in full compliance with ISO 4548-6 to test the burst pressure strength and mechanical integrity of spin-on oil filters used in automotive engines.

This rig simulates the extreme pressure conditions that occur in engine lubrication systems, helping manufacturers validate housing material, construction quality, and pressure resistance.

Technical Specifications

• Standard Compliance: ISO 4548-6

• Max Pressure Capacity: 50.0 kg/cm² (customizable)

• Control Type: Digital/Automatic

• Frame Material: Mild Steel pipe (painted with epoxy)

• Top Surface: Stainless steel with drain tray

• Indicators: Digital pressure & temperature display

• Pulse Counter: 6-digit programmable

• Timer Range: 0.1s increments; total cycle control

• Power Supply: 230V AC, 50 Hz

Applications

• Mechanical strength testing of automotive spin-on oil filters

• Simulation of high-pressure engine lubrication system

• Essential for filter R&D, manufacturing QA, and product compliance testing
