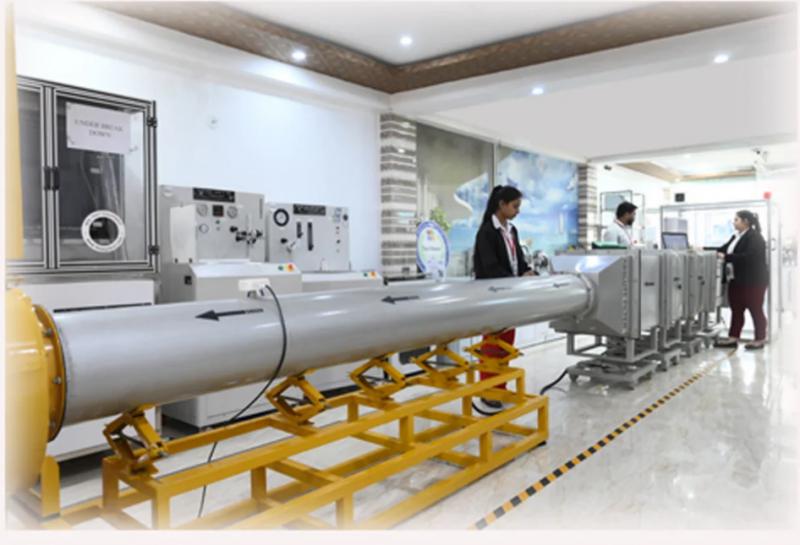

This testing equipment is designed to evaluate HVAC air cleaner filters in accordance with the IS 17570 standard (adopting ISO 16890). It provides a controlled laboratory environment to measure particulate removal efficiency (ePM1/2.5/10), airflow resistance, dust-holding capacity, and pressure drop. The system supports a wide range of filter types used in general ventilation. Tests are repeatable and comparable, enabling manufacturers and labs to classify filters accurately and ensure compliance.
| Parameter | Specification |
|---|---|
| Applicable Standard | IS 17570 Parts 1–4 (ISO 16890-1/2/3/4) |
| Test Parameters | Fractional efficiency, flow resistance, dust capacity, pressure drop |
| Particle Size Range | 0.3 – 10 µm (calculates ePM1/2.5/10 efficiencies) |
| Flow Rate Range | Customizable; lab-scale to HVAC-scale (e.g. up to 10,000 CFM) |
| Dust Loading Protocol | As per IS 17570 Part 3/ISO 16890-3 |
| Conditioning Procedure | IS 17570 Part 4 / ISO 16890-4 conditioning method before final efficiency test |
| Data Logging & Reporting | Automated control with digital output, graphs, report generation |
| Construction | Modular steel frame with aerosol-tight test section |
| Sensors | Pressure transducers, differential pressure, flow, particle counters |
| Power Supply | 220–240 V AC, 50/60 Hz |
Purpose: Precise laboratory evaluation of HVAC filters under IS 17570 criteria
Industries: HVAC system manufacturers, filter producers, certification labs, research institutions
Usage:
Classification of ventilation filters (ePM1/2.5/10)
Assessment of airflow resistance and energy impact
Determining dust-holding capacity for maintenance planning
Ensuring consistent quality and compliance across batches
