Air Filter Test Rig ISO 5011

Additional Details

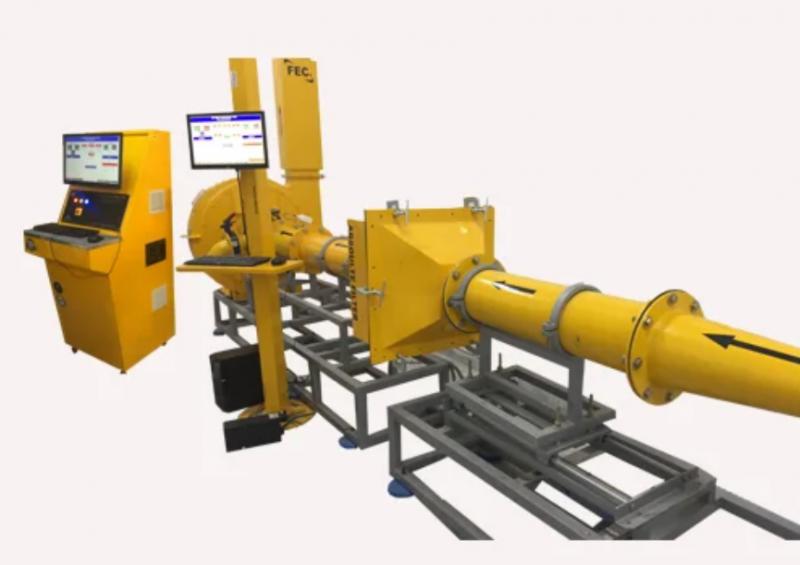

FEC’s Air Filter Test Rig ISO 5011 is engineered to test air filters in accordance with global standards like ISO 5011 and EN 779. These rigs are available in multiple capacities ranging from 5,000 CFM to 10,000 CFM, with custom solutions also available.

This test rig performs Life & Efficiency Test, Dust Holding Capacity Test, Pressure Restriction Test, and Flow Analysis. The equipment is operated using either SCADA software or PLC-based HMI as per user preference.

Key features include:

• MS/SS round pipe construction

• MS square pipe or aluminum extruded frame with automotive finish

• Convergent-divergent unit for absolute filter housing

• Butterfly valves for main flow and bypass adjustment

• High-speed centrifugal blower with VFD and silencer

• Digital sensors for temperature, humidity, and pressure

• Pneumatic absolute filter housing with clamp support

• Digital Differential Pressure Indicator

• Flow sensing with accurate sensors

• Branded motors and a robust electrical panel

Ideal for manufacturers and testers needing precise and reliable air filter performance evaluation tools.

Technical Specifications

• Test Standards: ISO 5011, EN 779

• Capacity: 5,000–10,000 CFM (customizable)

• Material: MS/SS round pipes, aluminum extruder pipe

• Sensors: Temperature, Humidity, Pressure

• Operation: SCADA / PLC-based HMI

• Valves: 2x Butterfly (main and bypass)

• Motor: Crompton Greaves / ABB

• Housing: Pneumatic absolute filter holder

• Noise Reduction: Silencer + VFD

• Mounting: MS Base Frame

• Paint: Automotive-grade for durability

Applications

Used to test air filters in automotive, industrial, and HVAC applications. Evaluates life, efficiency, dust holding capacity, flow rate, and pressure drop under standard conditions. Suitable for R&D labs, manufacturing quality control, and filter development.
