BS EN 1822 Air Cleaner Filter Test Rig

Additional Details

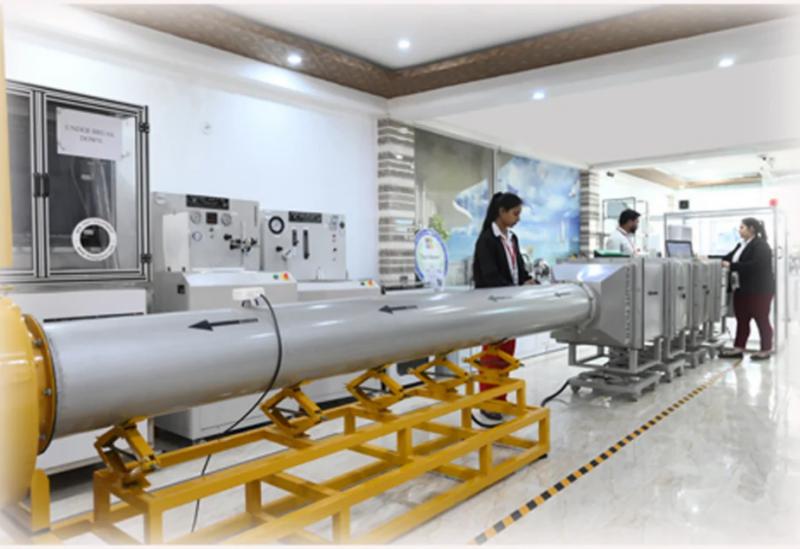

The BS EN 1822 Air Cleaner Filter Test Rig is a robust, stainless steel bench system designed per BS EN 1822 standards for testing HEPA and ULPA filters. It includes a calibrated aerosol generator, photometric detector, charge neutralizer, and precision blower. Users get real-time efficiency and penetration readings via touchscreen and PC interface, optimized for cleanroom certification and filter R&D.

Technical Specifications

• Standard: BS EN 1822:2019

• Aerosol Generation: DOP/PAO with neutralizer

• Measurement Range: 0.1–0.3 µm particles

• Flow Range: 0–5,000 m³/h; digital control ±1 % accuracy

• Detector: Optical photometer with 1 % linearity

• Frame: Stainless steel with HEPA-filtered inlet

• Interface: 12″ touchscreen + USB/RS‑232/PC software

• Dimensions: ~2 m × 1.2 m × 1.8 m

• Power: 220–240 VAC, 50/60 Hz

Applications

Used to certify HEPA/ULPA filters per BS EN 1822 for cleanrooms, laboratories, medical and semiconductor facilities. Ideal for filter manufacturers and testing houses requiring accurate measurement of worst-case penetration.
