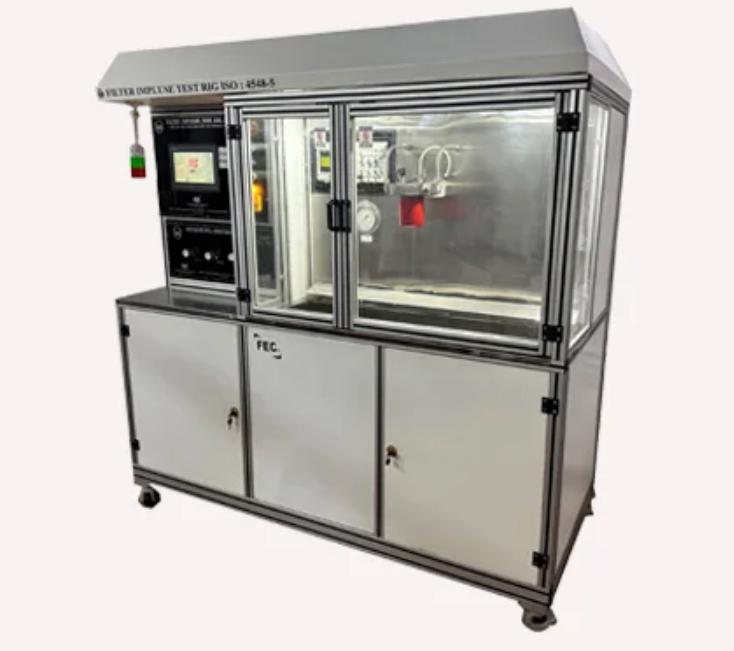

The Filter Impulse Test Rig is engineered in accordance with ISO 4548‑5 to evaluate the mechanical integrity and durability of hydraulic or engine lubrication filters. It simulates real-world cyclic pressure pulsations from engine lubrication systems by applying programmable pressure impulses to filter elements and housing. The system automates test cycles, logs pressure-time data, detects failures instantly, and generates test reports via integrated PC software.
Standard: ISO 4548‑5
Pressure Impulse Range: up to 30 bar (customizable)
Pulse Frequency: Adjustable 0.5–2 Hz
Cycle Count: Configurable (e.g., 1,000–10,000 cycles)
Pressure Accuracy: ±0.5%
Control System: Computer-controlled PLC with real-time charting
Data Logging: Full pressure-time data, pass/fail diagnostics, report generation
Materials: Steel frame, stainless steel pressure components
Power Supply: 230 V, 50 Hz (customizable)
Ideal for endurance and mechanical integrity testing of hydraulic and engine oil filters. Used in R&D and quality control by filter manufacturers, automotive OEMs, and testing laboratories. Validates filter housing strength under real engine pulsation conditions.
