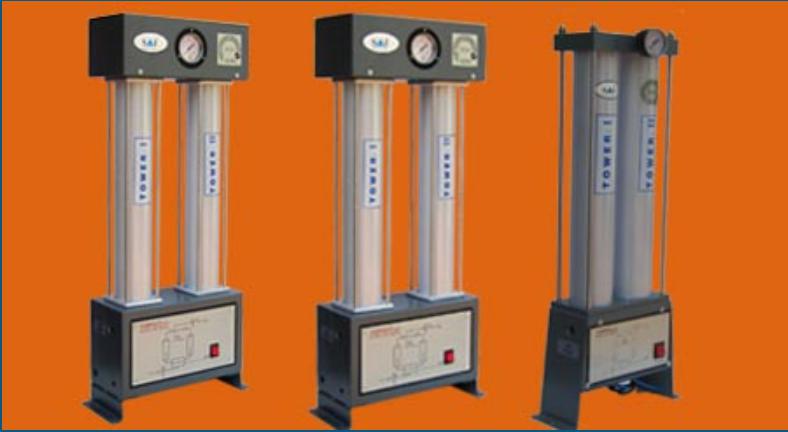

COMPACT HEATLESS AIR DRYERS

Additional Details

Compact heatless air dryers operate on the principle of adsorption. These regenerative dryers use desiccant media to absorb moisture from compressed air. Once saturated, the desiccant is regenerated through a purge cycle, allowing repeated use. The system can achieve dew points as low as -40°C, ideal for moisture-sensitive applications.
SAI dryers are designed with uniform alumina balls to prevent channeling, maintaining consistent airflow and optimal moisture removal. Key features include:

• Low-pressure drop and minimal purge loss

• Long-life pneumatic pilot valves

• Electronic control timer

• Integrated pre-filter, oil removing filter, and after-filter (optional up to 5 microns)
  The robust design ensures durability, energy efficiency, and high performance for industrial air drying needs.

Technical Specifications

• Technology: Heatless desiccant-based adsorption

• Dew Point: Up to -40°C atmospheric

• Desiccant Media: Activated Alumina

• Control: Electronic timer-based control

• Valves: Pneumatic pilot valves

• Filters: Pre-filter, oil-removal filter, after-filter (5 micron optional)

• Regeneration Method: Purge air

• Structure: Compact design for minimal footprint

• Pressure Drop: Minimal

• Power: Low operational power required

• Material: High-grade corrosion-resistant metal housing

Applications

• Pneumatic equipment

• Pharmaceutical manufacturing

• Food and beverage processing

• Paint booths

• Electronics assembly

• Laser cutting

• Laboratories

• Cleanroom environments

• Automotive assembly lines
