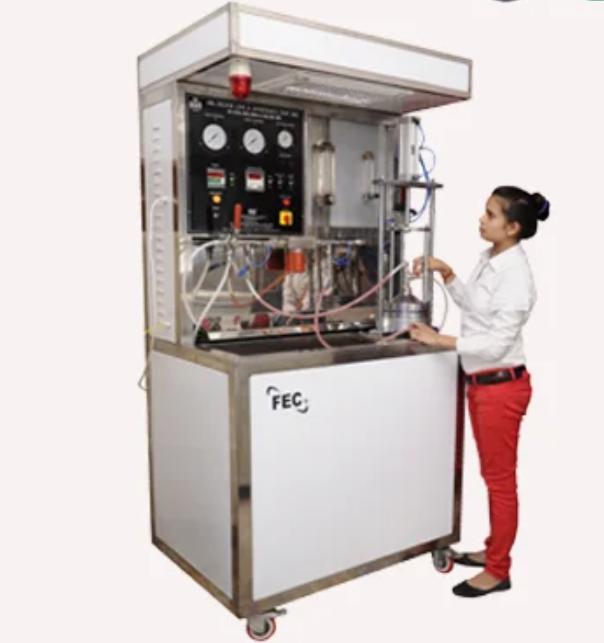

The Oil Filter Flat Sheet Media Test Rig is purpose-built to evaluate the filtration efficiency and flow characteristics of oil filter media samples, in compliance with ISO 4020-6.4 standards. The system is ideal for R&D labs and quality control departments of filter manufacturers.
Construction Features:
All structure fabricated with GI sheet, mounted on an M.S. pipe frame with automotive-grade epoxy paint
Stainless steel upper platform with washbasin-type tray and drainage for clean operations
Fully enclosed lighting arrangement for use in dark/light-deprived environments
Test Circuit Features:
Inlet and Outlet Pressure Gauges for accurate monitoring
Flow Meter to adjust and monitor flow settings
Absolute Filter Media Holder built per ISO 4020-6.4
Seamless stainless steel or copper pipes with international-grade long bends
Smooth flow control regulator for precise adjustment
Stainless Steel Conical Reservoir for oil circulation
Pump designed to preserve particle characteristics and avoid test media disturbance
Ideal for precision testing of flat sheet media performance such as dirt-holding capacity, differential pressure, and flow resistance under simulated hydraulic conditions.
Standard Compliance: ISO 4020 Section 6.4
Test Media Size: Flat sheet samples (customizable holder)
Pressure Range: 0–10 bar (or as per user requirement)
Flow Range: 0–100 LPM (with fine regulation)
Construction: GI Sheet housing with MS frame, epoxy painted
Test Tray: SS tray with drain
Circuit Material: Seamless stainless steel or copper
Pump Type: Non-disruptive to particle size and distribution
Data Display: Pressure and flow manually/digitally viewable
Lighting: LED lighting for low-light test conditions
Power Supply: 230V, 50 Hz
Used to test filter media quality and oil flow performance in automotive and industrial filter design. Suitable for R&D, prototyping, and filter element validation.
