- Industrial rack-mounted computer systems
- Compact server installations
- Factory automation systems
- Industrial control and monitoring systems
- Data acquisition and processing systems
- Network and equipment control rooms
- Industrial computing infrastructure
IN₹
Apparel & Fashion
Description

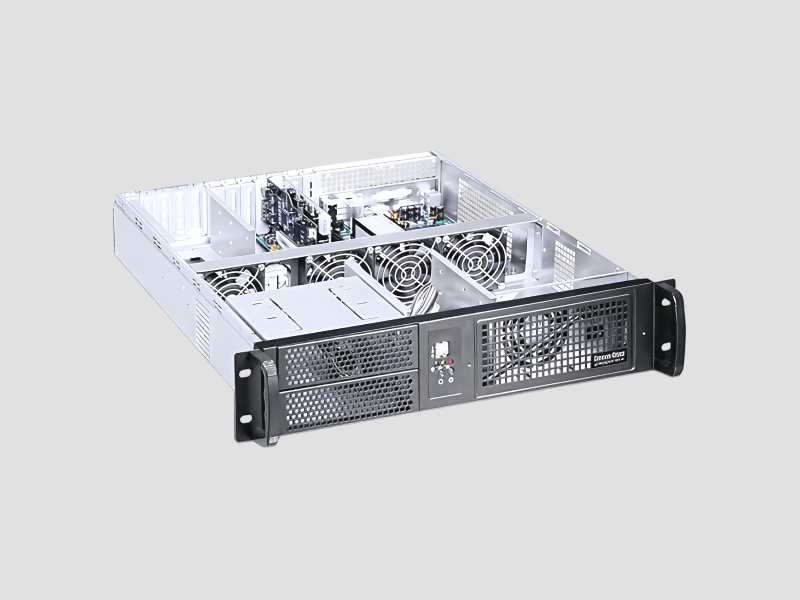

The RBT-N2055 is a 2U rack mount chassis developed for industrial computer and compact server installations. Its heavy-duty 1.2 mm SGCC steel construction provides a rugged enclosure, while the chassis supports standard ATX motherboards measuring up to 12″ × 9.6″. For thermal management, four 8 cm dual ball-bearing fans with finger guards are positioned within the chassis to create positive air pressure. A washable air filter further supports system maintenance. The chassis provides extensive storage capacity with up to two 5.25″ and six 3.5″ drive bays, while an optional 3-slot riser card and sliding rail provide additional installation flexibility.
Specifications
| Key Attributes | |
|---|---|
| Dimensions | 482 × 88.9 × 550 mm (19″ × 3.5″ × 21.65″) |
| Material Construction | Heavy-Duty Rugged Steel, 1.2 mm, SGCC Anti-Rust Material |
| Motherboard Size | ATX, 12″ × 9.6″ |
| Expansion | 32-bit / 64-bit, 3-Slot Riser Card |
| Control & Indicators | 1 × Power Switch, 1 × Reset Switch, 1 × Power LED, 1 × HDD LED |
| USB Ports | 2 × USB 2.0 |
| Cooling Fans | 4 × 8 cm, 2-Ball-Bearing Fans with Finger Guards |
| Power Supply | Standard PS-2 ATX, 300–500 W |
| Operating Temperature | Up to 50°C (122°F) |
| Color | Black or Beige |
| Packing Weight | Net: 8.4 kg / Gross: 10.8 kg |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What motherboard does the RBT-N2055 support?
The RBT-N2055 supports a standard ATX motherboard up to 12″ × 9.6″
2
What cooling system is provided in the RBT-N2055?
It features four 8 cm dual ball-bearing cooling fans with finger guards positioned in the middle of the chassis, along with a washable air filter
3
How many drive bays does the RBT-N2055 support?
The chassis supports up to two 5.25-inch drive bays and six 3.5-inch HDD drive bays, providing flexible storage configuration.
4
What other products are available in this range?
The additional available products are RBT-N2066, RBT-N235M, RBT-N238A, RBT-N238C, RBT-N240L and RBT-N240S. The supplied RB Technologies page also directly references models including RBT-N2066 and RBT-N238C
SKU: 1
RBT-N2055 2U Industrial Rack Mount Chassis
The RBT-N2055 is a compact 2U rackmount chassis designed for small server applications with efficient cooling performance. It features four 8cm ball-bearing cooling fans that create positive air pressure for improved airflow and system stability. A washable air filter helps maintain a clean internal environment, while the chassis supports up to two 5.25-inch drive bays and six 3.5-inch HDD bays. Its innovative universal expansion window accommodates various expansion configurations.
