Description
The RBT AMC-262 is a heavy-duty wall mount chassis developed for industrial computer systems requiring compact installation and flexible expansion. It provides six slots including the system slot and supports full-size and half-size cards with a maximum expansion card length of 339 mm. The chassis is compatible with 6-slot ISA/PICMG bus passive backplanes. For storage, the chassis provides one external 3.5-inch bay, one external 5.25-inch bay and two internal 3.5-inch bays. The front panel includes power and reset controls, LED indicators, a PS/2 keyboard connector and two USB ports. A 12 cm ball-bearing fan with a removable filter provides system cooling
Specifications
| Key Attributes | |
|---|---|
| Construction | Heavy-Duty Steel |
| Color | White |
| Rear Panel | 1 × Reserved DB-25 Connector Cut-Out, 1 × Reserved DB-9 Connector Cut-Out |
| Expansion | 6 Slots Including System Slot; Supports Expansion Cards up to 339 mm Length |
| Dimensions | 175 × 405 × 254 mm (6.9″ × 16.1″ × 10″) |
| Carton Dimensions | 315 × 365 × 520 mm (12.4″ × 14.37″ × 20.47″) |
| Net Weight | 5.5 kg (12.1 lb) |
| Gross Weight | 6.3 kg (13.9 lb) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| EMC | CE / FCC Class A |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
How many expansion slots does the RBT AMC-262 provide?
The chassis provides 6 slots including the system slot and supports expansion cards up to 339 mm in length.
2
What drive bays are available in the RBT AMC-262?
It provides one external 3.5″ bay, one external 5.25″ bay and two internal 3.5″ drive bays
3
What cooling system does the RBT AMC-262 use?
It features a 12 cm ball-bearing system fan with a removable filter for system cooling
4
What other products are available in this range?
he additional available products you provided are RBT AMC-280B and RBT AMC-280M.
SKU: 1

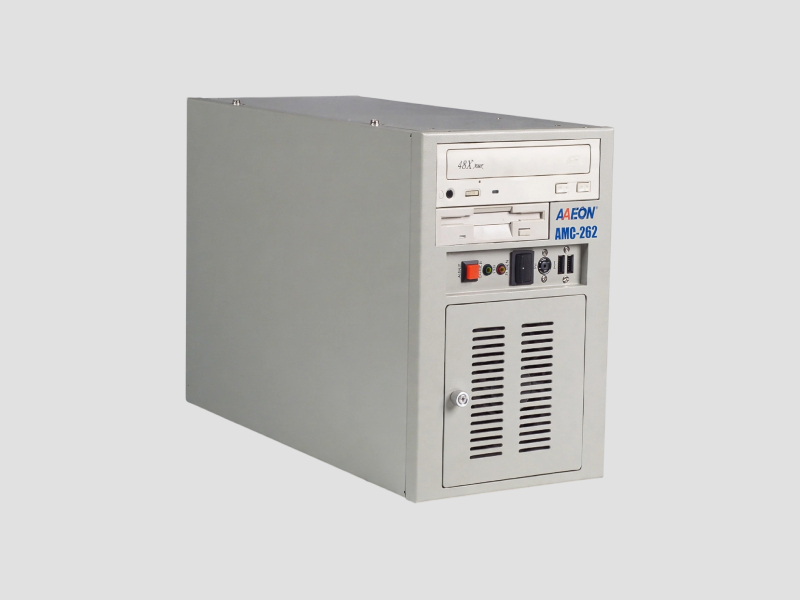

RBT AMC-262 6-Slot Wall Mount Industrial Chassis
The RBT AMC-262 is a 6-slot wall mount industrial chassis designed to support full-size and half-size cards in industrial computing and control applications. Built with heavy-duty steel, it supports 6-slot ISA/PICMG passive backplanes and expansion cards up to 339 mm in length. The chassis provides one external 3.5″ bay, one external 5.25″ bay and two internal 3.5″ bays. A 12 cm ball-bearing fan with removable filter supports system cooling, while dual front USB 2.0 ports and a standard PS2 power supply provide convenient system integration
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
