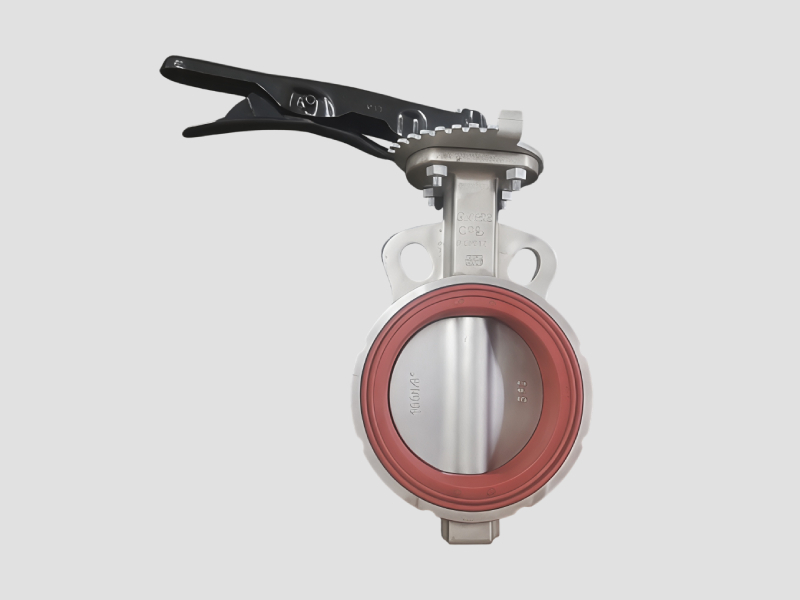

Oil Pipeline Butterfly Valve is designed to control and isolate gear oil and other compatible fluids in industrial piping systems. The valve features a compact wafer-type construction that can be installed between compatible Class 150 or Table D/E flanges. Body material options include cast iron, cast steel, aluminium die-cast, SS304, SS316, polypropylene, and uPVC, while disc options include cast steel, ductile iron, SS304, and SS316. It can be supplied with nitrile, EPDM, neoprene, PTFE, Viton, or metal seating to suit different media and temperature conditions. The valve provides tight shut-off and supports temperatures from −20°C to 200°C, depending on the selected material configuration.
| Key Attributes | |
|---|---|
| Valve Size | 40mmto600mm |
| Body Material | Stainless Steel |
| Connection Type | Wafer, TC End, Sandwich Type, etc.. |
| Disc Material | Stainless steel |
| Seat | EPDM, Silicone, PTFE, etc... |
| Additional Information | |
|---|---|
| Brand | FLOMAX |
| Country of Origin | India |
Gear-oil circulation pipelines
Lubrication systems
Oil-storage and transfer facilities
Petroleum-processing systems
Industrial fluid-control pipelines
Chemical-processing plants
Utility and process piping
Pump inlet and discharge lines
Manual flow-isolation systems
| Available Stock | In Stock |
| Sample Availability | Yes - paid |
| Payment Methods |
|
| Shipping Internationally | No | |
| Methods |
|
Tamil Nadu, IndiaYes. It is designed for flow regulation and isolation in gear-oil and other compatible industrial fluid pipelines.
The listed size range is from 25 mm to 1000 mm (1–36 inches). Sizes from 25 mm to 400 mm (1–16 inches) are commonly available in ready stock.
Body options include cast iron, cast steel, aluminium die-cast, SS304, SS316, PP, and uPVC. Disc options include cast steel, ductile iron, SS304, and SS316.
The stated range is −20°C to 200°C. Actual temperature suitability depends on the selected body, disc, and seat materials.
The listing specifies an operating range of 0–10 bar. The valve is also available in PN10 and PN16 ratings, with PN20 offered on request.
