Description
The 15.6″ IR Touch Screen is designed for panel display devices requiring durable and responsive touch interaction. It provides 4096 × 4096 interpolated resolution, less than 1.5 mm linearity error and a response time below 15 ms. Touch input can be performed using a bare finger or a hand wearing rubber, cloth or leather gloves, with no minimum touch activation force required. Its carbon steel frame and glass surface provide resistance to abrasion and physical impact. The touch screen offers 90% light transmission and supports operation under various ambient lighting conditions, including direct sunlight. USB 2.0 and RS-232 interfaces enable system integration, while its specified operating temperature ranges from -20°C to 70°C.
Specifications
| Key Attributes | |
|---|---|
| Screen Size | 12″–70″ |
| Resolution | 4096 × 4096 |
| Linearity Error | <1.5 mm |
| Response Speed | <15 ms |
| Frame Material | Carbon Steel |
| Input Method | Finger Or Gloved Hand |
| Minimum Touch Object | 6 × 6 mm Under 22″, 8 × 8 mm Above 22″ |
| Surface Durability | Mohs’ Hardness Rating 7 |
| Light Transmission | 90% |
| Operating Temperature | -20°C To 70°C |
| Operating Humidity | 0%–90% RH, Non-Condensing |
| Interface | Full Duplex USB 2.0; Serial RS-232 |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What is the resolution of the 15.6″ IR Touch Screen?
The touch screen provides an interpolated resolution of 4096 × 4096 with a response speed of less than 15 ms
2
Can the IR Touch Screen be operated while wearing gloves?
Yes. It supports touch input using a finger or a hand wearing rubber, cloth or leather gloves
3
Is the 15.6″ IR Touch Screen suitable for outdoor applications?
Yes. It is designed to operate under different lighting conditions, including direct sunlight, and has an operating temperature range of -20°C to 70°C
4
What other IR Touch Screens are available?

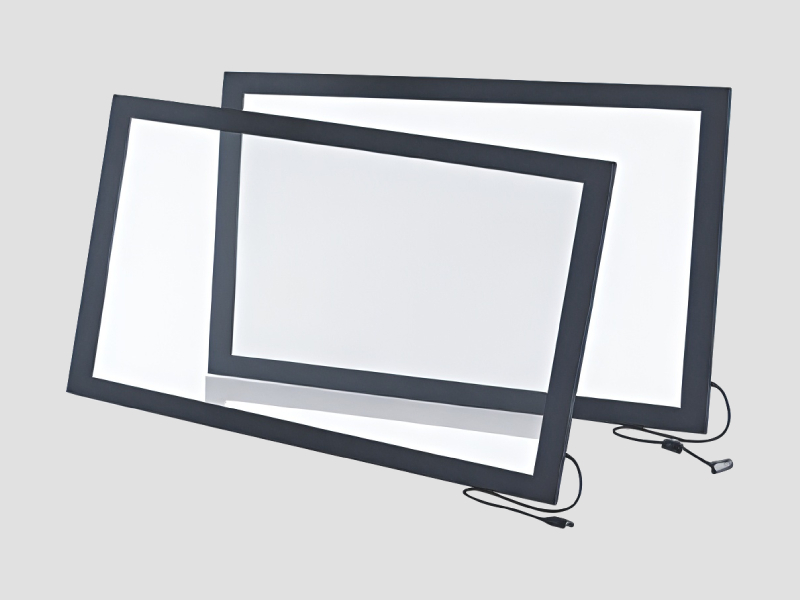

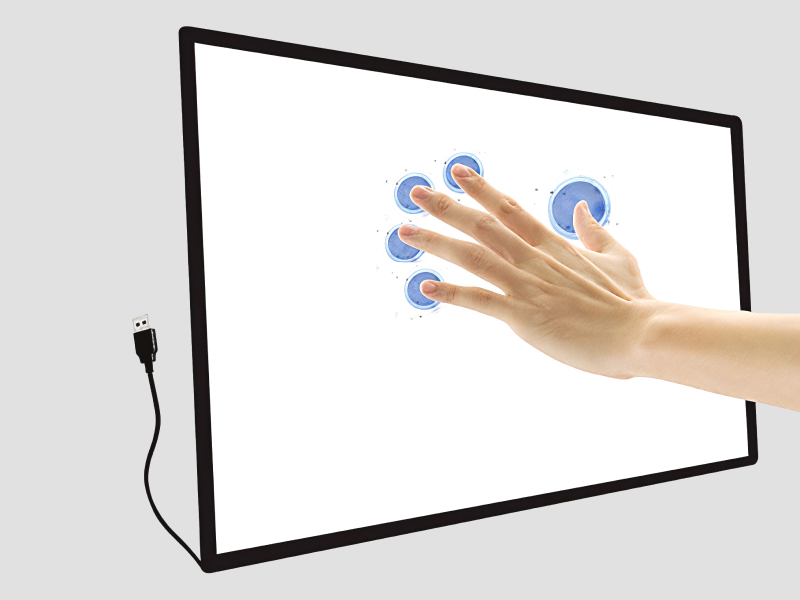

The additional available products are 17″ IR Touch Screen, 21.5″ IR Touch Screen and 32″ IR Touch Screen. The official page also directly references the 17″ and 21.5″ variants.
SKU: 1

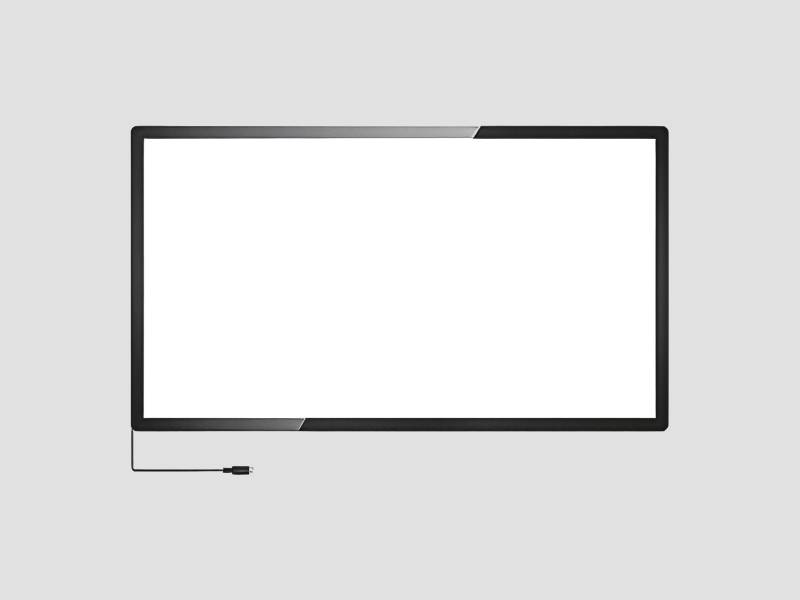

15.6″ IR Touch Screen
This rugged industrial display is designed to withstand severe operating environments while delivering stable, no-drift calibration performance. Its vandal- and abrasion-resistant screen provides reliable operation in demanding applications, while parallax-free performance ensures clear and accurate interaction with LCD displays. The display can be sealed against contaminants and remains operable under various indoor and outdoor lighting conditions.
