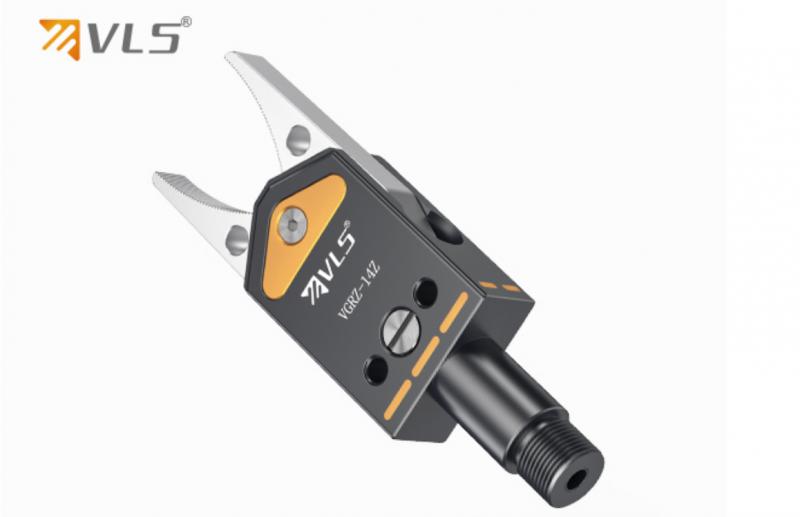

Sprue Gripper-VGRZ-14Z

1
Be the first to review

Single-action VGRZ‑14Z sprue gripper with spring-open actuation and common jaw—jaw pad can be fitted with rubber insert for secure, gentle gripping in automated injection molding processes.

  • FOB Price
    NA
  • Min Order Quantity
    NA
  • Payment Terms
    NA
  • Share:
Request for Quote

Other Details

  • Single-action spring-open (pneumatic close) mechanism for efficient sprue ejection.

  • Features a common jaw, compatible with rubber jaw pads to improve grip and protect delicate parts.

  • Constructed with anodized aluminum body and hard-coated jaws for durability and long-term reliability.

Product Application



Ideal for removing sprues in injection molding operations. Compact and low-weight, perfect for robotic EOAT setups with standard mold designs. Rubber jaw options provide soft-touch handling for sensitive parts.

Technical Specifications


Action Single-action: spring-open, pneumatic close
Jaw Style Common jaw, rubber pad ready
Piston Diameter 14 mm (GRZ‑14 series)
Closing Force Approx. 75 N @ 6 bar
Body Material Anodized aluminum
Jaw Material Hard-coated aluminum
Pneumatic Connection M5 thread
Approx. Weight ~70 g assembly (body + jaw)
Maximum Air Pressure Up to 6 bar
