Muveera Engineering Equipments

Other Details

MULTIFEED's Linear & Conveyor Elevator Hoppers are specially designed to supplement bowl and linear feeder systems by providing a reliable, high-capacity solution for automatic part replenishment. These hoppers reduce manual intervention by automatically feeding parts as needed, using non-contact level control sensors to signal feeding operations.

The Linear Hopper is used when bulk part storage is required, especially in systems using vibratory or centrifugal feeders. Its tray design accommodates larger or bulkier components, ensuring a smooth and consistent part flow.

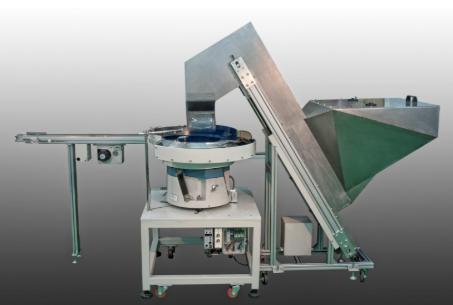

The Conveyor Elevator Hopper, on the other hand, provides a vertical conveying mechanism that lifts components from the hopper to the feeder. It’s ideal for feeding a wide range of components—from lightweight plastic items to heavier steel parts. The large storage volume and low filling height make it easy to refill and maintain, significantly improving process uptime and operator safety.

All MULTIFEED hoppers are engineered to seamlessly interface with various parts feeding systems and offer high operational reliability even under demanding production conditions.

Product Application

• Electronics manufacturing (connectors, casings)

• Automotive components (bolts, clips, fasteners)

• Plastic injection molding units (caps, parts)

• Medical and pharma packaging (vials, tubes)

• Food & beverage bottling lines (caps, seals)

• Hardware & tool assembly lines (screws, bearings)

Technical Specifications

• Hopper Type: Linear / Conveyor Elevator

• Hopper Capacity: 10 – 50 liters (customizable)

• Power: 0.25 – 0.75 kW

• Voltage: 220V / 50Hz

• Control: Photoelectric/Capacitive non-contact level sensor

• Conveyor Type (Elevator): Cleated belt / chain conveyor

• Construction: Mild Steel / Stainless Steel options

• Mounting: Adjustable feet or wheeled frame

• Noise Level: Low (< 60 dB)

• Output Height: Custom per feeder height

• Filling Height: Low-level for ergonomic refilling

• Hopper Cover: Optional transparent or sealed cover
