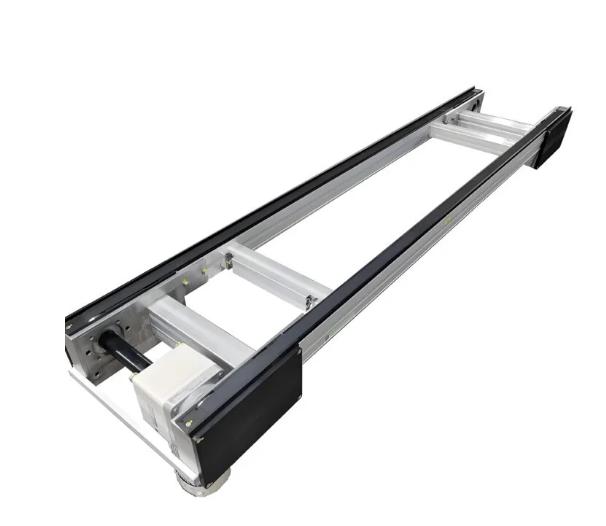

This Belt Pallet Conveyor is part of Muveera’s palletizing family, designed to transport and accumulate palletized loads smoothly in automated production lines. The system features a timing belt with steel cords for precise movement, and is built on modular aluminum extrusions for easy customization and scalability. Choose between mid-drive or end-drive options depending on line layout. Available with optional accumulation sections to buffer loads and prevent product contact using sensors and controls .

Product Application

• Automotive sub‑assembly & parts lines

• Battery and electronics assembly

• Food & beverage palletizing

• E‑commerce order fulfillment

• Heavy appliance and defense equipment assembly

Technical Specifications

• Belt Width: 300–1000 mm (increments of 50 mm)

• Pallet Sizes: From 160 × 160 mm up to 800 × 800 mm (custom widths supported)


• Load Capacity: Up to 600 kg per pallet; system supports heavier loads depending on belt tension and drive


• Speed Range: 0.1–2 m/s (6–120 m/min) adjustable via VFD or PLC

• Drive Options: Mid-drive (500–7500 mm lengths) or end-drive (300–3800 mm lengths)


• Frame: Durable aluminum extrusion with t‑slot profiles for accessories

• Control: Optional PLC, photo‑eye sensors, accumulation staging

• Finish: Powder‑coated or anodized for corrosion resistance

• Operating Conditions: Ambient; IP-rated components optional
