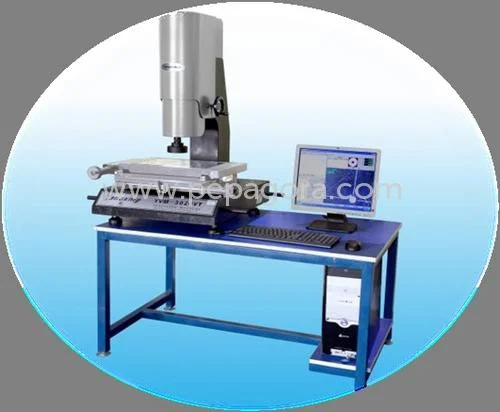

The Precision Video Measuring Machine represents advanced metrology technology designed for manufacturers requiring uncompromising accuracy in quality control processes. This sophisticated system combines high-resolution imaging with precise measurement software to deliver reliable, repeatable results across various industrial applications. Featuring a robust 180kg frame that ensures operational stability, the machine offers a substantial 200x100x150mm measurement range while maintaining exceptional ±0.003mm positioning accuracy. The integrated 19-inch monitor and PC system provide a user-friendly interface that simplifies complex measurement tasks, making it accessible for operators of different experience levels. With its 0.001mm resolution and precision grating system, this equipment captures even the most minute dimensional variations, ensuring products meet the strictest quality standards required in today's competitive manufacturing landscape.

This video measuring machine serves critical functions across multiple high-precision industries where dimensional accuracy is paramount. Automotive manufacturers utilize it for verifying component dimensions and ensuring proper fitment of engine parts, transmission components, and safety-critical systems. Aerospace companies depend on its micron-level accuracy for measuring turbine blades, structural components, and avionics parts where tolerances directly impact performance and safety. The electronics industry employs these systems for PCB inspection, semiconductor measurement, and connector verification. Medical device manufacturers rely on this technology for ensuring the precision of surgical instruments, implants, and diagnostic equipment. Research institutions and quality laboratories also use these machines for material analysis, prototype verification, and compliance testing across various manufacturing sectors.

The business value of this video measuring machine extends significantly beyond its technical specifications, delivering tangible operational benefits and cost savings. By implementing this precision measurement solution, manufacturers substantially reduce scrap rates, minimize rework costs, and prevent expensive recalls through comprehensive first-article inspection capabilities. The machine's reliability ensures consistent measurement results across multiple shifts, reducing operator dependency and training requirements while maintaining quality standards. Its multiple output format support seamlessly integrates with existing CAD/CAM systems, streamlining the quality documentation process and improving workflow efficiency. The robust construction and precision components guarantee long-term accuracy with minimal maintenance requirements, providing an excellent return on investment through years of dependable service in demanding production environments.

Key Features:
- 200x100x150mm measurement range with ±0.003mm positioning accuracy
- High-resolution 0.7-4.5X zoom lens with U.S. TEO C5 1/2 color CCD
- Precision grating system ensuring 0.001mm resolution capability
- Multiple file output formats including STL, OBJ, IGES, DXF, and VRML
- Robust 180kg machine weight with stable 556x540x860mm dimensions

Benefits:
- Reduces scrap rates and minimizes rework costs through precise measurements
- Ensures consistent quality control across multiple production shifts
- Seamlessly integrates with existing CAD/CAM software systems
- Provides long-term reliability with minimal maintenance requirements
- Delivers excellent return on investment through improved manufacturing efficiency
