Description

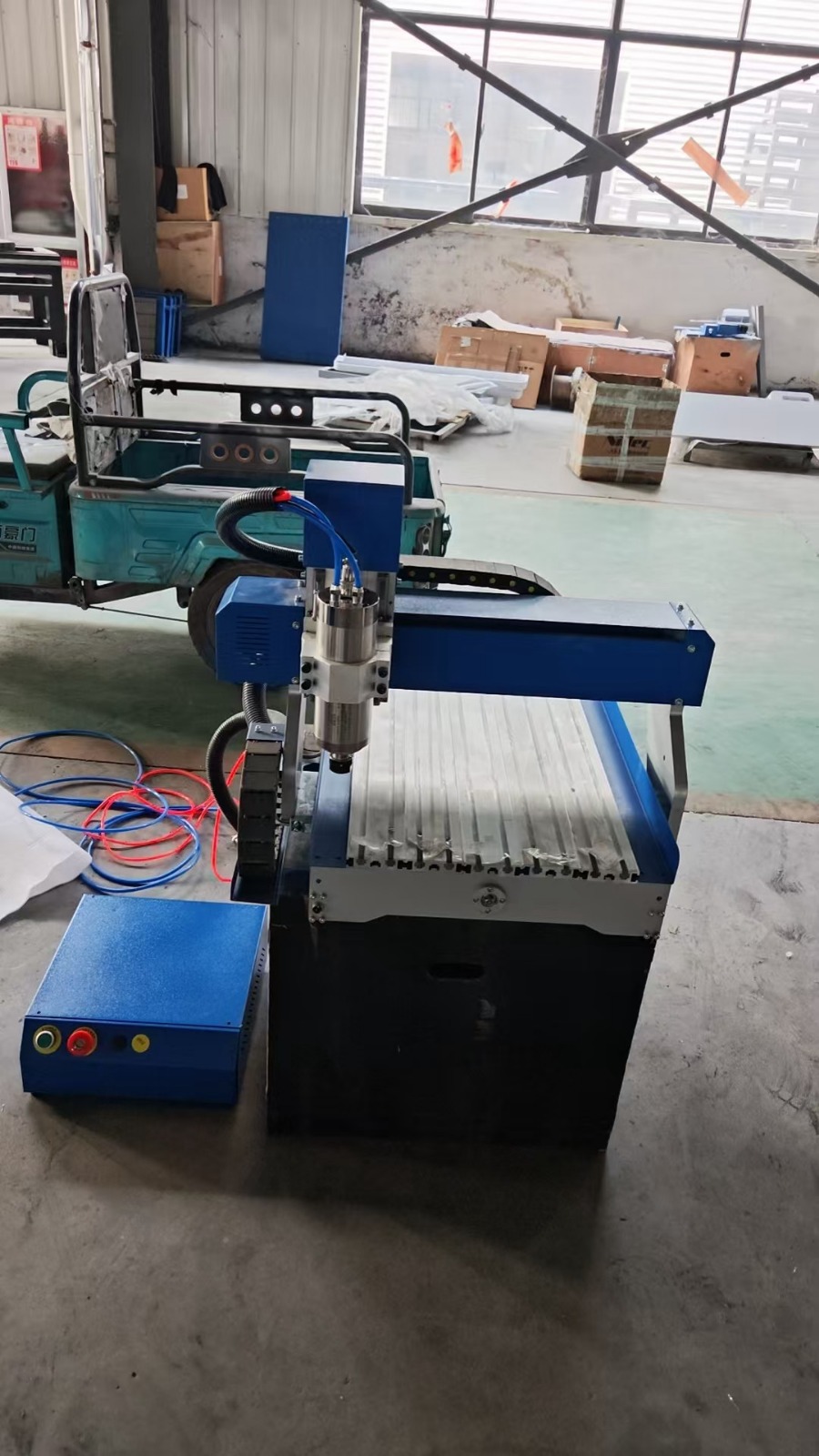

Working Area: 400 × 600 × 70 mm Feeding Height: 120 mm / 150 mm Table Size: 450 × 800 mm CNC Spindle: 2.2 kW Water Cooled (0–24000 RPM) Structure: Rigid Frame Construction XYZ Structure: Ballscrew Transmission with Square Linear Rails Max Travel Speed: 6000 mm/min Table: Aluminum Profile T-Slot Clamping Repeatability / Precision: ±0.05 mm Working Mode: Stepper Motor Control System: NCWORK Voltage: AC 220V ±10%, 50–60 Hz, Single Phase Supported Software: Type3 / Artcam / UG / Pro-E / Mastercam / Ucancam Command Code: G-code Dust Collector: Optional / As per Vendor
