Description
By utilizing Turn-Mill Centers (often referred to as multitasking machines), these parts are produced in a single setup, where the raw material is rotated (turning) while independent cutting tools move across multiple axes (milling). This "one-hit" machining is a mechanical necessity for parts with offset holes, intricate slots, or non-cylindrical features on a turned body.
Specifications
| Attribute | Value |
|---|---|
| Machine Type | CNC Turn-Mill / 5-Axis Machining Center |
| Material Options | AL 7075, SS 316, Ti-6Al-4V, Brass, Alloy Steel |
| Max Part Diameter | 2 mm to 300 mm |
| Max Part Length | Up to 600 mm |
| Dimensional Tolerance | Up to ±0.005 mm |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
| Customisable | No |
Application
Trade Details
| Production Lead Time | 8-14 Days |
| Available Stock | In Stock |
| Sample Availability | No |
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Port of Dispatch | -- | |
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | -- | |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
₹25 Lakhs – ₹1 Crore
Factory Details
Main Markets
Frequently Asked Questions
What is the main advantage of "Multi-Axis" machining over traditional methods?
In traditional machining, a part is moved from a lathe to a milling machine. Every time you "re-clamp" the part, you lose a small amount of accuracy. Multi-axis machining does everything in one setup, meaning all the holes, slots, and threads are perfectly aligned with each other.
Can you machine "Medical-Grade" materials like Titanium?
Yes. Multi-axis machines are ideal for Titanium because they allow for the rigid setups and specialized cooling needed to machine these "tough-to-cut" materials without tool deflection or overheating.
What is "Live Tooling" in a CNC lathe?
Live tooling means the lathe has a turret with small, powered milling cutters. This allows the machine to stop the rotation of the part at a specific angle and drill a hole or mill a slot on the side of a cylindrical component.
How do you handle complex internal geometries?
Using 5-axis capabilities, we can tilt the tool or the part to reach internal features that are not reachable by standard 3-axis machines. This is particularly useful for internal fluid channels or weight-reduction pockets.
Do I need to provide a 3D model for a multi-axis part?
For multi-axis work, a 3D CAD model (.STEP or .IGS) is essential. It allows us to program the complex tool paths and run a digital simulation to ensure the tools don't collide with the part during the machining process.

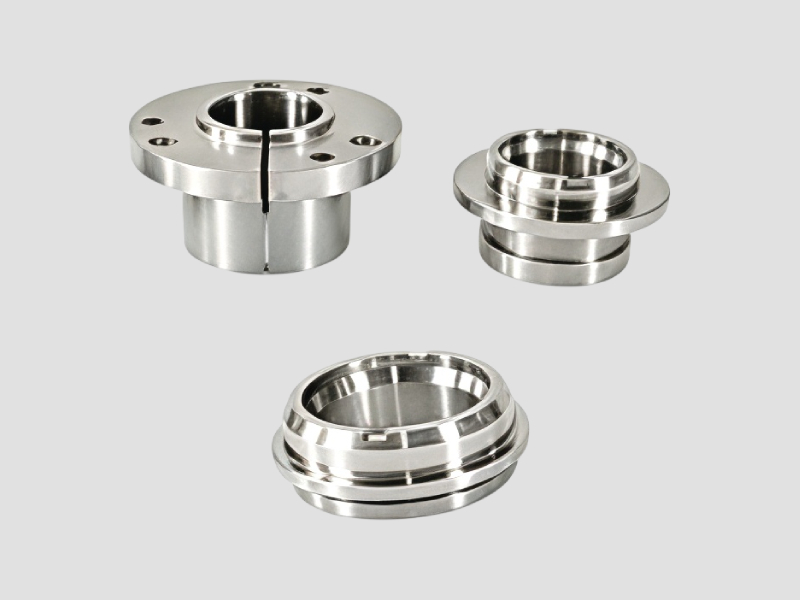

Multi-axis milled and turned precision parts.
