- Compact industrial computer systems
- Factory automation applications
- Rack-mounted control systems
- Industrial machine monitoring
- Network and communication equipment
- Space-constrained computing installations
IN₹
Apparel & Fashion
Description

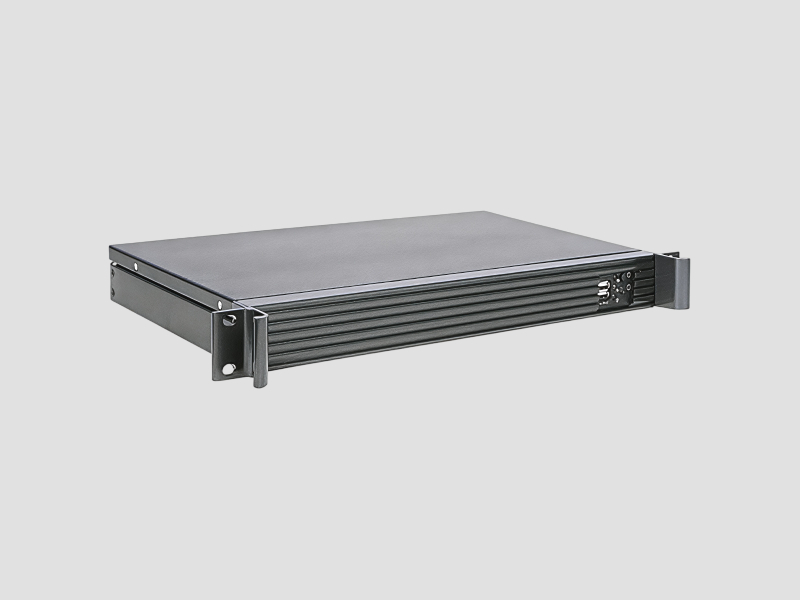

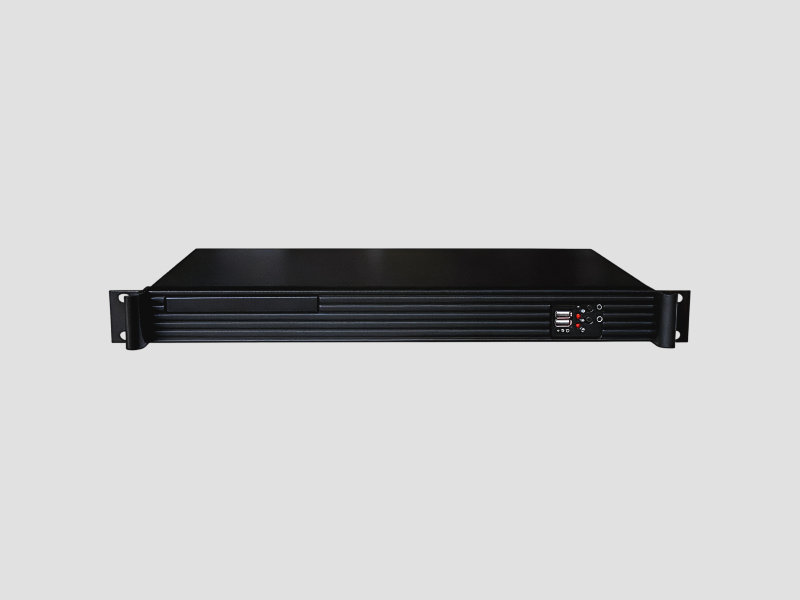

The KI-N1525 is a compact 1.5U industrial rackmount chassis developed for installations where rack space is limited. Its 250 mm depth and Mini-ITX motherboard support enable the construction of compact industrial computer systems while retaining essential storage, cooling and expansion capabilities. The chassis is manufactured from heavy-duty 1.0 mm SGCC steel and incorporates an industrial aluminum front panel and handles. It supports one 3.5-inch and two 2.5-inch internal drive bays, two 60 mm silent cooling fans and optional PCI riser-card configurations. An optional SFX 200W–400W power supply and sliding rail further support flexible rackmount installation.
Specifications
| Key Attributes | |
|---|---|
| Dimensions | 482 × 68 × 250 mm (19″ × 1.5U × 9.84″) |
| Material Construction | Heavy-Duty Rugged Steel, 1.0 mm Thickness |
| Motherboard Size | 17 × 17 cm (Atom Mini-ITX) |
| Expansion | 1 × 32-bit PCI Riser Card; Optional 2-Slot PCI Riser Card |
| Cooling Fans | 2 × 60 mm Silent Fans |
| Drive Bays | 1 × 3.5″ + 2 × 2.5″ Internal |
| Power Supply | SFX 200–400 W PSU |
| Sliding Rail | 20″ Ball-Bearing Sliding Rail |
| CPU Cooler | 1U CPU Cooler |
| Color | Black Standard; Silver / Golden / Red |
| Operating Temperature | Up to 50°C (122°F) |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
Application
Payment Terms
| Payment Methods |
|
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What motherboard does the KI-N1525 support?
The KI-N1525 supports a 17 × 17 cm Atom Mini-ITX motherboard, making it suitable for compact industrial computer configurations.
2
What drive bays are available in the KI-N1525?
It provides one 3.5-inch and two 2.5-inch internal drive bays for storage devices
3
What cooling and power supply options are available?
The chassis features two 60 mm silent cooling fans and supports an optional SFX 200W–400W power supply.
4
What other products are available in this range?
The additional products are KI-N125 1U Most Compact Chassis, KI-N125D 1U Most Compact Chassis, and KI-N130 1U Rackmount / Desktop Chassis.
SKU: 1

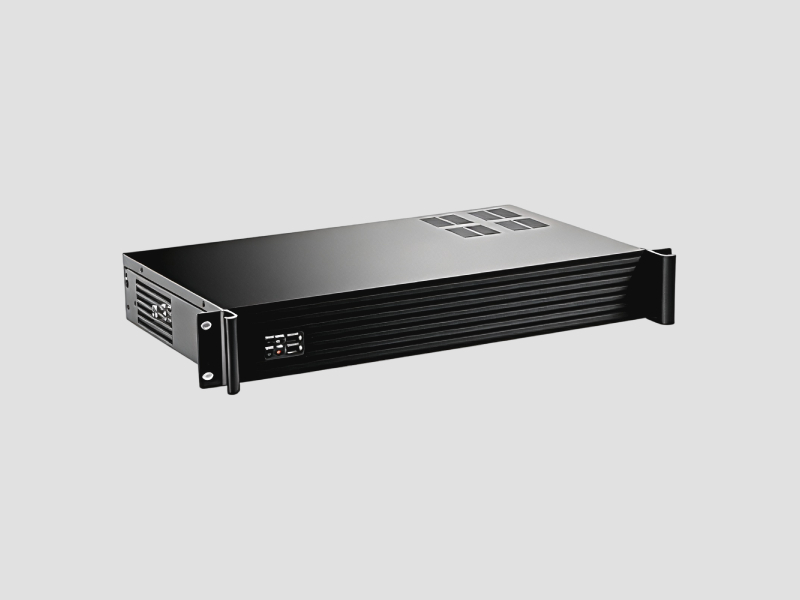

1.5U Most compact chassis KI-N1525
This compact industrial chassis features a 250mm depth design that saves valuable space while providing reliable system integration. It includes a durable aluminum front door with concealed ventilation holes, release handles for easy desktop conversion, and support for a standard I/O plate, making it suitable for flexible industrial and embedded computing applications.
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
