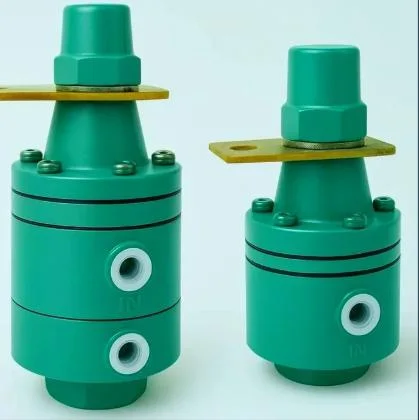

The Double Acting Air Lock Relay JDA510 represents a crucial safety component for pneumatic systems, designed specifically to address the risks associated with air supply failures in industrial environments. This specialized device monitors pneumatic pressure continuously and activates automatically when supply pressure falls below a preset threshold. By locking compressed air within both chambers of double-acting cylinders, it creates a mechanical hold that prevents actuator movement, ensuring equipment remains in its last operational position. The adjustable cut-off mechanism allows precise calibration to match specific system requirements, providing flexibility across different pneumatic setups while maintaining consistent safety performance.

This relay finds essential application across numerous industrial sectors where pneumatic reliability directly impacts operational continuity and safety. Manufacturing facilities utilize it to maintain robotic positioning during production line pauses, while processing plants depend on it to keep control valves stationary during temporary pressure drops. Material handling systems incorporate these relays to prevent conveyor misalignment, and automated machinery uses them to ensure tooling remains precisely positioned. The device's universal compatibility with standard pneumatic components makes it suitable for integration into both new installations and existing system upgrades, providing enhanced safety without requiring complete system redesign.

Businesses investing in the JDA510 gain measurable value through reduced downtime, enhanced operational safety, and improved process reliability. The relay's robust construction ensures long-term performance in demanding industrial environments, while its simple installation minimizes implementation costs. By preventing unexpected actuator movement during air supply interruptions, this device protects valuable equipment from damage and maintains production quality consistency. The adjustable pressure threshold allows customization to specific operational needs, ensuring optimal performance across varying pneumatic system configurations while providing peace of mind through dependable fail-safe operation.

Key Features:
- Automatically locks air in both cylinder chambers during pressure drops
- Adjustable cut-off pressure with precise screw and locknut mechanism
- Compatible with standard double-acting pneumatic cylinders and actuators
- Maintains actuator position without external power requirements
- Simple installation into existing pneumatic control systems

Benefits:
- Prevents unexpected equipment movement during air supply failures
- Reduces downtime by maintaining operational positions during pressure fluctuations
- Enhances workplace safety by preventing uncontrolled actuator motion
- Protects machinery from damage caused by sudden position changes
- Improves process consistency by ensuring stable actuator positioning
