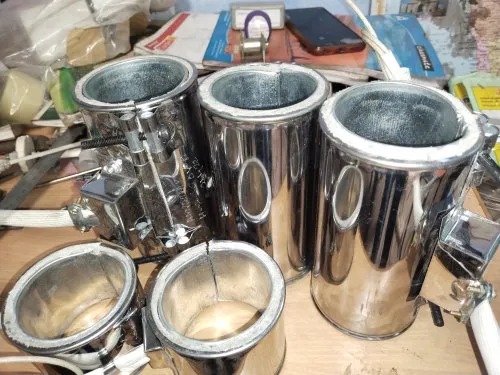

A mica band heater utilizes a high-grade nickel-chromium resistance ribbon wrapped around specially designed mica insulation layers. Encased in a durable metal sheath, the assembly transfers heat directly through contact conduction to cylindrical process surfaces. Integrated clamping mechanisms ensure maximum surface contact, preventing thermal hot spots and reducing power loss. Internal insulation prevents outward heat dissipation, allowing the system to achieve target operating temperatures quickly. Built-in terminal options accommodate high amperage electrical connections while protecting internal wiring against oil, moisture, and mechanical strain. Overall, it lowers power operational overheads while prolonging the working life of heavy thermal processing machinery.
| Key Attributes | |
|---|---|
| Sheath Material | Stainless Steel / Aluminized Steel |
| Insulation Material | High-Grade Mica Sheet |
| Max Operating Temperature | Up to 480°C |
| Watt Density | Up to 4.5 W/cm² |
| Input Voltage | 120V / 230V / 415V AC |
| Clamping / Mounting | Latch Lock / Barrel Bolt Clamps |
| Termination Options | Screw Terminals / Lead Wires / Plug Socket |
| Additional Information | |
|---|---|
| Country of Origin | India |
Delivers continuous barrel heating for plastic injection molding machines and extrusion lines.
Provides controlled thermal energy to blow molding equipment nozzles and barrel manifolds.
Maintains liquid viscosity by heating industrial transfer pipes, valves, and cylindrical vessels.
Powers thermal sealing jaws and heating stations on automated flexible packaging machinery.
Supplies controlled heat for rubber processing equipment, vulcanizing presses, and die heads.
| Available Stock | In Stock |
| Sample Availability | No |
| Payment Terms |
|
Tamil Nadu, IndiaIt uses direct conductive contact, transferring heat from its internal resistance ribbon through a metal sheath to the surface it clamps onto.
High-grade mica band heaters typically operate safely at temperatures up to 480°C.
Proper clamping eliminates air gaps between the heater sheath and the barrel surface, preventing hot spots and premature element failure.
Stainless steel and aluminized steel are widely used to resist oxidation, corrosion, and high thermal stress.
Yes, they can be fabricated with custom diameters, widths, holes, and cutouts to fit specific machine nozzles and barrels.
