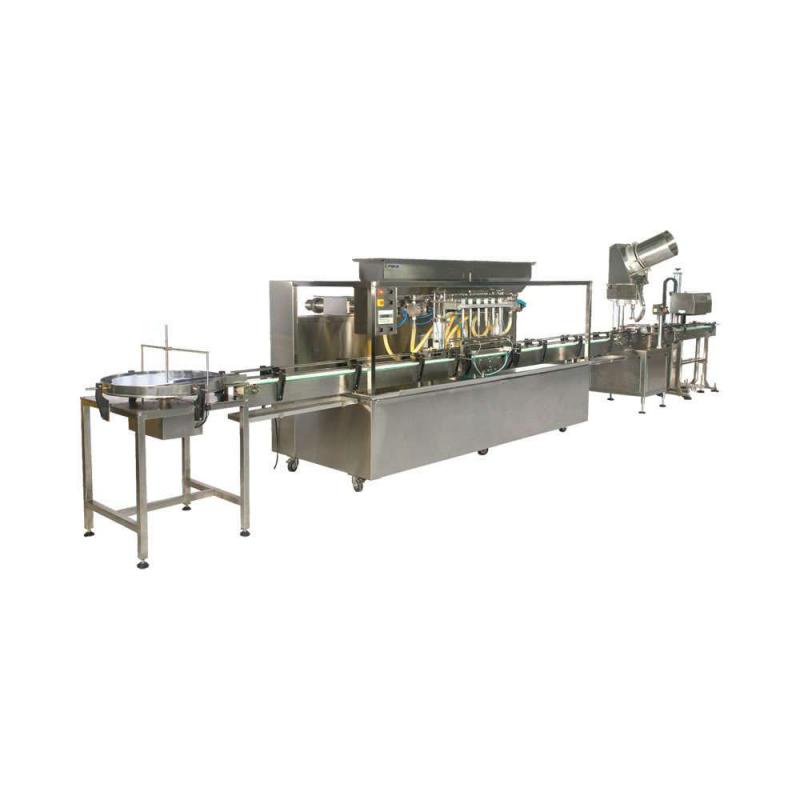

Liquid Filling Line
Complete packaging solution designed for accurate, efficient, and hygienic filling of liquids into bottles or containers. Ideal for industries like food & beverage, pharmaceuticals, cosmetics, and chemicals, this system ensures fast .
- Payment TermsCredit Card,Cash,Cheque,Demand Draft
Product Details
Model No
IP-MLF-60 (SS-304)Filling Heads
2 / 4 / 6 / 8 / 10 HeadsOutput/Min
40 to 60 BPM Depends upon number of filling head, volume and nature flow of LiquidPower Characteristics
3 ∅ / 415V / N,PE / 50Hz / 4 wire or 1 ∅ / 204V / 50Hz / 3 Wire SystemAir
8 to 10 cfm (Customer scope)Filling System
Piston filling with pneumatic and L port ball ValveFill Range
200 ml, 500ml, 1000ml with half of chage partsFilling Accuracy
± 5 to 1 % Filling accuracy on single dose Depends of the nature of Liquid.Tank Storage Capacity
Overhead tank of 100 to 120 lit. CapacityMachine Construction
Stainless steel SS-304Net Weight
1080 kgsMachine Dimension
2640mm X 1100mm X 2100mm
Product Application
- Ghee, Oil, Adhesives, Motor oil, Epoxy, Resins, Paint, Ink
- Butter & Margarine
- Cold Cream, Shampoos & Conditioners, Nail Polish, Ointments, Fungicides
- Cheeses, Yogurt
- Salad Dressings, Sauces, Oils
- Ketchup & Mustard, Relishes
- Jams & Jellies, Peanut Butter, Honey
- Cordials, Desserts, Dough, Extracts,
- Fruit Salad, Mashed Potatoes, Pate, Soups & Stews, Burrito Mix
Technical Specifications
- Dual lane option available to increase production by 100 % while preserving valuable line space.
- Precision bored, heavy-walled metering cylinders dispense product at accuracies up to +/- 0.5 %
- All product contact parts constructed of stainless steel?food-grade platsic for operations or use with corrosive materials.
- Available with motorized conveyor and indexing package for integrated container handing and positioning.
- No Container/No Fill feature detects missing or mis-positioned container to pervent waste and product spillage.
- Unique variable, separate speed control and actuator of a dual-stage fill provides precise “no soill” control for top-off applications or filling difficult products.
- Versatile Programmable Logic Controller (PLC) ensures reliable, repeatable control with minimal operator intervention.
