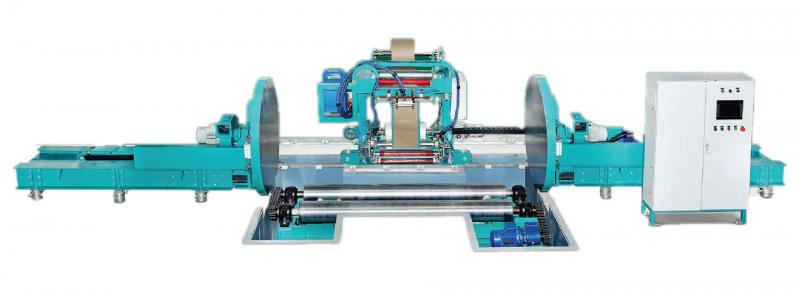

Reel Wrapping Machine

1
Be the first to review

A Reel Wrapping Machine is a specialized packaging system used to wrap stretch film or other packaging material around cylindrical items like paper rolls, film rolls, fabric rolls, wire coils, or other similar products.

  • Payment Terms
    Credit Card,Cash,Cheque,Demand Draft
  • Share:
Request for Quote

Product Details

  • Paper roll diameter

    700 – 1200mm

  • Paper roll width

    400 – 1600mm

  • Roll Max weight

    900kgs

  • Over all Power

    16 to 20Kw

  • Max. kraft roll diameter

    800mm

  • Max. kraft roll width

    300mm – 500mm

  • Max. film roll diameter

    400mm

  • Max. film roll width

    400mm – 500mm

  • Power supply voltage

    415 Volt 3Ph – 50 Hz

  • Kraft/Film thickness

    80gsm – 140gsm & 17-35 ξm

  • Kraft/Film Carriage

    Powered-stretch film carriage, stretch ratio up to 150% carriage roller opens for effortless roll change & thread film. Film tension adjustable

  • Packing Efficiency

    15-20 rolls/hour (7.5MT to 9 MT/hr)

  • Machine Size(L x W x H)

    7200mm x 3600mm x 1300mm/2000mm Approx.

  • Total Machine Weight

    3600kg apporx

Product Application

  • Stretch
  • Kraft
  • Hot Melt Gluing
  • Weighing

Technical Specifications

  • Fully automatic operation – Low man power requirements.
  • Spiral application : One width wraps all roll sizes, no more need for multiple back stands.
  • Separate application of pure Kraft Paper and PE-film = a fully separable, truly recyclable package.
  • Kraft wrapping paper of virtually any quality can be used, even off-spec or wastepaper.
  • High flexibility : Choose Kraft Paper or PE-film as the outer layer.
  • Open design – High accessibility for service and operation.
  • Very few moving parts – Minimal downtime for maintenance.
  • Film can be used to fold the Kraft down over the inner headers, optional or eliminating the need for outer headers, bottom crimping arms and heated side disc presses.
  • Advanced Hot melt gluing system fro high adhesion strength & Rapid drying and curing.
  • High acuuracy on line weighing interface system.
  • Automatic reel ejection system.
