Description

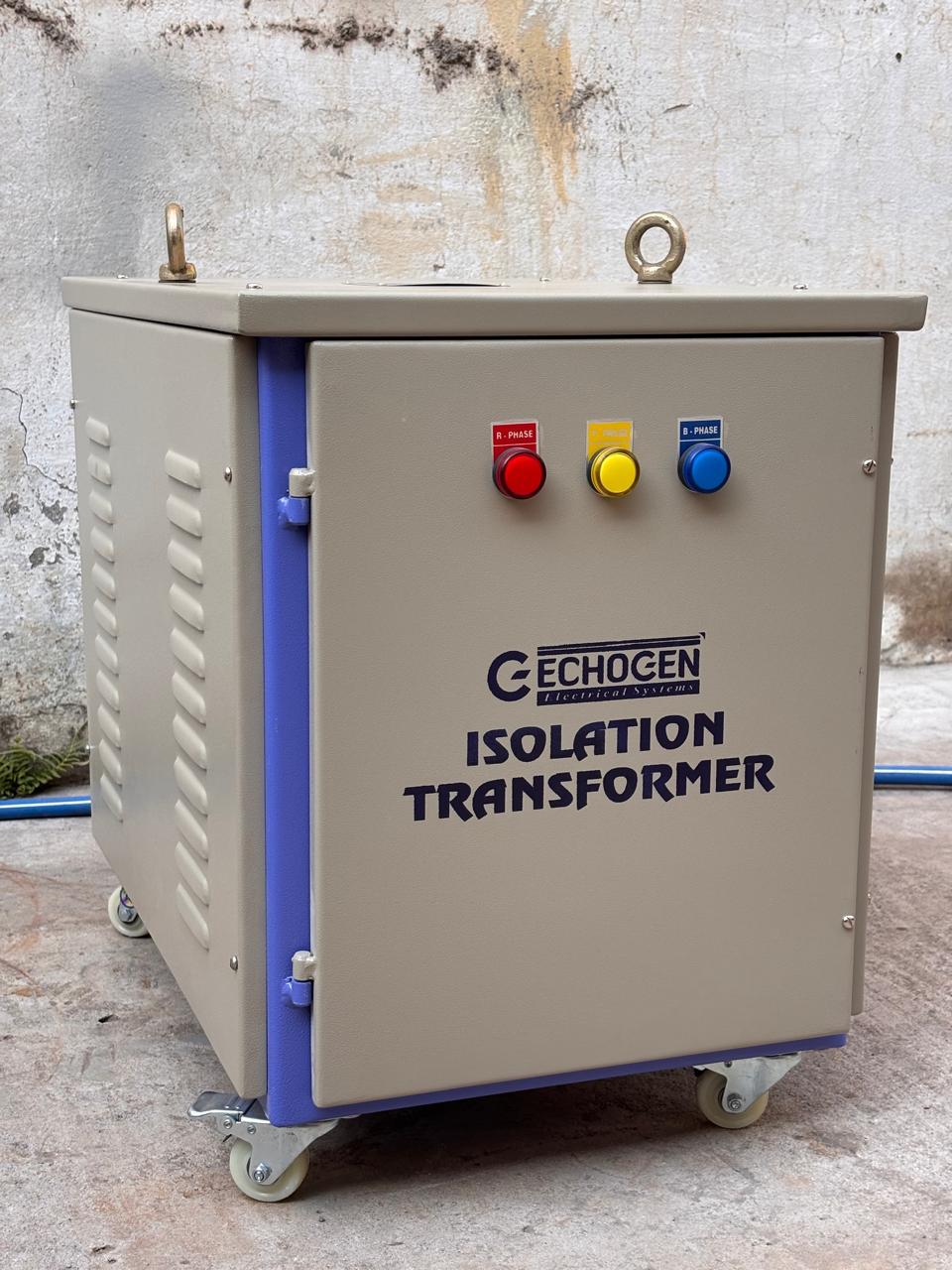

The Isolation Transformer is designed to provide reliable electrical isolation between the input and output power supply while protecting sensitive equipment from electrical disturbances. It helps reduce the effects of power-line problems such as noise, spikes, surges, transients and neutral disturbances. The transformer is available in 1 Phase and 3 Phase configurations, with capacities ranging from 1 KVA 1 Ph up to 50 KVA 1 Ph and 3 KVA 3 Ph up to 1500 KVA 3 Ph. It supports 1:1 and 2:1 ratios with Delta/Star system connections and offers high insulation resistance for enhanced electrical safety. The unit can be provided with Natural Air, Forced Air or optional Oil Cooling based on application requirements. It is suitable for sensitive and sophisticated electrical equipment where stable, clean and isolated power is essential.
Specifications
| Attribute | Value |
|---|---|
| Product Name | Isolation Transformers |
| Capacity Range | upto 1500 kVA 3 Ph |
| System Connections | Delta / Star |
| Input Voltage | 415V 3 Phase 50 Hz / 60 Hz |
| Output Voltage | 415V or 200V 3 Phase 50 Hz / 60Hz |
| Ratios | 1:1 and 2:1 |
| Regulation | Better than 3.5% |
| Power Factor | 0.75 Lead to 0.75 Lag |
| Di-electric Strength | 3KV for 60 sec |
| Insulation Resistance | Better than 1000Mega Ohms |
| Coupling Capacitance | 0.1 PF for 80 db |
| Leakage Current | Less than 20 Micro Amps |
| Common Mode Attenuation | 80 db / 100 db |
| Construction Standards | As per IS 2026 Part I & II, IS 1171 |
| Type of Execution | Closed Type |
| Operating Temperature | 0°C to 45°C |
| Type of cooling | Natural Air / Forced air |
| 3 Phase Input / Output | 415 V AC 3 Ph |
| 3 Phase Output Option | 220 V AC 3 Ph |
| 3 Phase Rating Available | 3 KVA 3 ph and upto 1500 KVA |
| 1 Phase Input / Output | 230 V AC 1 Ph |
| 1 Phase Output Option | 110 V AC 1 Ph |
| Additional Information | |
|---|---|
| Country of Origin | India |
| Customisable | No |
Application
CNC Machines – Provides clean and isolated power for precision CNC equipment.
Printing Machinery – Protects printing machines from noise, spikes and electrical transients.
Textile Machinery – Ensures stable power supply for textile production equipment.
Biomedical Equipment – Supports safe and reliable operation of sensitive medical equipment.
Scientific Equipment – Provides isolated, clean power for sensitive scientific instruments.
Cell Phone Networks – Helps maintain reliable power for telecom and network systems.
Oil & Vanaspati Plants – Protects industrial machinery from power-line disturbances.
Company Profile
Echogen Electrical Systems, Telangana
5 yrs
Manufacturer
Turn Over
₹1 Crore – ₹5 Crore
Factory Details
Factory SizeBelow 1000 sqm
Contract ManufacturingOEM Service
No. of QC Staff1
No. of R&D Staff2
Frequently Asked Questions
1
What is an Isolation Transformer?
An Isolation Transformer provides electrical isolation between the input and output supply and helps protect sensitive equipment from electrical disturbances.
2
What is the maximum capacity available?
The transformer is available up to 1500 KVA 3 Ph for 3 Phase applications.
3
What input voltage does the transformer support?
The 3 Phase model supports 415V 3 Phase 50 Hz / 60 Hz, while the 1 Phase model supports 230V AC 1 Ph.
4
What are the available transformer ratios?
The transformer is available with 1:1 and 2:1 ratios.
5
What type of cooling is provided?
Cooling options include Natural Air / Forced Air, with Oil Cooled available as an optional configuration.
