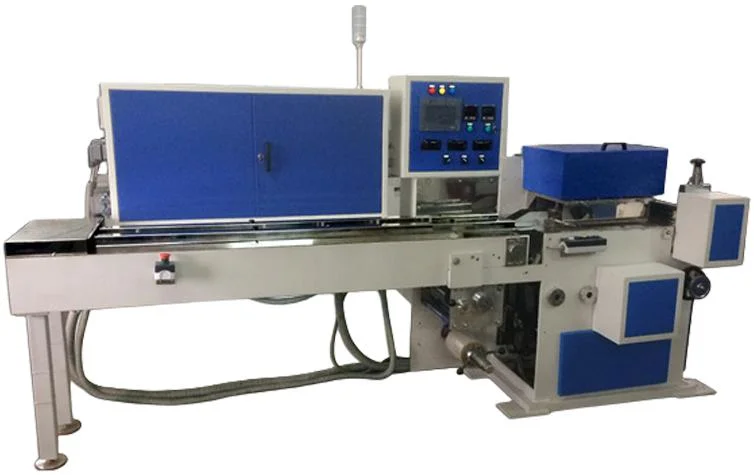

The Horizontal Flow Wrap Machine for Solid Product Packaging is an electro-mechanical packaging solution engineered for reliability and straightforward operation. Featuring a manua...

The Horizontal Flow Wrap Machine for Solid Product Packaging is an electro-mechanical packaging solution engineered for reliability and straightforward operation. Featuring a manual feeding system, it provides operators with direct control for precise placement of products onto the film web. This machine expertly creates a secure pillow type center seal wrap, accommodating a versatile range of product sizes—from 30mm to 100mm in width, 30mm to 150mm in length, and 5mm to 50mm in height. It is compatible with all common heat-sealable laminated films, including BOPP, LD polyester, and aluminum foil, allowing you to choose the right material for product protection. Built for stability with a weight of approximately 500kg, its robust design ensures consistent performance in demanding production settings, delivering outputs from 20 to 80 packs per minute based on product dimensions.

This flow wrap machine is a vital asset across multiple industries where product integrity and presentation are paramount. In the food sector, it is extensively used for wrapping confectionery, baked goods, snack bars, and dried fruits, providing airtight seals that lock in freshness and prevent staleness. Pharmaceutical and nutraceutical manufacturers rely on it for the secure, tamper-evident packaging of tablets, capsules, and health supplements, ensuring patient safety and compliance. Beyond consumables, its application extends to wrapping small non-food items like soap bars, candles, and hardware components, offering a clean, professional finish. Its adaptability to different film types makes it suitable for operations requiring specific barrier properties, from simple moisture resistance to complete light and oxygen barrier protection.

The business value of this machine is rooted in its operational efficiency, durability, and cost-effectiveness. The electro-mechanical system offers a dependable alternative to fully automated lines, reducing complexity and maintenance needs while the manual feeding allows for careful handling of diverse product shapes. With a power consumption of just 2kw and a 1/2 HP three-phase motor, it delivers energy-efficient performance, helping to control long-term operating expenses. The consistent heat sealing, powered by a 1400-watt heater, ensures package integrity batch after batch, minimizing waste from seal failures. This reliability translates directly into reduced downtime and consistent output quality, providing a strong return on investment through improved production flow, enhanced product protection, and the flexibility to adapt to various packaging requirements without major retooling.

Key Features:
- Electro-mechanical operation powered by a reliable 1/2 HP, three-phase 440V, 50Hz motor for consistent performance.
- Manual feeding system providing operator oversight and control for precise product placement.
- Pillow type centre seal packaging style that creates uniform, secure, and tamper-evident wraps.
- Handles a wide product size range: Width 30-100mm, Length 30-150mm, Height 5-50mm.
- Compatible with all types of heat-sealable laminated films, including BOPP, LD Polyester, and Aluminum Foil.

Benefits:
- Delivers a flexible production output of approximately 20 to 80 packs per minute, adaptable to product size.
- Energy-efficient design with 2kw total power consumption, reducing operational energy costs.
- Robust and stable construction with a machine weight of approximately 500kg for durability in industrial environments.
- Versatile film compatibility allows businesses to use cost-effective or specialized materials as needed.
- Reliable heat sealing ensured by a 220V, 1400-watt heater system for consistent package integrity and reduced waste.
