Description

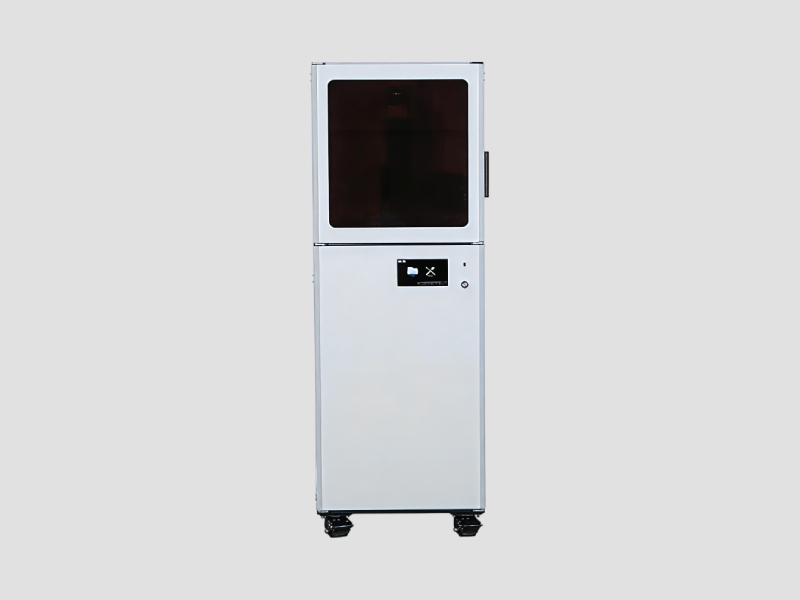

The Prism HR35 Ceramic 3D Printer is a professional 4K DLP additive manufacturing system developed for high-precision ceramic slurry printing. Designed with a 35 μm XY resolution and a build volume of 133 × 76 × 100 mm, it produces detailed ceramic components with excellent dimensional accuracy. The printer supports advanced ceramic materials including alumina, zirconia, silicon nitride, silicon carbide, tricalcium phosphate (TCP), hydroxyapatite (HA), and bioglass. Equipped with a 405 nm UV LED light source, adjustable exposure parameters, heated material tank, and PRISM MASTER software, it is suitable for research laboratories, universities, biomedical engineering, dental material development, and industrial ceramic manufacturing.
Specifications
| Attribute | Value |
|---|---|
| Model | Prism HR35 |
| Printing Technology | 4K DLP |
| Forming Method | Upside-Down Pull-Up Molding |
| Printing Material | Ceramic Slurry (Al₂O₃, ZrO₂, AlN, SiO₂, Si₃N₄, SiC, TCP, HA, Bioglass) |
| Build Volume | 133 × 76 × 100 mm |
| XY Resolution | 35 μm |
| Pixel Resolution | 3840 × 2160 Pixels |
| Layer Thickness | 10–100 μm |
| Light Source | 405 nm UV LED |
| Light Uniformity | Greater Than 95% |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
| Customisable | No |
Application
Precision ceramic component manufacturing
Zirconia dental model production
Alumina ceramic prototyping
Biomedical material research
Advanced ceramic material development
University and laboratory research
Industrial ceramic part manufacturing
Trade Details
| Production Lead Time | 4-7 Days |
| Available Stock | In Stock |
| Sample Availability | No |
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Port of Dispatch | ||
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | ||
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RP3D Products LLP, Karnataka
5 yrs
Manufacturer
Turn Over
₹5 Crore – ₹10 Crore
Factory Details
Factory SizeAbove 5000 sqm
Contract ManufacturingOEM Service
Frequently Asked Questions
1
What is the maximum print size of the Prism HR35 Ceramic 3D Printer?
The maximum print size for the Prism HR35 Ceramic 3D Printer is 350 x 350 x 400 mm.
2
What materials can I use with the Prism HR35?
The Prism HR35 is designed to work primarily with ceramic materials, including various clays and specialty ceramics.
3
Is there a warranty included with the purchase of this printer?
Yes, the Prism HR35 comes with a one-year manufacturer warranty covering parts and defects.
4
What types of payment do you accept for purchasing this printer?
We accept payments via cheque, demand draft, and credit card for your convenience.
5
Does this printer require any special installation or setup procedures?
While setup is straightforward, we recommend following the user manual carefully and ensuring proper calibration before first use.
SKU: 1
Prism HR35 Ceramic 3D Printers
Discover high-quality Prism HR35 Ceramic 3D Printer for precision ceramic and biomaterial printing. Ideal for zirconia, alumina, ceramic slurry, biomedical research, and industrial manufacturing. Features advanced 4K DLP technology, 35 μm XY resolution, high printing accuracy, and reliable ceramic material processing.
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
RP3D Products LLP
Karnataka, India
Manufacturer
