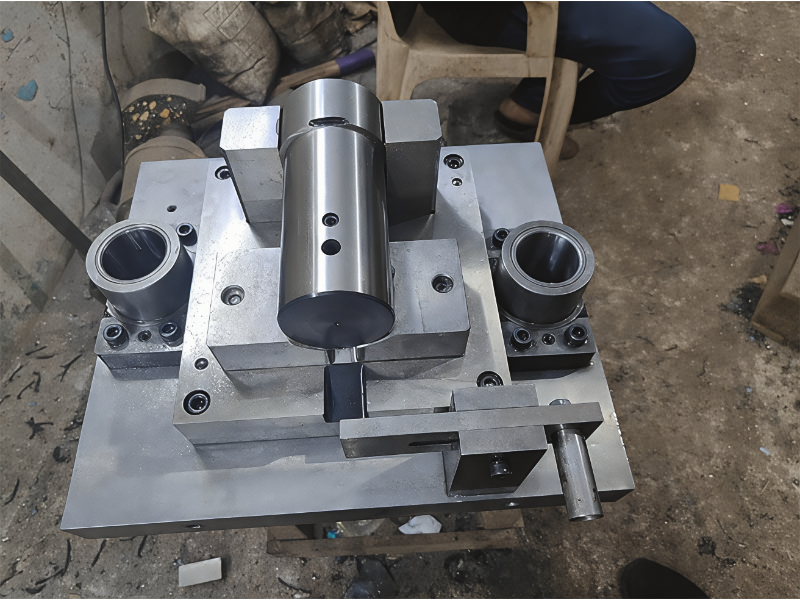

The Precision Machining Fixture is an essential workholding device designed to enhance the accuracy and efficiency of machining operations in industrial environments. Engineered for durability and precision, this fixture ensures stability during manufacturing processes, minimizing vibration and misalignment.
• Constructed from high-strength steel with a finish that resists wear and corrosion.
• Features a rectangular base plate measuring approximately 300 mm x 200 mm for stable support during machining tasks.
• Equipped with a centrally mounted cylindrical shaft designed to securely hold various components, optimally sized at 50 mm in diameter.
• Includes adjustable guide sleeves on either side to facilitate precise alignment of workpieces, accommodating standard sizes ranging from 10 mm to 100 mm in width.
This fixture is suitable for various commercial applications where precision manufacturing is critical. Its robust design makes it ideal for procurement by machine shops looking for reliable solutions. Variants may include different base plate dimensions or shaft diameters based on specific customer needs.
